Low Voltage 24V 48V Dc Brushless Servo Motor 80mm
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | ES80 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Servo Motor | Rated Voltage | 24V Or 48V |
|---|---|---|---|
| Rated Power | 750W Or 1000W | Rated Current | 25A-40A |
| Rated Speed | 3000 RPM | Rated Torque | 2.38N.M Or 3.2N.M |
| Maximum Torque | 7.14N.M Or 9.6N.M | Insulation Class | F |
| Protection Level | IP65 | Temperature | -20℃~+55℃ |
| High Light | 24V Dc Brushless Servo Motor,Dc Brushless Servo Motor 80mm,3000RPM BLDC Servo Motor | ||
Product Description
Low Voltage Servo Motor 24V 48V Dc Brushless Servo Motor 80mm
A servo motor is composed of:
An electric motor: That is in charge of generating the motion through its shaft.
A control system: This system allows for control over the motor’s motion by sending electric pulses.
A drive system: It is formed by gears which may increase or decrease the speed and torque.
A potentiometer: It is connected to the central shaft, and informs at all times the angle in which the motor’s shaft is positioned.
Electrical Specification Of Servo Motor
24V Servo Motor
Rated Voltage(V) | 24 |
Rated Power(W) | 750 |
Model | ES8005K-75S30M1 |
Rated Current(Amps) | 40 |
Rated Speed(RPM) | 3000 |
Rated Torque(N.M) | 2.38 |
Maximum Torque(N.M) | 7.14 |
Torque Constant(N.M/Amps) | 0.057 |
Rotor Moment Of Inertia(Kg.cm2) | 1.51*10-4 |
Resistance Line-line(Ω) | 0.03 |
Inductance Line-line(mH) | 0.20 |
48V Servo Motor
Rated Voltage(V) | 48 | |
Rated Power(W) | 750 | 1000 |
Model | ES8005G-75S30A1 ES8005G-75S30B2 | ES8005G-100S30A1 ES8005G-100S30B2-002 |
Rated Current(Amps) | 25 | 33 |
Rated Speed(RPM) | 3000 | 3000 |
Rated Torque(N.M) | 2.4 | 3.2 |
Maximum Torque(N.M) | 7.2 | 9.6 |
Torque Constant(N.M/Amps) | 0.1 | 0.115 |
Rotor Moment Of Inertia(Kg.cm2) | 1.51*10-4 | 2.5*10-4 |
Resistance Line-line(Ω) | 0.07 | 0.03 |
Inductance Line-line(mH) | 0.60 | 0.30 |

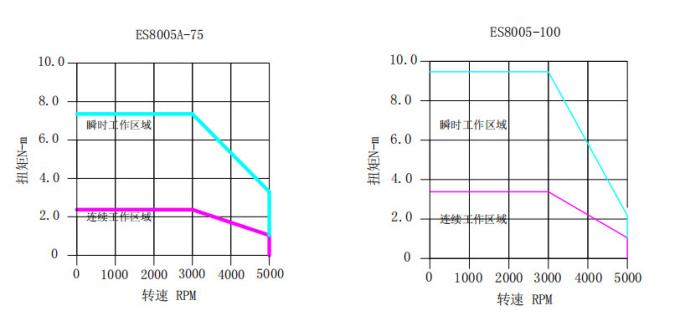

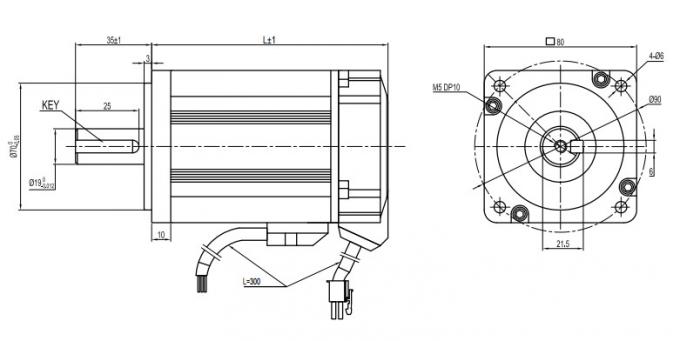

Length & Weight
Type | 80 | |||
Encoder | Power | |||
750W | 1000W | |||
Length (mm) | Single turn absolute value (Tamagawa) | No Brake | 125±1 | 140±1 |
With Brake | 163±1 | 178±1 | ||
Multi turn (Tamagawa) | No Brake | 141±1 | 156±1 | |
With Brake | 179±1 | 194±1 | ||
Incremental 2500ppr (Optical encoder) | No Brake | 141±1 | 156±1 | |
With Brake | 179±1 | 194±1 | ||
Rotary transformer | No Brake | 125±1 | 140±1 | |
With Brake | 163±1 | 178±1 | ||
Nikon multi turn absolute value | No Brake | 125±1 | 140±1 | |
With Brake | 163±1 | 178±1 | ||
Type | 80 | |||
Encoder | Power | |||
750W | 1000W | |||
Weight (kg) | Single turn absolute value (Tamagawa) | No Brake | 2.42 | 3.00 |
With Brake | 3.50 | 4.00 | ||
Multi turn (Tamagawa) | No Brake | 2.42 | 3.00 | |
| With Brake | 3.50 | 4.05 | ||
Incremental 2500ppr (Optical encoder) | No Brake | 2.43 | 3.00 | |
With Brake | 3.50 | 4.06 | ||
Rotary transformer | No Brake | 2.63 | 3.20 | |
With Brake | 3.70 | 4.27 | ||
Nikon multi turn absolute value | No Brake | 2.37 | 2.93 | |
With Brake | 3.43 | 4.00 | ||
Product Range Of TB-Motor
Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Servo Motor Of TB-Motor
Assembly Line Of Servo Motor
Laser Welding Machine
TB-Motor is aiming to provide high-quality, comprehensive after-sales service. Strive for continuous improvement and excellence. If you have any questions, you will be on duty 24 hours a day, so you have no worries.
Looking forward to the future, we will work hard to create with a good attitude and serious attitude, meet the challenges of modern high-tech, and continue to expand our business areas to share the achievements of automation technology with more customers!
Patent Certificate Of TB-Motor
