Micro 0.9 Stepper Motor 34mm 12v 0.22nm 200 oz in 42BYGHM228 03A
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 42BYGHM228-03A |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepping Motor | Step Accuracy | ± 5% |
|---|---|---|---|
| Dielectric Strength | 500VAC 1 Minute | Insulation Resistance | 100MΩ Min.500VC DC |
| Ambient Temperature | -20℃~+50℃ | Temperature Rise | 80 ℃ Max |
| Max Radial Force | 28N (20mm From Front Flange) | Max Axial Force | 10N |
| High Light | Micro 0.9 Stepper Motor,200 oz 2kg cm stepper motor,42BYGHM228 | ||
Product Description
High output 42BYGHM228-03A 0.9 degree hybrid 34mm micro stepper motor
Advantages:
1. The rotation angle of the motor is proportional to the input pulse.
2. The motor has full torque at stand still(if the windings are energized)
3. Precise positioning and repeatabilityof movement since good stepper motors have an accuracy of 3 – 5% of a step and this error is non cumulative from one step to the next.
4. Excellent response to starting/stopping/reversing.
5. Very reliable since there are no contact brushes in the motor. Therefore the life of the motor is simply dependant on the life of the bearing.
6. The motors response to digital input pulses provides open-loop control, making the motor simpler and less
Electrical Specification:
Model Number | 42BYGHM228-03A |
Step Accuracy | ± 5% |
Step Angle | 0.9° |
Lead Wire | 4 |
Voltage (V) | 12 |
Current (A/Phase) | 0.4 |
Holding Torque (N.m) | 0.22 |
| Resistance (Ω/phase) | 30 |
| Inductance (mH/phase) | 0.4 |
| Motor length (MM) | 34 |
| Motr Weight(K/g) | 0.2 |
| Insulation Class | B |
Specification of Other Models:
| MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (G.CM) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 42BYGHM203 | 0.9 | 4 | 10 | 0.5 | 20 | 40 | 2100 | 34 | 0.20 |
| 42BYGHM213-07A | 0.9 | 4 | 8 | 1 | 8.0 | 13 | 2200 | 34 | 0.20 |
| 42BYGHM607-16 | 0.9 | 4 | 2.6 | 1.7 | 1.5 | 3.2 | 3200 | 40 | 0.24 |
| 42BYGHM619-08 | 0.9 | 4 | 11.2 | 0.4 | 28 | 60 | 2800 | 40 | 0.24 |
| 42BYGHM805 | 0.9 | 4 | 3.5 | 1 | 3.5 | 7.6 | 3700 | 48 | 0.34 |
| 42BYGHM810 | 0.9 | 4 | 2.4 | 2.4 | 1.0 | 1.8 | 4800 | 48 | 0.34 |
*Products can be customized by special request.
When it comes to quality aspect, TB-Motor was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by many customers.

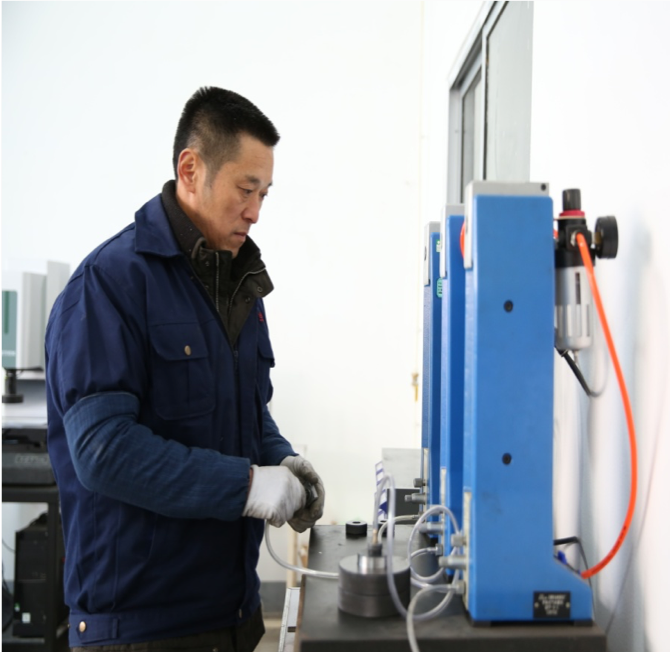

TB-Motor is also proud of its research and develop strength. With the support of professional laboratory and experienced technicians, TB-Motor gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.
