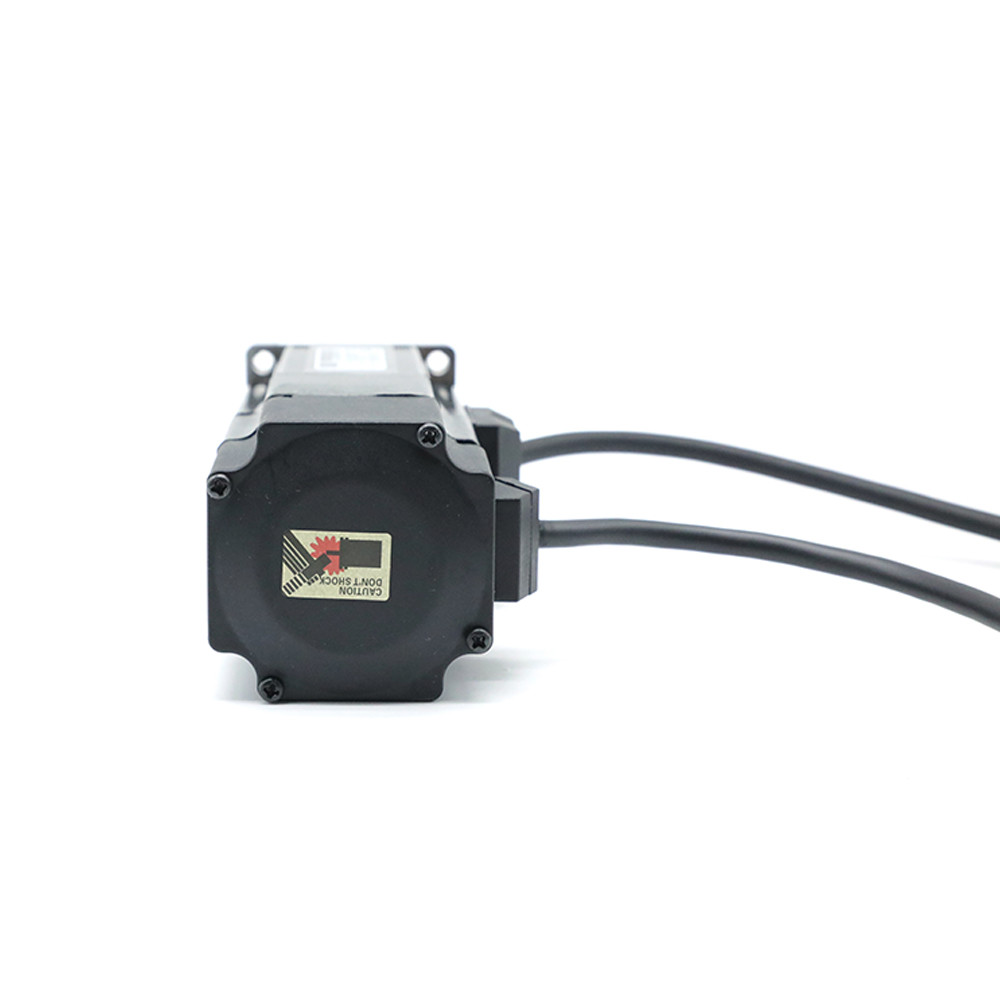

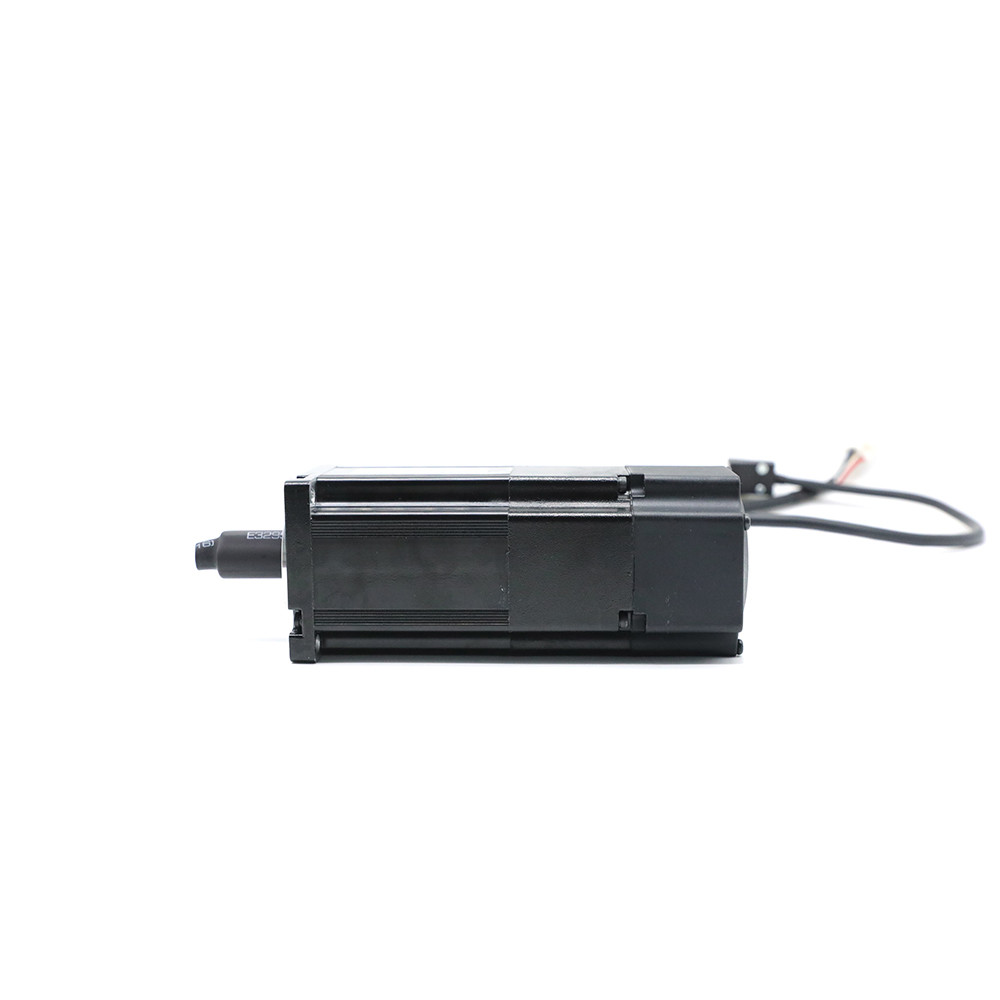

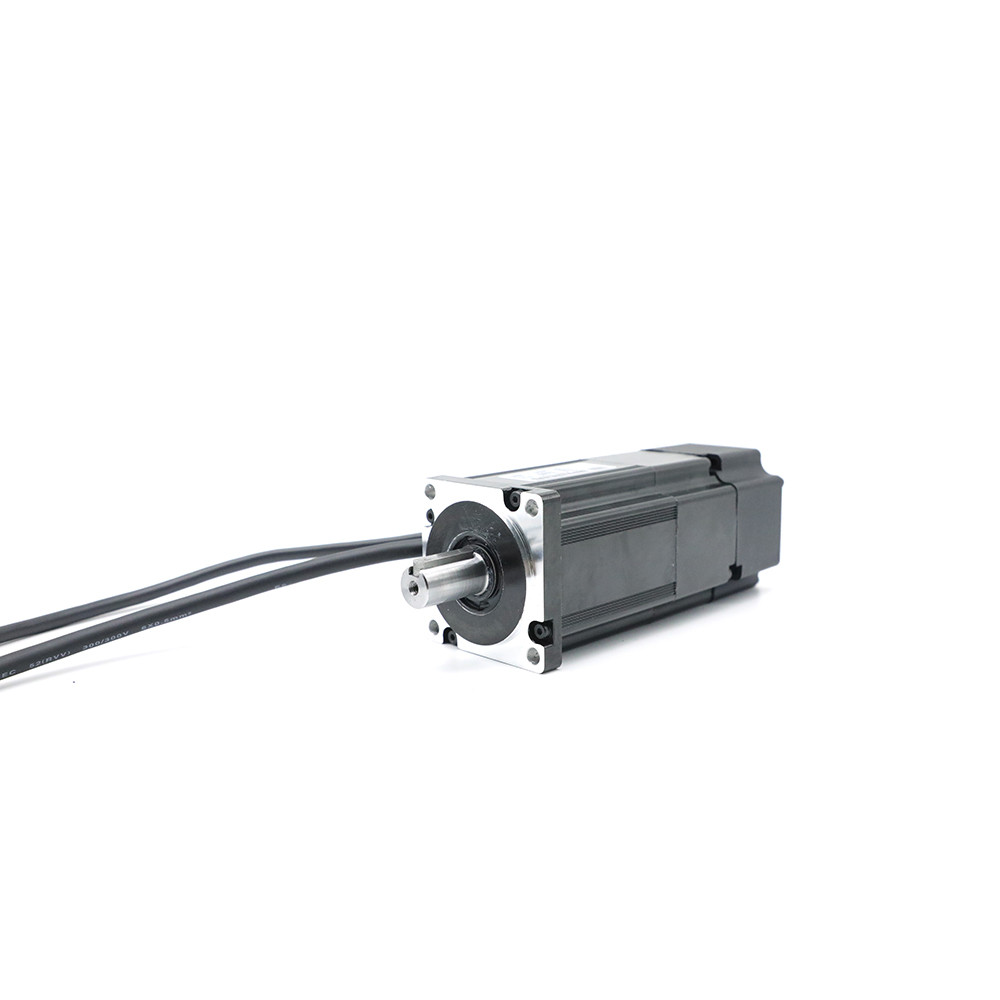

Micro Dc Servo Motor 3000 Rpm 250w 200w 300w 350w 400W Micro Servo Motor factory direct supply low price
The role of servo motors: Servo motors play an important role in the composition of automation equipment. The servo motor can convert the voltage signal into torque and speed to drive the control object, can control the speed, and the position accuracy is very accurate. The rotor speed of the motor is controlled by the input signal and can respond quickly. In the automatic control system, it is used as an executive element, and has the characteristics of small electromechanical time constant, high linearity, and starting voltage, which can convert the received electrical signal. into the angular displacement or angular velocity output on the motor shaft.
| Model ES 60 High Voltage |
| Rated Power | Rated Voltage | Rated Current | Rated Speed | Rated Torque |
| 200W | 310V | 2.65A | 3000RPM | 1.27N.m |
| 400W | 1.6A | 3000RPM | 0.64N.m |
| Model ES 60 Low Voltage |
| Rated Power | Rated Voltage | Rated Current | Rated Speed | Rated Torque |
| 200W | 36V | 9A | 3000RPM | 0.64N.m |
| 400W | 48V | 12A | 3000RPM | 1.27N.m |
Electrical Specification
| MODEL | ES6004A-40S30B2 | ES6005A-20D30A2 | ES6004H-20S30B1 Low voltage | ES6004G-40S30B1 Low voltage |
| RATED POWER (WATTS) | 400 | 200 | 200 | 400 |
| RATED VOLTAGE | 310 | 310 | 36 | 48 |
| RATED CURRENT (A) | 2.65 | 1.6 | 9 | 12 |
| RATED SPEED (RPM) | 3000 | 3000 | 3000 | 3000 |
| RATED TORQUE (N.M) | 1.27 | 0.64 | 0.64 | 1.27 |
| PEAK TORQUE (N.M) | 3.81 | 1.9 | 1.92 | 3.81 |
| BACK EMF CONSTANT (V/KRPM) | 32 | 32 | – | – |
| TORQUE COEFFICIENT (N.M/AMPS) | 0.48 | 0.45 | – | – |
| ROTOR INERTIA (KG.CM2) | 0.67 | 0.42 | 0.32 | 0.45 |
| LINE-LINE RESISTANCE (Ω) | 3.5 | 8.8 | 0.25 | 0.29 |
| LINE-LINE INDUCTANCE (MH) | 8.0 | 24.0 | 0.5 | 0.65 |
| MECHANICAL TIME-CONSTANT (MS) | 1.3 | 1.3 | 1.3 | 1.3 |
| MODEL | ES6004A-40S30B1 | ES6004A-40S30L1 | ES6004A-40S30L2 | ES6004A-40S30A1 |
| RATED POWER (WATTS) | 400 | 400 | 400 | 400 |
| RATED VOLTAGE | 310 | 310 | 310 | 310 |
| RATED CURRENT (A) | 2.65 | 2.65 | 2.65 | 2.65 |
| RATED SPEED (RPM) | 3000 | 3000 | 3000 | 3000 |
| RATED TORQUE (N.M) | 1.27 | 1.27 | 1.27 | 1.27 |
| PEAK TORQUE (N.M) | 3.81 | 3.81 | 3.81 | 3.81 |
| BACK EMF CONSTANT (V/KRPM) | 32 | 32 | 32 | 32 |
| TORQUE COEFFICIENT (N.M/AMPS) | 0.48 | 0.48 | 0.48 | 0.48 |
| ROTOR INERTIA (KG.CM2) | 0.67 | 0.67 | 0.67 | 0.67 |
| LINE-LINE RESISTANCE (Ω) | 3.5 | 3.7 | 3.7 | 3.7 |
| LINE-LINE INDUCTANCE (MH) | 8.0 | 12.0 | 12.0 | 12.0 |
| MECHANICAL TIME-CONSTANT (MS) | 1.3 | 1.3 | 1.3 | 1.3 |
| MODEL | ES6005A-20D30L1 | ES6005A-20D30L2 | ES6005A-20D30A1 | ES6005A-20D30A2 | ES6004A-20S30N1-T | ES6004A-20S30N2-T |
| RATED POWER (WATTS) | 200 | 200 | 200 | 200 | 200 | 200 |
| RATED VOLTAGE | 310 | 310 | 310 | 310 | 310 | 310 |
| RATED CURRENT (A) | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 |
| RATED SPEED (RPM) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| RATED TORQUE (N.M) | 0.64 | 0.64 | 0.64 | 0.64 | 0.64 | 0.64 |
| PEAK TORQUE (N.M) | 1.92 | 1.92 | 1.92 | 1.92 | 1.92 | 1.92 |
| BACK EMF CONSTANT (V/KRPM) | 32 | 32 | 32 | 32 | 32 | 32 |
| TORQUE COEFFICIENT (N.M/AMPS) | 0.45 | 0.45 | 0.45 | 0.45 | 0.45 | 0.45 |
| ROTOR INERTIA (KG.CM2) | 0.42 | 0.42 | 0.42 | 0.42 | 0.42 | 0.42 |
| LINE-LINE RESISTANCE (Ω) | 8.8 | 8.8 | 8.8 | 8.8 | 8.8 | 8.8 |
| LINE-LINE INDUCTANCE (MH) | 24.0 | 24.0 | 24.0 | 24.0 | 24.0 | 24.0 |
| MECHANICAL TIME-CONSTANT (MS) | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 |
Note: The products can be customized by your request. Please contact us for more details.
The servo motor is most commonly used for high technology devices in industrial applications like automation technology. It is a self-contained electrical device, that rotates parts of the machine with high efficiency and great precision. Moreover, the output shaft of this motor can be moved to a particular angle. Servo motors are mainly used in home electronics, toys, cars, aeroplanes and many more devices.
With Brake
| PIN | FUNCTION | COLOUR |
| 1 | U | Red |
| 2 | V | White |
| 3 | W | Black |
| 4 | G | Yellow/Green |
| 5 | Brake | Yellow |
| 6 | Brake | Blue |
| PIN | FUNCTION | COLOUR |
| 1 | OV | Black |
| 2 | / |
| 3 | SD+ | Blue |
| 4 | +5V | Red |
| 5 | BAY- | Brown/Black |
| 6 | BAT+ | Brown |
| 7 | SD- | Blue/Black |
| 8 | / |
| 9 | GND | Grey(Shield) |
| Type | 60 |
| Power | 200W | 400W |
| Encoder |
| Weight
(Kg) | A | 1.64 | 1.85 |
| B | | 1.80 |
| L | 1.47 | 1.86 |
| N | 1.23 | |
| Type | 60 |
| Power | 200W | 400W |
| Encoder |

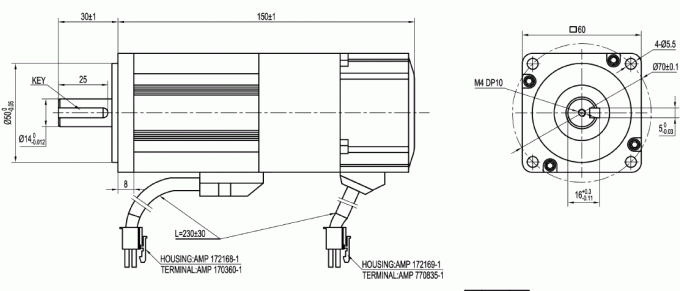

L
(mm) | A | 135 | 155 |
| B | | 169 |
| L | 150 | 170 |
| N | 133 | |
A= tamagawa single-turn absolute value 17-bit encoder
B=incremental 2500ppr optical encoder
L=tamagawa multi-turn absolute value 17-bit encoder
N=Nikon multi-turn absolute value 24 bit
Without Brake
| PIN | FUNCTION | COLOUR |
| 1 | U | Red |
| 2 | V | White |
| 3 | W | Black |
| 4 | G | Yellow/Green |
| PIN | FUNCTION | COLOUR |
| 1 | Shield | NC |
| 2 | DC+5V | Red |
| 3 | GND | Black |
| 4 | B | Green |
| 5 | Z- | Yellow/white |
| 6 | U | Brown |
| 7 | Z | Yellow |
| 8 | U- | Brown/white |
| 9 | A | Grey |
| 10 | W | Orange |
| 11 | V | Blue |
| 12 | W- | Orange/white |
| 13 | A- | Grey/white |
| 14 | B- | Green/white |
| 15 | V- | Blue/white |

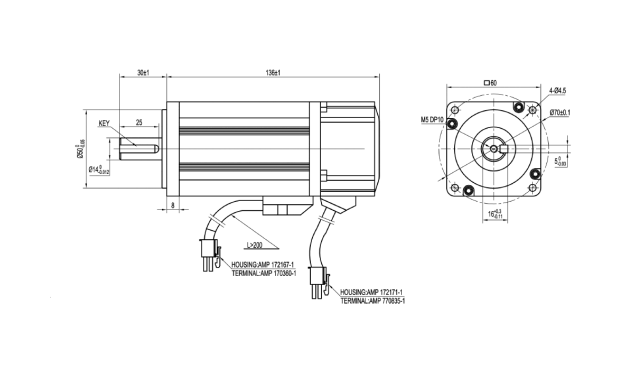

| Type | 60 |
| Power | 200W | 400W |
| Encoder |
L
(mm) | A | 101 | 121 |
| B | | 136 |
| L | 116 | 136 |
| N | 81 | |
| Type | 60 |
| Power | 200W | 400W |
| Encoder |
Weight
(Kg) | A | 0.98 | 1.28 |
| B | | 1.35 |
| L | 1.05 | 1.42 |
| N | 0.86 | |
Note: A, B, L, N refers to the different encoder.
A= tamagawa single-turn absolute value 17-bit encoder
B=incremental 2500ppr optical encoder
L=tamagawa multi-turn absolute value 17-bit encoder
N=Nikon multi-turn absolute value 24 bit
Experienced Servo Motor Supplier
Product Range Of TB-Motor
Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
High Quality Material
Stator Winding Machine
TB-Motor introduced a large number of professional equipment, which greatly improved the production efficiency.
CNC Center

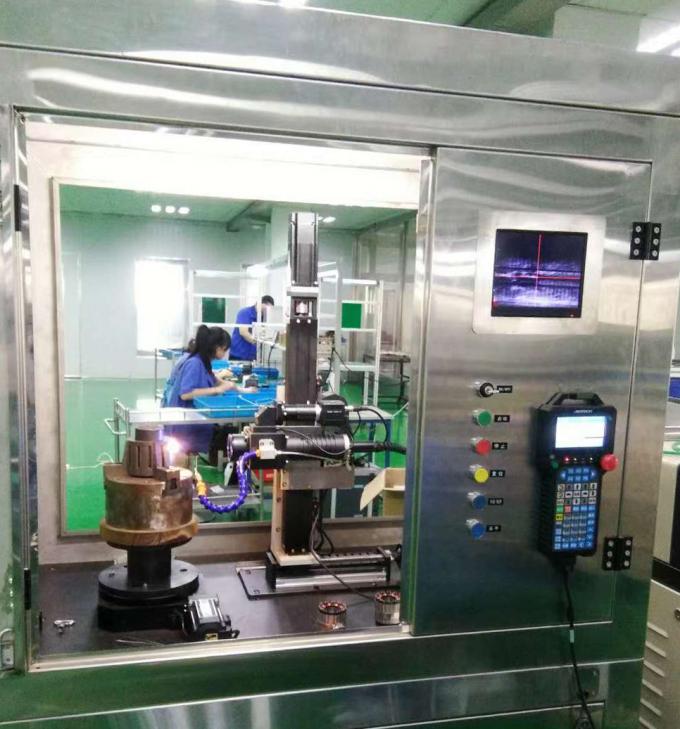

TB-Motor’s professional testing equipment
Packing&Delivery

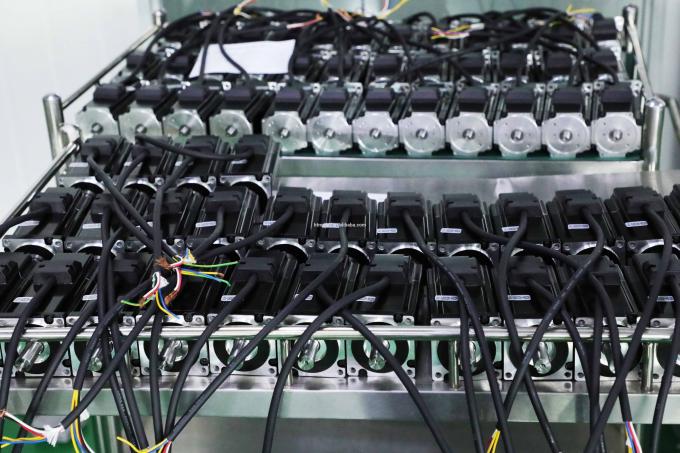

Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition.
