Micro Gearbox Stepper Motor 28mm 600 G Cm 0.05 nm 1.8 Degree 4.22 V 0.67A
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 28BYGH102-39AG6 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Stepping Gearbox Motor | RATED VOLTAGE | 4.22 V |
|---|---|---|---|
| Dielectric Strength | 500VAC 1 Minute | Step Accuracy | ± 5% |
| Temperature Rise | 80 ℃ Max | Insulation Resistance | 100MΩ Min.500VC DC |
| Ambient Temperature | -20℃~+50℃ | Radial Load(10mm From Flange) | ≤80N |
| Shaft Axial Load | ≤30N | HOLDING TORQUE | 600g.cm |
| High Light | micro stepper motor with gearbox 0.05 nm,Stepper Motor 600 G Cm 0.05 nm,small stepper motor with gearbox 0.05 nm | ||
Product Description
28BYGH102-39AG6 micro-compact in space 1.8 degree 0.67A low noise step gearbox motor
| Model | Size | Weight(g) | Phase | Current/phase | Voltage | Step Angle Accuracy |
| 28BYGH102-39AG6 | 28*28*60.5 mm | 215 | 2 | 0.67 | 3.9 | ±5% |
| 28BYGH507-02AG6 | 28*28*79.8 mm | 305 | 2 | 2 | 5.4 | ±5% |
A planetary gearbox, also known as an epicyclic gearbox, is one of the most important types of gearboxes available in the motion control territory. They are often used as an important part of automatic transmissions.
Electrical Specification
| 28BYGH102-39AG6 | ||
| STEP ANGLE | °/STEP | 1.8 |
| RATED VOLTAGE | V | 4.22 |
| CURRENT | A/PHASE | 0.67 |
| RESISTANCE | Ω/PHASE | 6.3 |
| INDUCTANCE | mH/PHASE | 3.2 |
| HOLDING TORQUE | g.cm | 600 |
| INSULATION CLASS | B | |
*Products can be customized by special request.
Wiring Diagram
GEARBOX PART Electrical Specification:
Out diameter 28mm
| Housing material | Bearing at output | Radial load(10mm from flange)N | Shaft axial load(N) | Shaft press-fit force max(N) | Radial play of shaft(mm) | Thrust play of shaft(mm) | Backlash at no-load (°) |
| Powder metallurgy | sleeve bearing | ≤80 | ≤30 | ≤200 | ≤0.03 | ≤0.4 | ≤1.5 |
| Reduction ratio | Rated tolerance torque (Nm) | Max momentary tolerance torque (Nm) | Efficiency% | Length (mm) | Weight(g) | Number of gear trains |
| 1/3 | 0.2 | 0.6 | 81% | 28.5 | 105 | 1 |
| 1/6 |

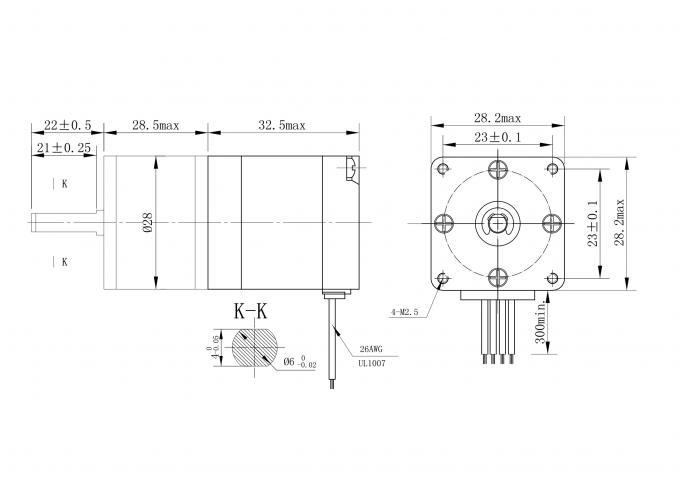

Mechanical Dimension
