Model 110BYGH99-001-10 hot selling 1.8 Step Angle 4 Lead 4.95V 5.5A 11.2N.M Nema42 110mm hybrid stepper motor

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	110BYGH99-001-10
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	28-31 DAYS
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000 PCS/MONTH

GET AN ESTIMATE NOW

Product Details

Product Name	Hybrid Stepper Motor	Step Angle	1.8 °
Rated Voltage	4.95V	Rated Current	5.5A
Resistance	0.9Ω	Holding Torque	11.2N.M
Lead Wire	4	Inductance	12.0 MH
Motor Height	99 Mm	Motor Weight	5.0 Kg

Product Description

Model 110BYGH99-001-10 hot selling 1.8 Step Angle 4 Lead 4.95V 5.5A 11.2N.M Nema42 110mm hybrid stepper motor

A stepper motor is a motor that converts electrical pulse signals into corresponding angular or linear displacements. Every time a pulse signal is input, the rotor rotates an angle or advances one step, the output angular displacement or linear displacement is proportional to the number of input pulses, and the rotational speed is proportional to the pulse frequency. Therefore, stepper motors are also called pulse motors.

Electrical Specification Of Hybrid Stepper Motor

Product Name	Hybrid Stepper Motor
Step Accuracy	± 5%
Dielectric Strength	500V AC 1minute
Ambient Temperature	-20℃~50℃
Insulation resistance	100MΩ Min.500VDC
Step Angle	1.8°
Lead wire	4
Voltage (V)	4.95
Current (A/Phase)	5.5
Holding Torque (N.M)	11.2

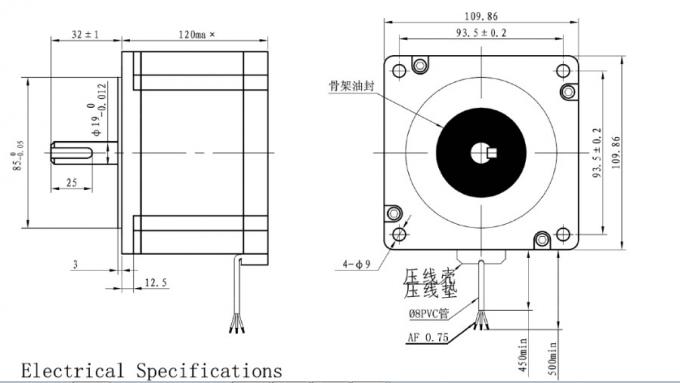

Mechanical Dimension Of Hybrid Stepper Motor

Experienced Manufacturer

Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Product Range Of TB-Motor

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.

Products Annual Capacity

Hybrid stepper motor 3 million units

Brushless DC motor 2 million units

Servo motor 0.05 million units

Gear 0.2 million units

Since the reorganization in 1998, it has formed a certain scale of production and sales, with an annual production of more than 3 million motors.
