NEMA 11 28BL Low Noise Brushless DC Motor Lightweight Bldc Motor 4.7W

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	28BL01F
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	28-31 DAYS
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000 PCS/MONTH

GET AN ESTIMATE NOW

Product Details

Product Name	Brushless DC Motor	No. Of Poles	4 Poles
No. Of Phase	3 Phase	Rated Voltage	12V
Rated Current	0.6A	Rated Speed	3000RPM
Rated Torque	0.015N.M	Rated Power	4.7W
Winding Type	Star	Insulation Class	B
High Light	4.7W Brushless DC Motor,NEMA 11 Brushless DC Motor,12V Lightweight Bldc Motor

Product Description

Factory price sale NEMA 11 28BL low noise light weight 4.7W Brushless DC Motor bldc motor

A brushless DC electric motor (BLDC motor or BL motor), also known as an electronically commutated motor (ECM or EC motor) or synchronous DC motor, is a synchronous motor using a direct current (DC) electric power supply. It uses an electronic controller to switch DC currents to the motor windings producing magnetic fields which effectively rotate in space and which the permanent magnet rotor follows. The controller adjusts the phase and amplitude of the DC current pulses to control the speed and torque of the motor. This control system is an alternative to the mechanical commutator (brushes) used in many conventional electric motors.

Electrical Specification Of Brushless DC Motor

Product Name:	Brushless Motor
Dielectric Strength:	500V AC 1minute
Ambient Temperature:	-20℃~50℃
Insulation resistance:	100MΩ Min.500V DC
Voltage(VDC):	12(VDC)
Power(W):	4.7
Rated Speed(RPM):	3000
Rated Torque(N.M):	0.015
Rated Current(A):	0.60

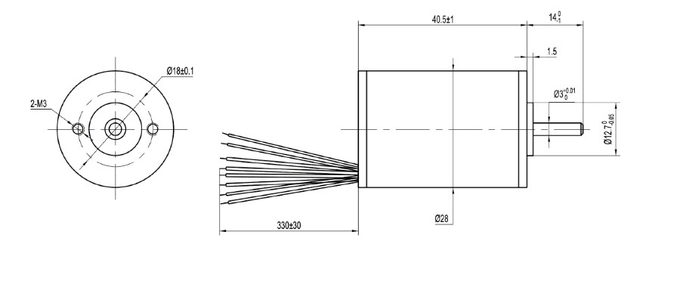

Mechanical Dimension Of Brushless DC Motor

Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Product Range Of TB-Motor

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.

CNC Center Of TB-Motor
