Nema 11 Dc Brush Gear Motor 28 MM*28 MM Low Noise 5000 RPM 24 V
Leave a Message
Product Details
| Product Name | DC Brush Gear Motor | Gearbox Housing Material | Powder Metallurgy |
|---|---|---|---|
| Rated Voltage | 24 V | Motor Speed (rpm) | 5000 RPM |
| Ambient Temperature | -20℃~+50℃ | Max Radial Load | ≤45N (10mm From Front Flange) |
| Rated Speed | 168 RPM | Reduction Ratio | 1:29.8 |
| Certification | CE ROHS ISO | Protection Level | IP40 |
| High Light | Powder Metallurgy Dc Brush Gear Motor,Low Noise 24V Brush Gear Motor,Nema 11 Dc Gearmotor 24v | ||
Product Description
Nema 11 28 MM*28 MM Low Noise Dc Brush Gear Motor 5000 RPM 24 V
Brushed DC motors use an armature, which acts as a two-pole electromagnet. A commutator is a mechanical rotary switch that reverses the direction of current twice per cycle. In contrast, a brushless motor uses permanent magnets as its outer rotor. And brushless DC motors don’t have brushes, which means they require less maintenance and are a bit more efficient than brushed motors.
Hetai’s high power density BLDC DC small motor provides unparalleled speed and torque performance, ideal for automation applications such as electronic assembly equipment that requires constant pick and place operations. Durable and high-performance, energy-efficient Athlonix motors are also used in medical pumps, safety door locks, robotics and many other applications.
Electrical Specification
| SPECIFICATIONS WITH PLANETARY GEAR | ||
| Rated Speed | RPM | 168 |
| Rated Voltage | V | 24 |
| Motor Speed | RPM | 5000 |
| Reduction Ratio | 29.8:1 | |
* Products can be customized by special request.
Advantages:
* Higher efficiency and power density than induction motors.
* Long service life and quiet running thanks to precision ball bearings.
* Wide speed range with full motor output due to linear torque curve Reduced electrical interference emission.
* Mechanically exchangeable with stepper motors, hence less construction expense and greater parts variety.
.
GEARBOX PART Electrical Specification:
28 MM High Precision Gearbox
| Housing Material | Bearing at output | Radial load(10mm from flange)N | Shaft axial load(N) | Shaft press-fit force max(N) | Radial play of shaft(mm) | Thrust play of shaft(mm) | Backlash at no-load (°) |
| Power Metallurgy | Sleeve Bearings | ≤80 | ≤30 | ≤200 | ≤0.03 | ≤0.4 | ≤1.5 |
| Reduction ratio | Rated tolerance torque (Nm) | Max momentary tolerance torque (Nm) | Efficiency% | Length (mm) | Weight(g) | Number of gear trains |
| 1/3 | 0.2 | 0.6 | 81% | 28.5 | 105 | 1 |
| 1/6 |

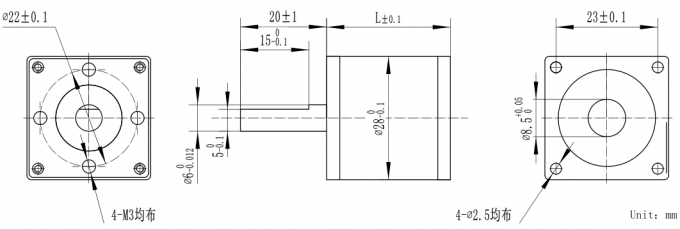

Mechanical Dimension
28 MM Planetary Gearbox
| Housing Material | Bearing at output | Radial load(10mm from flange)N | Shaft axial load(N) | Shaft press-fit force max(N) | Radial play of shaft(mm) | Thrust play of shaft(mm) | Backlash at no-load (°) |
| Power Metallurgy | Sleeve Bearings | ≤80 | ≤30 | ≤200 | ≤0.03 | ≤0.1 | ≤1.5 |
| Reduction ratio | Rated tolerance torque (Nm) | Max momentary tolerance torque (Nm) | Efficiency% | Length (mm) | Weight(g) | Number of gear trains |
| 1/4 | 0.5 | 1.5 | 72% | 29.8 | 92 | 1 |
| 1/30 | ||||||
| 1/64 | 1.8 | 5 | 65% | 40.0 | 105 | 1 |
| 1/107 |

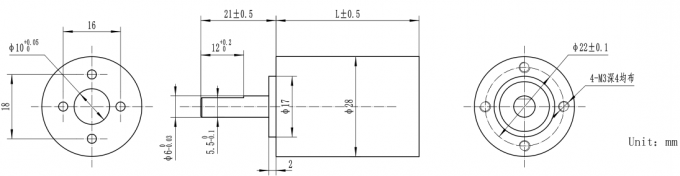

Mechanical Dimension
Gearbox Production
 |  |  |
| Gearbox Assmenbly | Mass Produstion | Gearbox Motor Aging Test |
MANUFACTURE EQUIPMENT
 | ||
| CNC CENTER | ROTOR GRINDING OUT CIRCLE | LASER SPOT WELDER |
 | ||
| AUTOMATIC MULTI-HEAD WINDING MACHINE | AUTOMATIC MULTI-HEAD WINDING MACHINE | WINDING MACHINE |
 | ||
| AUTOMATIC ASSEMBLY LINE | ASSEMBLY LINE | ASSEMBLY LINE |
