NEMA 14 240RPM 0.64NM 36MM Micro 24V Dc Brushed Motor With Gearbox
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 36PG3857-XXX-25K |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | DC Brush Gear Motor | Rated Voltage | 24V |
|---|---|---|---|
| Total Length | 92±1 Mm | No-load Speed | 200±15%RPM |
| Reduction Ratio | 1:25 | Shaft Length | 20±0.5mm |
| Thread Pitch | φ28±0.1 Mm | No-load Current | ≤0.38A |
| Withstand Voltage | AC600V/ MA/1S | ||
| High Light | Micro 24V Dc Brushed Motor,NEMA14 Dc Brushed Motor,240RPM Dc Brush Gear Motor | ||
Product Description
NEMA 14 240RPM 0.64NM 36MM micro 24V dc brushed motor with gearbox dc brush gear motor
Advantages of brushed motors
1. Simple structure;
2. Smooth operation, good starting and braking effect;
3. Fast response speed and large starting torque;
4. High control precision.
Electrical Specification:
| Test items | Technical requirement | ||||
| Standard | Min | Max | Unit | ||
| Outer shaft diameter | φ8(0/-0.03) | 7.970 | 8.000 | mm | |
| Shaft length | 20±0.5 | 19.50 | 20.50 | mm | |
| Flattening length | 15(＋0.2/0) | 15.00 | 15.20 | mm | |
| Flattening width | 7(0/-0.1) | 6.90 | 7.00 | mm | |
| Gearbox outer diameter | φ36 | / | / | mm | |
| Total length | 92±1 | 91.00 | 93.00 | mm | |
| Motor outer diameter | φ38Max | / | 38.00 | mm | |
| Outside diameter of bearing | φ22±0.05 | 21.95 | 22.05 | mm | |
| Thread pitch | φ28±0.1 | 27.90 | 28.10 | mm | |
| Thread diameter | M3 | / | / | / | |
| Mechanical behavior | No-load current | ≤0.38 | / | 0.38 | A |
| No-load speed | 200±15%rpm | 199.85 | 200.15 | RPM | |
| Turn around | Operates facing the front end of the shaft | CCW | |||
| Sound | Nothing unusual | ||||
Technical requirements:

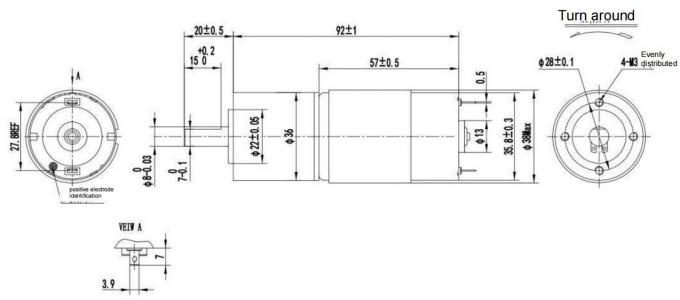

Mechanical Dimension
