Nema 14 Mini Low Noise Dc Brush Gear Motor 36mm 11V 900RPM
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | SUVAC D07R-11.1V-900RPM |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000pcs/month |
Leave a Message
Product Details
| Product Name | Dc Brush Gear Motor | Gearbox Housing Material | Zinc Alloy |
|---|---|---|---|
| Rated Torque With Gearbox | 0.1~0.3 N.m | No-load Speed (rpm) | 900 |
| Ambient Temperature | -20℃~+50℃ | Max Radial Load | ≤45N (10mm From Front Flange) |
| Shaft Axial Load | ≤25N | Motor SIze | 36*36*88 Mm |
| Backlash At No-load (°) | ≤1.5 | Protection Level | IP40 |
| High Light | Nema 14 Dc Brush Gear Motor,Mini 36mm Dc Brush Gear Motor,Low Noise 900RPM Brushed Dc Motor | ||
Product Description
36mm Nema 14 11V 900RPM cost-effective Mini Low Noise dc brush gear motor
The motor SUVAC D07R-11.1V-900RPM consists of a zinc alloy planetary gearbox and a 36mm brush motor. The reduction ratio is 1/12, the rated maximum tolerance torque of the gearbox is 0.3NM. The torque of this motor is about 0.1NM. The rated voltage is 11.1V.
Electrical Specification
| SPECIFICATIONS WITH PLANETARY GEAR | ||
| Rated Torque | N.m | 0.1 |
| Rated Voltage | V | 11.1 |
| No-load Speed (rpm) | Rpm | 900±10% |
| Reduction RATIO | 12:1 | |
*Products can be customized by special request.

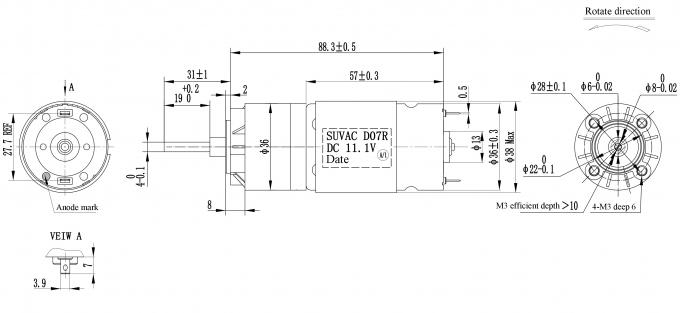

Mechanical Dimension
GEARBOX PART Electrical Specification:
36mm Zinc alloy
| Housing material | Bearing at output | Radial load(10mm from flange)N | Shaft axial load(N) | Shaft press-fit force max(N) | Radial play of shaft(mm) | Thrust play of shaft(mm) | Backlash at no-load (°) |
| Zinc alloy | Porous bearings | ≤45 | ≤25 | ≤100 | ≤0.08 | ≤0.4 | ≤1.5 |
| Reduction ratio | Rated tolerance torque (Nm) | Max momentary tolerance torque (Nm) | Efficiency% | Length (mm) | Weight(g) | Number of gear trains |
| 1/12 | 0.3 | 1.0 | 81% | 26.8 | 100 | 1 |
36mm Powder metallurgy
| Housing material | Bearing at output | Radial load(10mm from flange)N | Shaft axial load(N) | Shaft press-fit force max(N) | Radial play of shaft(mm) | Thrust play of shaft(mm) | Backlash at no-load (°) |
| Powder metallurgy | sleeve bearings | ≤120 | ≤80 | ≤500 | ≤0.03 | ≤0.1 | ≤1.5 |
| Reduction ratio | Rated tolerance torque (Nm) | Max momentary tolerance torque (Nm) | Efficiency% | Length (mm) | Weight(g) | Number of gear trains |
| 1/4 | 0.3 | 1.0 | 81% | 24.8 | 145 | 1 |
| 1/5 | ||||||
| 1/16 | 1.2 | 3.5 | 72% | 32.4 | 173 | 2 |
| 1/20 | ||||||
| 1/25 | ||||||
| 1/53 | 2.5 | 7.5 | 65% | 41.9 | 213 | 3 |
| 1/62 | ||||||
| 1/76 | ||||||
| 1/94 | ||||||
| 1/117 |
Press-fit
Gearbox Assembly
