Nema 14 Outer Diameter 36mm IP40 DC Brush Gear Motor 36 MM 24 V 94 RPM
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 36PG3857-XXX-53K |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000pcs/month |
Leave a Message
Product Details
| Product Name | DC Brush Gear Motor | Rated Voltage | 24 V |
|---|---|---|---|
| Rated Speed | 94 RPM | Motor Speed | 5000 RPM |
| Reduction Ratio | 1:53 | Backlash At No-load | ≤1.5 Degree |
| Bearing AT Output | Sleeve Bearing | Shaft Axial Load | ≤25N |
| Cetification | CE ROHS ISO | Protection Level | IP40 |
| High Light | 94 RPM DC Brush Gear Motor,IP40 DC Brush Gear Motor,Nema14 24v Dc Gear Motor | ||
Product Description
Nema 14 Outer Diameter 36mm IP40 DC Brush Gear Motor 36 MM 24 V 94 RPM
A brushed DC motor uses a configuration of wound wire coils, the armature, acting as a two-pole electromagnet. The current’s directionality is reversed twice per cycle by the commutator, a mechanical rotary switch. This facilitates flow of the current through the armature; thus, the electromagnet’s poles pull and push against the permanent magnets along the outside of the motor. The commutator then reverses the polarity of the armature’s electromagnet as its poles cross the permanent magnets’ poles.
A brushless motor, by contrast, utilizes a permanent magnet as its external rotor. In addition, it uses three phases of driving coils and a specialized sensor that tracks rotor position. As the sensor tracks the rotor position, it sends out reference signals to the controller. The controller, in turn, activates the coils in a structured way – one phase after the other.
Electrical Specification
| SPECIFICATIONS WITH PLANETARY GEAR | ||
| Rated Voltage | V | 24 |
| Motor Speed | RPM | 5000 |
| Rated Speed | RPM | 94 |
| Reduction RATIO | 53:1 | |
*Products can be customized by special request.

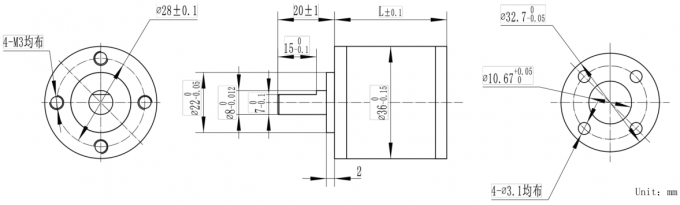

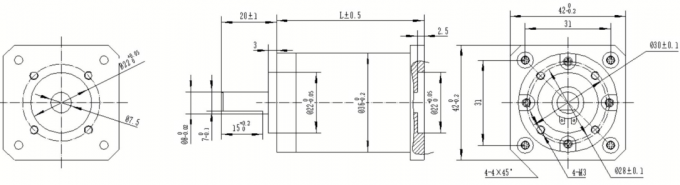

Mechanical Dimension
GEARBOX PART Electrical Specification:
36mm Zinc Alloy
| Housing material | Bearing at output | Radial load(10mm from flange)N | Shaft axial load(N) | Shaft press-fit force max(N) | Radial play of shaft(mm) | Thrust play of shaft(mm) | Backlash at no-load (°) |
| Zinc alloy | Porous bearings | ≤45 | ≤25 | ≤100 | ≤0.08 | ≤0.4 | ≤1.5 |
| Reduction ratio | Rated tolerance torque (Nm) | Max momentary tolerance torque (Nm) | Efficiency% | Length (mm) | Weight(g) | Number of gear trains |
| 1/12 | 0.3 | 1.0 | 81% | 26.8 | 100 | 1 |

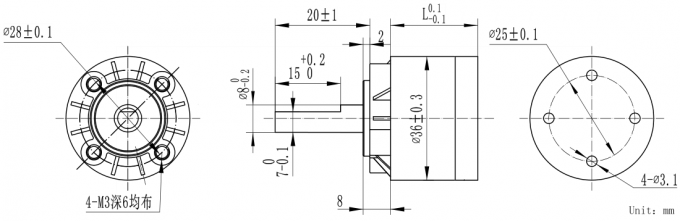

Mechanical Dimension
