NEMA 17 24V DC Brush Gear Motor Low Noise 42mm 1:53 94Rpm 0.75A With Gearbox
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 42PG4260-XXX-53K |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | DC Brush Gear Motor | Rated Voltage | 24V |
|---|---|---|---|
| No-load Current | ≤0.75A | No-load Speed | 94±15%RPM |
| Shaft Length | 20±1mm | Thread Pitch | φ35±0.1 Mm |
| Total Length | 126.1±1 Mm | Reduction Ratio | 1:53 |
| Withstand Voltage | AC600V/ MA/1S | ||
| High Light | 94Rpm 24V DC Brush Gear Motor,0.75A 24V DC Brush Gear Motor,42mm NEMA 17 Dc Brush Motor | ||
Product Description
Low Noise NEMA 17 24V DC Brush Gear Motor 42mm With Gearbox 1:53 94Rpm 0.75A
What is a DC Gear Motor?
A gear motor is an all-in-one combination of a motor and gearbox. The addition of a gear head to a motor reduces the speed while increasing the torque output. The most important parameters in regards to gear motors are speed (rpm), torque (lb-in) and efficiency (%). In order to select the most suitable gear motor for your application you must first compute the load, speed and torque requirements for your application. ISL Products offers a variety of Spur Gear Motors, Planetary Gear Motors and Worm Gear Motors to meet all application requirements. Most of our DC motors can be complemented with one of our unique gearheads, providing you with a highly efficient gear motor solution.
Electrical Specification:
| Test items | Technical requirement | ||||
| Standard | Min | Max | Unit | ||
| Outer shaft diameter | φ8(0/-0.02) | 7.980 | 8.000 | mm | |
| Shaft length | 20±1 | 19.00 | 21.00 | mm | |
| Flattening length | 15(＋0.2/0) | 15.00 | 15.20 | mm | |
| Flattening width | 7(0/-0.1) | 6.90 | 7.00 | mm | |
| Gearbox outer diameter | φ42±0.3 | 41.70 | 42.30 | mm | |
| Total length | 126.1±1 | 125.10 | 127.10 | mm | |
| Motor outer diameter | φ45Max | / | 45.00 | mm | |
| Outside diameter of bearing | φ26±0.1 | 25.90 | 26.10 | mm | |
| Thread pitch | φ35±0.1 | 34.90 | 35.10 | mm | |
| Thread diameter | M4 | / | / | / | |
| Mechanical behavior | No-load current | ≤0.75 | / | 0.75 | A |
| No-load speed | 94±15%rpm | 93.85 | 94.15 | RPM | |
| Turn around | Operates facing the front end of the shaft | CCW | |||
| Sound | Nothing unusual | ||||
Technical requirements:

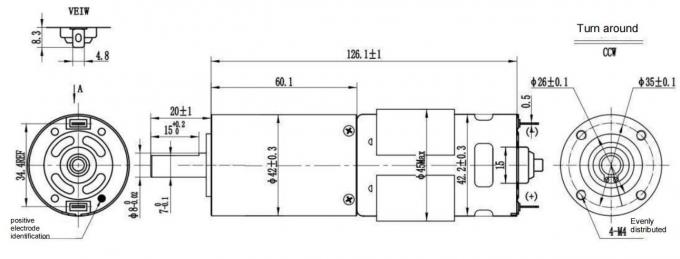

Mechanical Dimension
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
