Nema 17 42BYGH872 4.5Kg.Cm 1.8 Degree Integrated Stepper Motor With Driver
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 42BYGH872-15 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 pcs/month |
Leave a Message
Product Details
| Product Name | Integrated Stepper Motor | Step Angle | 1.8 ° |
|---|---|---|---|
| Hoiding Torque | 4.5 Kg.cm | Resistance | 1.65 Ω/phase |
| Induction | 2.8 MH/Phase | Step Accuracy | ± 5% |
| Temperature Rise | 80 ℃ Max | Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100MΩ Min.500 VDC | Dielectric Strength | 500VAC 1 Minute |
| MAX Radial Force | 75N (10mm From Front Flange) | MAX Axial Force | 15N |
| High Light | 1.8 Degree Integrated Stepper Motor,Nema 17 Integrated Stepper Motor,Integrated Stepper Motor Controller Driver | ||
Product Description

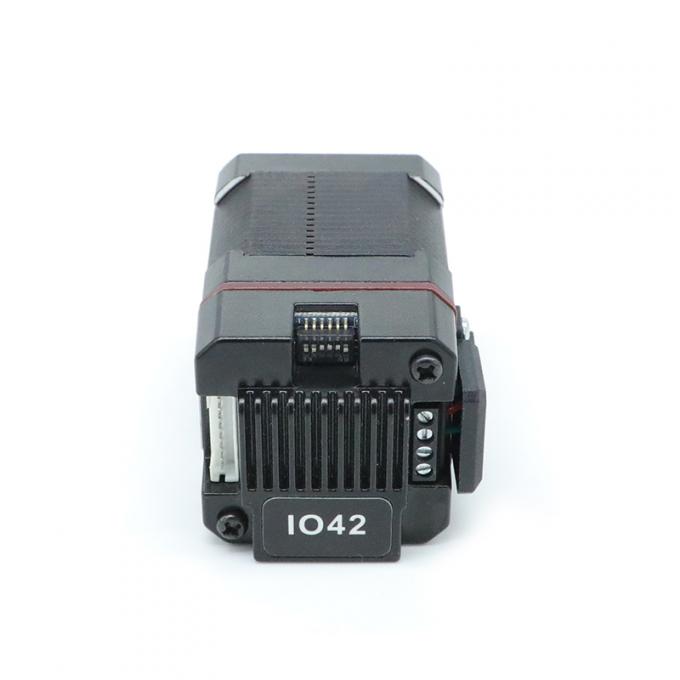

Nema 17 42BYGH872 4.5Kg.cm 1.8 Degree integrated Stepper Motor with driver
The ADVANTAGE of Integrated Stepper Motor:
The motor 42BYGH872-15 was consist of a nema17 stepper motor and a driver, which is a kind of Integrated Pulse open-loop stepper motor.
The advantages of the integrated step motors are user-friendly, space-saving, high torque at low speeds, and Low vibration, low noise, smooth operation.
Motor Electrical Specification:
| Model Number | 42BYGH872-15 |
| Step Accuracy | ± 5% |
| Step Angle | 1.8° |
| Lead Wire | 4 |
| Rated Voltage (V) | 2.8 |
| Current (A/Phase) | 1.7 |
| Holding Torque (Kg.cm) | 4.5 |
| Resistance (Ω/phase) | 1.65 |
| Inductance (mH/phase) | 2.8 |
| Motor length (MM) | 69 |
| Motor Weight(Kg) | 1.0 |
| Insulation Class | B |
*Products can be customized by special request.
***Note: The products can be customized by your request. Please contact us for more details.

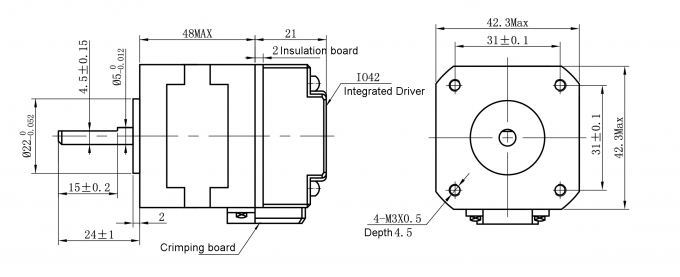

Mechanical Dimension

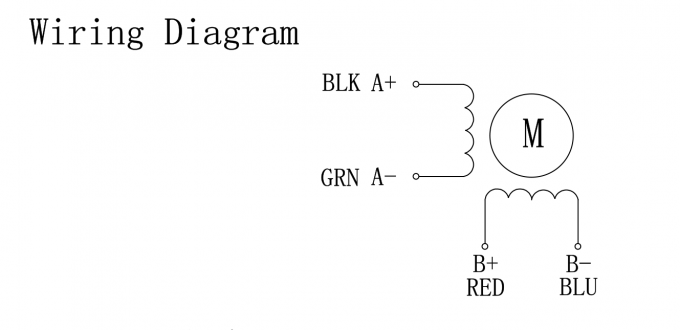

Wiring DIagram
Characteristics of the driver
New 32 Bit DSP Technology
Low vibration, low noise, smooth operation
Built-in high-resolution and smooth filtering function
Automatic parameter power-on setting function
Variable current control greatly reduces the heat generation of the motor.
The automatic halving of current at rest
Can drive 4,6,8-wire tow-phase stepping motor
Photoelectric isolation of single-ended signal input (pulse, direction and enable)
Impulse response frequency up to 500KHz (factory default 200KHz)
The current setting is convenient and can be selected between 0.5-2.2 A
sub-set range 200-51200, higher sub-customizable
It has the protection functions of overvoltage, Undervoltage, and overcurrent.
Driver Manual
IO42 is a new digital Integrated stepper driver, which is designed by 32-bit DSP digital processing technology, variable current technology, and low heating technology. It has the advantages of low vibration, stable operation, low heating, and high reliability. Users can set the driver through the serial port 200-51200 within the arbitrary subdivision and rate current value output, to meet the needs of most applications. Due to the use of built-in micro-subdivision technology, even in the conditions of low subdivision, but also can achieve a high subdivision effect, low, medium, and high-speed operation is very smooth ultra-low noise. The driver has the function of the power-on auto-adaptive motor, which can automatically generate the optimal operating parameters for different motors and maximize the performance of the motor.
Electrical characteristics
| Explanation | IO42 | |||
| Minimum Value | Typical Value | Maximal Value | Unit | |
| Continuous output current | 0.5 | – | 2.2 | A |
| Power Supply Voltage (DC) | 15 | 24 | 32 | Vdc |
| Control signal input current | 6 | 10 | 16 | mA |
| Control signal input current | – | 5 | – | Vdc |
| Minimum time width of pulse high level | 1.5 | – | – | US |
| Overvoltage point | 35 | Vdc | ||
| Step frequency | 0 | – | 200 | KHz |
| Insulation Resistance | 100 | MΩ | ||
