Nema 17 42mm Linear Stepper Motor 4 Lead Wire 12V 1.7A
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 42BYGHL |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 PCS/MONTH |
Leave a Message
Product Details
| The Name Of Product | Linear Stepper Motor | Step Angle | 1.8 ° |
|---|---|---|---|
| Rated Voltage | 2.3V-12V | Rated Current | 0.4A-1.7A |
| Step Accuracy | ±5% | No. Of Leads | 4 |
| Insulation Resistance | 100MΩ Min.500VC DC | Dielectric Strength | 500VAC 1 Minute |
| MAX Radial Forcece | 28N (20mm From Front Flange) | MAX Axial Force | 10N |
| High Light | 42mm Linear Stepper Motor,12V 1.7A Linear Stepper Motor,1.7A Nema 17 Stepper Motor | ||
Product Description
Nema 17 42mm High Quality Linear Stepper Motor 4 Lead Wire 12V 1.7A Manufacture Direct Sale
The Features of the linear step motor
Engineers most commonly use these linear actuators in larger installations; on axes that move heavier loads, and in high-end medical or material-handling applications such as pick-and-place machinery that require extremely high precision. Like rotary equivalents, linear stepper motors either use a variable reluctance (just described) or a hybrid mode of operation. A hybrid linear-stepper platen is like that of a variable-reluctance linear stepper. In contrast, the forcer has multiple permanent magnets, magnetic U-shaped cores (with coils around them), and a steel yoke.
Electrical Specification Of Linear Stepper Motor
| MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (KG.CM) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 42BYGHL208-12A | 1.8 | 4 | 12.0 | 0.4 | 30.0 | 42.0 | 2.6 | 34 | 0.20 |
| 42BYGHL613-03A | 1.8 | 4 | 2.3 | 1.7 | 1.35 | 3.0 | 3.5 | 40 | 0.26 |
| 42BYGHL810-09 | 1.8 | 4 | 3.8 | 1.2 | 3.2 | 6.0 | 4.5 | 48 | 0.36 |
You can download our 42BYGHL Linear Stepper Motor product brochure:42BYGHL.pdf

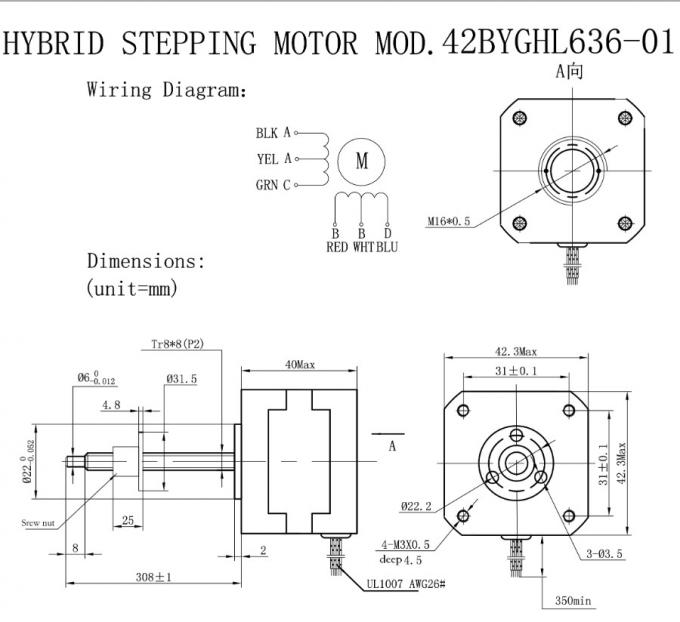

Mechanical Dimension Of Linear Stepper Motor
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Market Range Of TB-Motor
Product Range Of TB-Motor
Manufacture Flow
Assembly Line Of Stepper Motor
Stator Winding Machine
Packing&Delivery
