NEMA 17 Lead Screw Stepper Motor Linear Actuators Micro 42BYGH 0.8V 4.2kg Cm
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 42BYGHL805-04AE |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Linear Step Motor | Step Accuracy | ± 5% |
|---|---|---|---|
| Temperature Rise | 80 ℃ Max | Resistance | 0.32Ω |
| Insulation Resistance | 100MΩ Min.500VC DC | Ambient Temperature | -20℃~+50℃ |
| Inductance | 45 MH | Dielectric Strength | 500VAC 1 Minute |
| Max Radial Force | 28N (20mm From Front Flange) | Max Axial Force | 10N |
| High Light | ball screw stepper motor linear actuator,nema 17 stepper motor with lead screw,micro stepper motor lead screw | ||
Product Description
42BYGHL805-04AE cost-effective 10.8V 0.42Nm NEMA17 linear step motor
The stepper motor with screw has 4 lead wires. The voltage is 10.8 and the current/phase is 0.4A. The holding torque is 4.2 kg.cm and the resistance is 27 Ω/phase.
42BYGHL805-04AE Tr 8*8(P2) 4 heads
Electrical Specification
Model Number | 42BYGHL805-04AE |
Step Accuracy | ± 5% |
Step Angle | 1.8° |
Lead Wire | 4 |
Voltage (V) | 10.8 |
Current (A/Phase) | 0.4 |
Holding Torque (kg.cm) | 4.2 |
| Resistance (Ω/phase) | 27 |
| Inductance (mH/phase) | 45 |
| Motor length (MM) | 48 |
| Motor Weight(Kg) | 0.36 |
| Insulation Class | B |

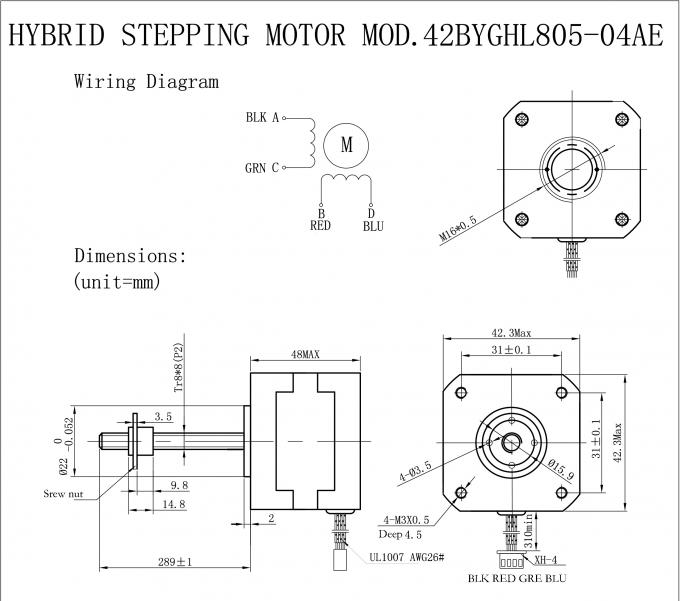

Mechanical Dimension
Specification of Other Models:
| MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (KG.CM) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 42BYGHL208-12A | 1.8 | 4 | 12.0 | 0.4 | 30.0 | 42.0 | 2.6 | 34 | 0.20 |
| 42BYGHL613-03A | 1.8 | 4 | 2.3 | 1.7 | 1.35 | 3.0 | 3.5 | 40 | 0.26 |
| 42BYGHL810-09 | 1.8 | 4 | 3.8 | 1.2 | 33.2 | 6.0 | 4.5 | 48 | 0.36 |
*Products can be customized by special request.
