Nema 17 Linear Stepper Motor Actuator Lead Screw 42bygh 4 Wire
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 42BYGHL208-02 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Linear Step Motor | Temperature Rise | 80 ℃ Max |
|---|---|---|---|
| Resistance | 30 Ω | Insulation Resistance | 100MΩ Min.500VC DC |
| Ambient Temperature | -20℃~+50℃ | Step Accuracy | ± 5% |
| Inductance | 42 MH | Dielectric Strength | 500VAC 1 Minute |
| Max Radial Force | 28N (20mm From Front Flange) | Max Axial Force | 10N |
| High Light | Nema 17 Linear Stepper Motor 42bygh,Linear Stepper Motor 42bygh,lead screw linear actuator | ||
Product Description

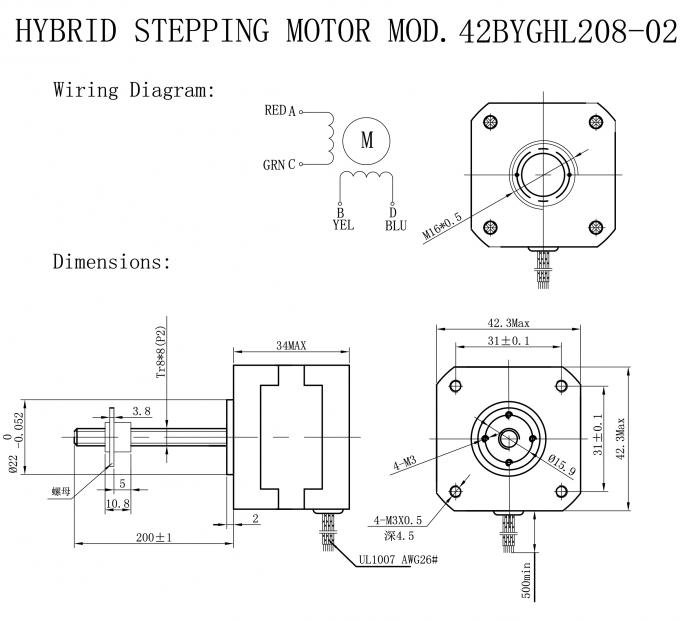

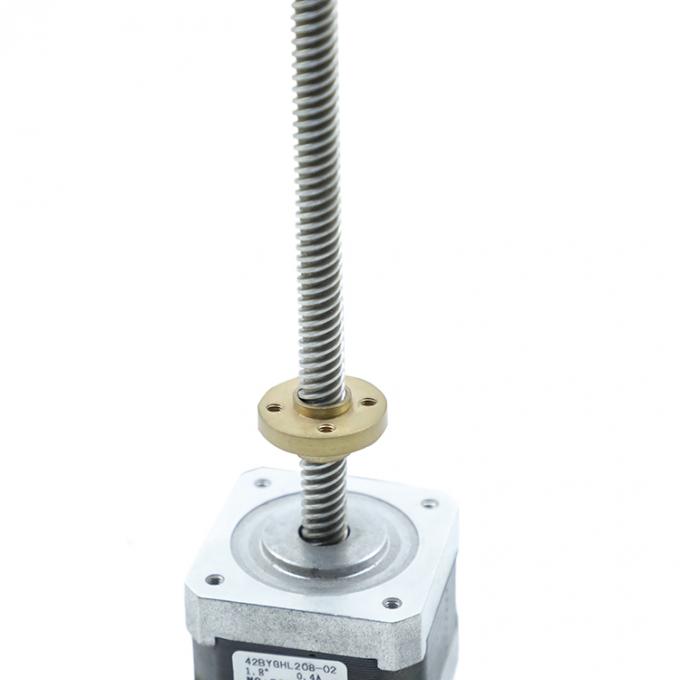

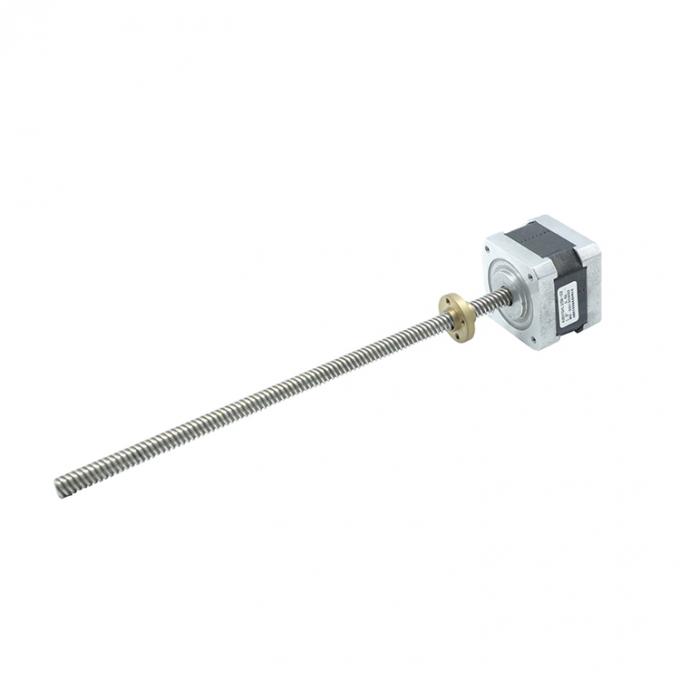

42BYGHL208-02 NEMA 17 screw nuts Tr 8*8(P2) 4 heads 4 wire linear actuator
The screw of this linear actuator is 8mm in diameter and 8mm lead. It has 2 pitches and 4 thread heads.
The step angle is 1.8° and the Step Accuracy is ± 5%. It has a holding torque of 0.26 Nm and is quiet in operation.
Electrical Specification:
| Model Number | 42BYGHL208-02 |
| Step Accuracy | ± 5% |
| Step Angle | 1.8° |
| Lead Wire | 4 |
| Voltage (V) | 12 |
| Current (A/Phase) | 0.4 |
| Holding Torque (Kg.cm) | 2.6 |
| Resistance (Ω/phase) | 30 |
| Inductance (mH/phase) | 42 |
| Motor length (MM) | 34 |
| Motor Weight(Kg) | 0.2 |
| Insulation Class | B |
*Products can be customized by special request.
| MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (KG.CM) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 42BYGHL208-12A | 1.8 | 4 | 12.0 | 0.4 | 30.0 | 42.0 | 2.6 | 34 | 0.20 |
| 42BYGHL613-03A | 1.8 | 4 | 2.3 | 1.7 | 1.35 | 3.0 | 3.5 | 40 | 0.26 |
| 42BYGHL810-09 | 1.8 | 4 | 3.8 | 1.2 | 33.2 | 6.0 | 4.5 | 48 | 0.36 |
*Products can be customized by special request.
1. Are you a factory?
Yes, we are a factory. Our brand name TB-Motor is a well-known micro motor manufacturer for more than 20 years in
China. Main products including hybrid stepper motor, brushless DC motor, servo motor, and planetary gearbox.
2. Can I test the sample?
Yes, samples and freight are charged.
3. Can I get a Customized product?
Sure, all the products can be customized based on special requests.
4. How do you ship the goods?
We normally ship goods by express(DHL/UPS/FEDEX/TNT), by sea and by air, also accept freight forwarder.
5. What are the payment terms?
T/T(bank transfer), Paypal(0.5% paypal charges), ALIBABA assurance order accept
6. Is this your final price? May I have the discount?
Our price is the factory price. If you have a large quantity, we can negotiate about the discount.
7. What is the Warranty for your products?
Our warranty is for one year. If any quality problems occurred on our side during this period, we will take on the shipping cost and replacement. please note damage caused by improper use of the product is not covered by the warranty.
