NEMA 17 Micro Linear Stepper Motor Lead Screw Tr8x8 P2 DC 5.61V 4.5 Kg Cm
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 42BYGHL636-01 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Linear Step Motor | Temperature Rise | 80 ℃ Max |
|---|---|---|---|
| Insulation Resistance | 100MΩ Min.500VC DC | Inductance | 3.5 MH |
| Max Axial Force | 10N | Dielectric Strength | 500VAC 1 Minute |
| Max Radial Force | 28N (20mm From Front Flange) | Ambient Temperature | -20℃~+50℃ |
| Insulation Class | B | Step Accuracy | ± 5% |
| High Light | Micro Linear Stepper Motor Lead Screw Tr8x8,nema 17 linear stepper,Electric Linear Actuator Stepper Motor Tr8x8 | ||
Product Description
42BYGHL842-08 NEMA 17 micro DC 5.61V 4.5 Kg.cm Tr 8*8(P2) 4 Linear actuator
42BYGHL842-08 Tr 8*8(P2) 4 heads with screw nut
Tr outer diameter * lead (pitch) + thread heads
*The lead number of the screw can be chosen from 8,4,2.
Max radial force 28N ＠20mm from the flange
Max.axial force 10N
Insulation class Class B
Dielectric strength 500VDC for one minute
Insulation resistance 100MΩ Min.,500VDC
Electrical Specification:
Model Number | 42BYGHL842-08 |
Step Accuracy | ± 5% |
Step Angle | 1.8° |
Lead Wire | 4 |
Voltage (V) | 5.61 |
Current (A/Phase) | 1.7 |
| Holding Torque (Kg.cm) | 4.5 |
| Resistance (Ω/phase) | 3.3 |
| Inductance (mH/phase) | 3.7 |
| Motor length (MM) | 48 |
| Motor Weight(Kg) | 0.36 |
| Insulation Class | B |
*Products can be customized by special request.

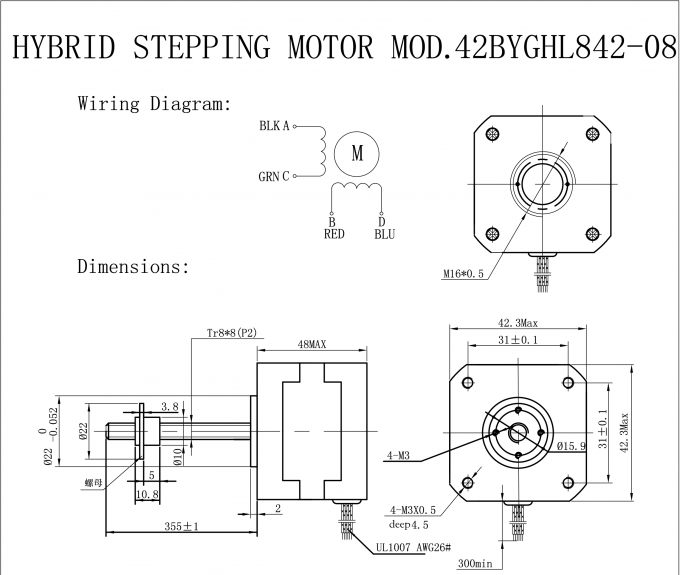

Mechanical Dimension
Specification of Other Models
| MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (KG.CM) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 42BYGHL208-12A | 1.8 | 4 | 12.0 | 0.4 | 30.0 | 42.0 | 2.6 | 34 | 0.20 |
| 42BYGHL613-03A | 1.8 | 4 | 2.3 | 1.7 | 1.35 | 3.0 | 3.5 | 40 | 0.26 |
| 42BYGHL810-09 | 1.8 | 4 | 3.8 | 1.2 | 3.2 | 6.0 | 4.5 | 48 | 0.36 |
*Products can be customized by special request.
Product Application
- Automated machine tools
- Automotive gauges
- Surveillance equipment such as cameras
- Zooming functions in digital cameras
- Medical imagers and samplers
- Blood analysis machines
- Dental photography equipment
- Fluid pumps
- Respirators
- Hospital beds
- Stretchers and incubators
