Nema 23 1.5V Holding Torque Stepper Motor With Gearbox 212 Oz In For Multi Head Food Scale
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 57BYGH636-79AG6 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Stepping Gearbox Motor | Step Angle | 1.8 ° |
|---|---|---|---|
| Temperature Rise | 80 ℃ Max | Insulation Resistance | 100MΩ Min.500VC DC |
| Ambient Temperature | -20℃~+50℃ | Dielectric Strength | 500VAC 1 Minute |
| Housing Material | Powder Metallurgy | Bearing At Output | Sleeve Bearings |
| Radial Load(10mm From Flange) | ≤450N | Shaft Axial Load | ≤200N |
| High Light | Holding Torque Stepper Motor With Gearbox,Nema 23 Stepper Motor With Gearbox,Multihead Food Scale Gearbox Stepper Motor | ||
Product Description
NEMA 23 1.5V 57BYGH636 Stepper Motor With Gearbox Holding Torque 1.5 NM 212 Oz In For Multi-Head Food Scale
Our factory has more than 20 years’ experience of producing stepper motors. The professional manufacture and design strength has enable us to help customer solve their problems and supply quality products.
57BYGH636-79AG6 is consist of a DC 57mm stepper motor and a 56mm planetary gearbox. With the same load capacity, our powder metallurgy planetary gearbox has a higher lifespan than the traditional gearboxes. The key aspects are to improve efficiency and reliability in any mechanical system. There’re also some cost-effective choices of material such as zinc alloy and engineering plastic.
This model is using a 56mm powder metallurgy gearbox, please see the following reduction ratio:
Stage 1
1/4, 1/6
Stage 2
1/15, 1/18, 1/26
Stage 3
1/47, 1/66
Please scroll down to see more details about the gearbox
Electrical Specification
| STEP ANGLE | °/STEP | 1.8 |
| RATED VOLTAGE | V | 1.5 |
| CURRENT | A/PHASE | 3 |
| RESISTANCE | Ω/PHASE | 0.5 |
| INDUCTANCE | mH/PHASE | 1.8 |
| HOLDING TORQUE | kg.cm | 15 |
| INSULATION CLASS | B | |
*Products can be customized by special request.
GEARBOX Electrical Specification
Out diameter 56mm Powder metallurgy
| Housing material | Bearing at output | Radial load(10mm from flange)N | Shaft axial load(N) | Shaft press-fit force max(N) | Radial play of shaft(mm) | Thrust play of shaft(mm) | Backlash at no-load (°) |
| Powder metallurgy | sleeve bearings | ≤450 | ≤200 | ≤1000 | ≤0.03 | ≤0.1 | ≤1.5 |
| Reduction ratio | Rated tolerance torque (Nm) | Max momentary tolerance torque (Nm) | Efficiency% | Length L (mm) | Weight(g) | Number of gear trains |
| 1/4 | 2.0 | 6.0 | 81% | 41.3 | 491 | 1 |
| 1/6 | ||||||
| 1/15 | 8.0 | 25 | 72% | 59.6 | 700 | 2 |
| 1/18 | ||||||
| 1/26 | ||||||
| 1/47 | 16 | 50
| 72% | 59.6 | 700 | 2 |
| 1/66 |
Mechanical Dimension
Product Application:

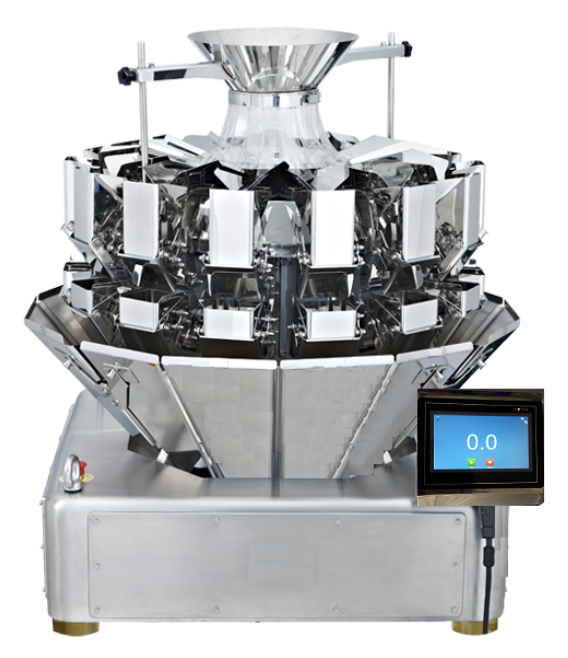

Multi-Head Food Scale step motor
