Nema 23 57mm Linear Stepper Motor 4 Lead Wire 10.4V 1.7A

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	57BYGHL
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	28-31 DAYS
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000 PCS/MONTH

GET AN ESTIMATE NOW

Product Details

The Name Of Product	Hybrid Stepper Motor	Step Angle	1.8 °
Rated Voltage	2.7V-10.4V	Rated Current	0.6A-1.7A
Step Accuracy	±5%	No. Of Leads	4
Insulation Resistance	100MΩ Min.500VC DC	Dielectric Strength	500VAC 1 Minute
MAX Radial Forcece	75N (20mm From Front Flange)	MAX Axial Force	15N
High Light	57mm Linear Stepper Motor,Nema23 Linear Stepper Motor 1.7A,10.4V Hybrid Stepper Motor

Product Description

Nema 23 57mm High Quality Linear Stepper Motor 4 Lead Wire 10.4V 1.7A Low price

The linear Nema 23 linear stepper motor is IP40, the working temperature is -20℃~+50℃. It has a holding torque of 4.5 kg.cm.

The products can be customized by special request.

Hetai will provide the product warranty service of 12 months from the date of delivery for customers and provide the free. product maintenance and consultation services for customers within the warranty period.

Electrical Specification Of Linear Stepper Motor

MODEL	STEP ANGLE (°/STEP)	LEAD WIRE (NO.)	VOLTAGE (V)	CURRENT (A/PHASE)	RESISTANCE (Ω/PHASE)	INDUCTANCE (MH/PHASE)	HOLDING TORQUE (KG.CM)	MOTOR HEIGHT L(MM)	MOTOR WEIGHT (KG)
57BYGHL013-15	1.8	4	2.7	1.5	1.8	4.0	4.0	41	0.45
57BYGHL216-10	1.8	4	3.3	1.7	1.95	6.0	10.0	51	0.65
57BYGHL401-03	1.8	4	6.0	0.6	10.0	32.0	9.0	56	0.70
57BYGHL602-07	1.8	4	10.4	0.8	13.0	42.0	19.8	78	1.00
57BYGHL815-01	1.8	4	7.36	1.6	4.6	16.0	20.0	84	1.13

You can download our 57BYGHL Linear Stepper Motor product brochure:57BYGHL.pdf

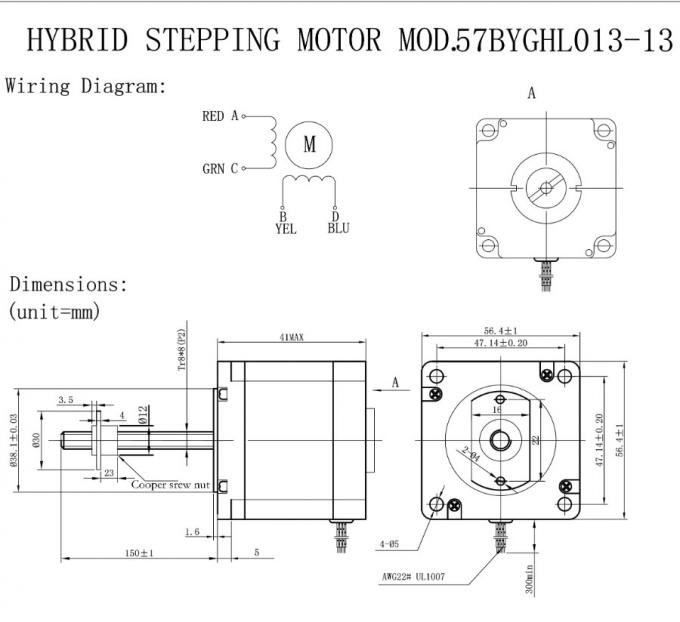

Mechanical Dimension Of Linear Stepper Motor
