Nema 23 6 Wire Stepper Motor 2 Phase 124 oz 0.14nm 1.8 Step Angle 57BYGH613
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 57BYGH |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepping Motor | Step Accuracy | ± 5% |
|---|---|---|---|
| Temperature Rise | 80 ℃ Max | Insulation Resistance | 100MΩ Min.500VC DC |
| Ambient Temperature | -20℃~+50℃ | Dielectric Strength | 500VAC 1 Minute |
| Max Radial Force | 75N (20mm From Front Flange) | Max Axial Force | 15N |
| Current | 2A | Holding Torque | 0.14 N.m |
| High Light | 2 phase 6 wire stepper motor 124 oz,Nema 23 6 Wire Stepper Motor 2 phase 124 oz,stepper motor 23 0.14nm 124 oz | ||
Product Description
57BYGH613 1.8° step angle 0.14nm customizable 2 phase micro NEMA 23 stepper motor
A stepper motor, also known as step motor or stepping motor, is a brushless DC electric motor that divides a full rotation into a number of equal steps. The motor’s position can then be commanded to move and hold at one of these steps without any position sensor for feedback (an open-loop controller), as long as the motor is carefully sized to the application in respect to torque and speed.
Electrical Specification:
Model Number | 57BYGH613 |
Step Accuracy | ± 5% |
Step Angle | 1.8° |
Lead Wire | 6 |
Voltage (V) | 4.5 |
Current (A/Phase) | 2.0 |
Holding Torque (N.m) | 0.135 |
| Resistance (Ω/phase) | 2.25 |
| Inductance (mH/phase) | 4.1 |
| Insulation Class | B |

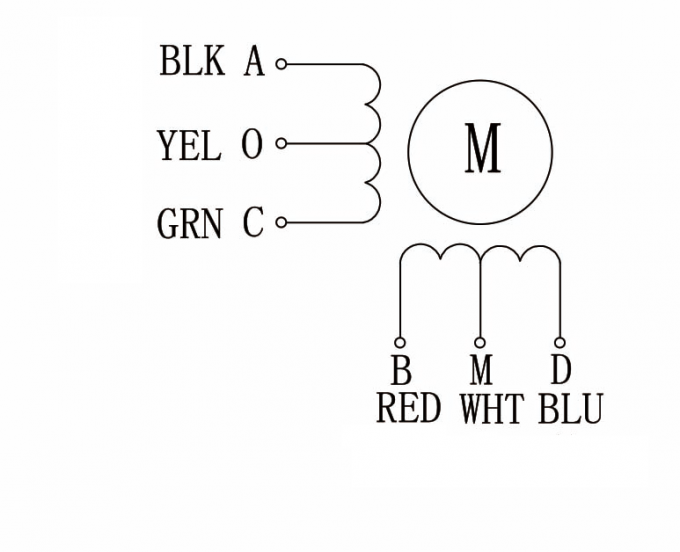

*Wiring Diagram

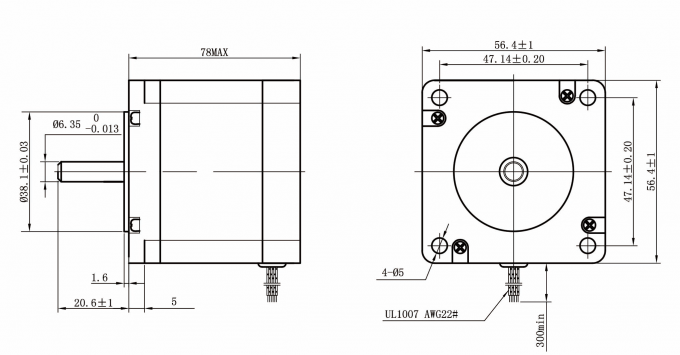

*Mechanical Dimension
Specification of Other Models:
| MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (KG.CM) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 57BYGH001A | 1.8 | 4 | 6.0 | 0.5 | 12 | 20 | 3.5 | 41 | 0.45 |
| 57BYGH048-11 | 1.8 | 4 | 4.4 | 2.0 | 2.2 | 5.0 | 6.0 | 41 | 0.45 |
| 57BYGH201-22A | 1.8 | 4 | 6.6 | 0.6 | 11 | 25 | 7.0 | 51 | 0.65 |
| 57BYGH218-45 | 1.8 | 4 | 2.6 | 2.0 | 1.3 | 4 | 8.0 | 51 | 0.65 |
| 57BYGH420-77 | 1.8 | 6 | 3.8 | 2.0 | 1.9 | 3.5 | 9.0 | 56 | 0.70 |
| 57BYGH432-63A | 1.8 | 6 | 2.4 | 3.0 | 0.8 | 1.2 | 9.0 | 56 | 0.70 |
| 57BYGH633-131 | 1.8 | 6 | 3.0 | 3.0 | 1.0 | 1.8 | 13.5 | 78 | 1.00 |
| 57BYGH639-10E | 1.8 | 4 | 2.1 | 4.2 | 0.5 | 1.6 | 18 | 78 | 1.13 |
| 57BYGH801-01 | 1.8 | 6 | 3.3 | 3.0 | 1.1 | 2.5 | 16 | 84 | 1.13 |
| 57BYGH815 | 1.8 | 4 | 7.36 | 1.6 | 4.6 | 16 | 20 | 84 | 1.13 |
*Products can be customized by special request.
*Can match with gearbox 42, 52, 57, 62mm
