Nema 23 Brushless DC Motor With Built In Driver
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 57BL631 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000pcs/month |
Leave a Message
Product Details
| Product Name | Brushless DC Motors | Driver Part Number | SUNMOTOR34-02 |
|---|---|---|---|
| Winding Type | Star | Hall Effect Angle | 120° Electrical Angle |
| Insulation Class | B | Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100MΩ Min.500VC DC | Dielectric Strength | 600VAC 1 Minute |
| MAX Radial Force | 75N (10mm From Front Flange) | MAX Axial Force | 15N |
| High Light | brushless dc motor nema 23,brushless motor with built in driver,bldc motor nema 23 | ||
Product Description
57BL631 57series 3 phase nema23 1300RPM Built-in Drive Brushless DC Motor
57BL series built-in drive brushless motor, it is more cost-effective & convenient for the user, which also increases the reliability.
Built-in drive indicators:
1. Input voltage range: 12V~40V;
2. Maximum continuous output current: 10A;
3. Hall BLDC motor control;
4. Maximum speed 5000rpm;
5. Speed regulation mode: PWM/5V analog signal;
6. Control signal: brake/reversing/speed pulse output;
7. Size: diameter 57mm, height 30mm.
Electrical Specification:
| Model | ||
| Specification | Unit | 57BL631 |
| Number Of Phases | Phase | 3 |
| Number Of Poles | Poles | 4 |
| Nominal Voltage | VDC | 30 |
| Rated Speed | Rpm | 1300±300RPM |
| Rated Torque | N.m | 0.44 |
| Rated Power | W | 60W |
| No-load speed | Rpm | 2100 |
| No-load Current | Amps | 1.00 |
| Torque Constant | N.m/A | 0.136 |
| Back EMF Constant | V/kRPM | 14.2 |
| Body Length | mm | 138±1 |
| Weight | Kg | 0.15 |
*Products can be customized with special requests.
*Products can match gearbox 42, 52, 56, 63mm

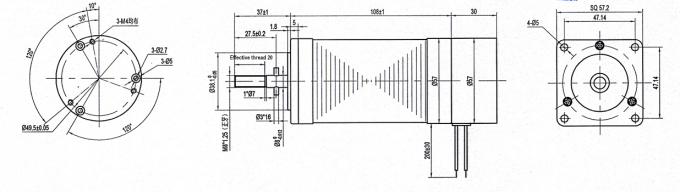

Mechanical Dimension
| ELECTRICAL CONNECTION TABLE | ||
| FUNCTION | COLOR | |
| +24V | RED | UL1015 20AWG |
| GND | BLACK | |
***Note: The products can be customized by your request. Please contact us for more details.
Product Advantage
-Wide Speed Ratio with a Long Service Lifespan
-Easy to install and operate
-Higher efficiency and reliability
