Nema 23 Linear Stepper Motor 10 Kg Cm 57BYGH Ball Screw 4 Wire 3.3V
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 57BYGHL216-14 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Linear Step Motor | Step Accuracy | ± 5% |
|---|---|---|---|
| Temperature Rise | 80 ℃ Max | Insulation Resistance | 100MΩ Min.500VC DC |
| Ambient Temperature | -20℃~+50℃ | Dielectric Strength | 500VAC 1 Minute |
| Max Radial Force | 75N (20mm From Front Flange) | Max Axial Force | 15N |
| Voltage | 3.3V | Resistance | 1.95Ω |
| High Light | Nema 23 Linear Actuator,Linear Screw Stepper Motor,Stepper Linear Actuator | ||
Product Description
57BYGHL216-14 NEMA23 3.3V 10 Kg.cm linear stepping motor with CE ROHS ISO
57BYGHL216-14: linear step motor
Step Angle: 1.8°
Step Accuracy: ± 5%
Temperature Rise: 80 ℃ Max
Tr outer diameter * lead (pitch) + thread heads
57BYGHL216-14 Tr 8*8(P2) 4 heads
Electrical Specification:
Model Number | 57BYGHL216-14 |
Step Accuracy | ± 5% |
Step Angle | 1.8° |
Lead Wire | 4 |
Voltage (V) | 3.3 |
Current (A/Phase) | 1.7 |
Holding Torque (Kg.cm) | 10 |
| Resistance (Ω/phase) | 1.95 |
| Inductance (mH/phase) | 6.0 |
| Motor length (MM) | 51 |
| Motor Weight(Kg) | 0.65 |
| Insulation Class | B |
*Products can be customized by special request.

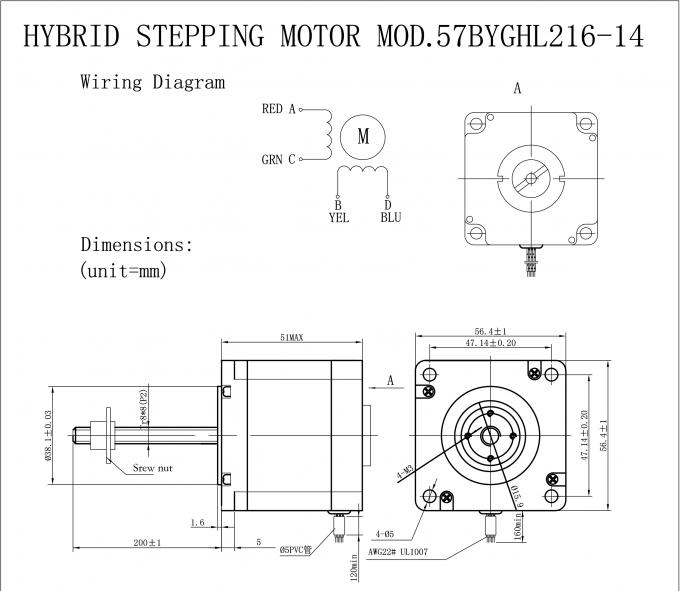

Mechanical Dimension
Specification of Other Models
| MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (KG.CM) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 57BYGHL013-15 | 1.8 | 4 | 2.7 | 1.5 | 1.8 | 4.0 | 4.0 | 41 | 0.45 |
| 57BYGHL216-10 | 1.8 | 4 | 3.3 | 1.7 | 1.95 | 6.0 | 10.0 | 51 | 0.65 |
| 57BYGHL401-03 | 1.8 | 4 | 6.0 | 0.6 | 10.0 | 32.0 | 9.0 | 56 | 0.70 |
| 57BYGHL602-07 | 1.8 | 4 | 10.4 | 0.8 | 13.0 | 42.0 | 19.8 | 78 | 1.00 |
| 57BYGHL815-01 | 1.8 | 4 | 7.36 | 1.6 | 4.6 | 16.0 | 20.0 | 84 | 1.13 |
*Products can be customized by special request.
When it comes to quality aspects, TB-Motor was qualified by ISO Certificate, CE, and Rohs. The product quality has also been recognized by many customers.
TB-Motor is also proud of its research and development strength. With the support of professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.
