Nema 23 Motor Stepper 0.9 Degree 6 Wires 8 Kg.Cm Holding Torque
Place of Origin | China |
---|---|
Brand Name | TB-Motor |
Certification | CE ROHS ISO |
Model Number | 57BYGHM401 |
Minimum Order Quantity | 50 |
Price | USD |
Packaging Details | Carton with Inner Foam Box, Pallet |
Delivery Time | 25 DAYS |
Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 10000 PCS/MONTH |
GET AN ESTIMATE NOW
Leave a Message
Product Details
Product Name | Hybrid Stepping Motor | Step Accuracy | ± 5% |
---|---|---|---|
Temperature Rise | 80 ℃ Max | Ambient Temperature | -20℃~+50℃ |
Holding Torque | 8 Kg.cm | Lead Wire | 6 |
Max Axial Force | 60 N | Step Angle | 0.9 Degree |
Rated Voltage | 7.4 V | Resistance | 7.4 Ohms/Phase |
Current | 1 A | Insulation Class | B |
High Light | 0.9 Degree Nema 23 Motor Stepper,6 Wires Nema 23 Motor Stepper,8 Kg.Cm Hybrid Stepper Motor |
Product Description
Nema 23 Motor Stepper High Quality 0.9 Degree 6 Wires 8 Kg.cm Of Holding Torque
0.9 Degree 57mm *57mm NEMA 23 Hybrid Stepper Motor High Power 7.4 V
Electrical Specification
Step Angle | 0.9°/Step |
Rated Voltage | 7.4 V |
Current | 1 A/Phase |
Resistance | 7.4 Ohms/Phase |
Inductance | 17 MH/Phase |
Holding Torque | 8 Kg.cm |
Insulation Class | B |

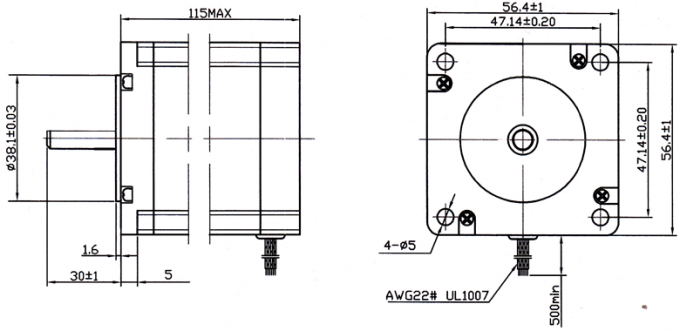

Mechanical Dimension
Production Process
Strict Control Of Material

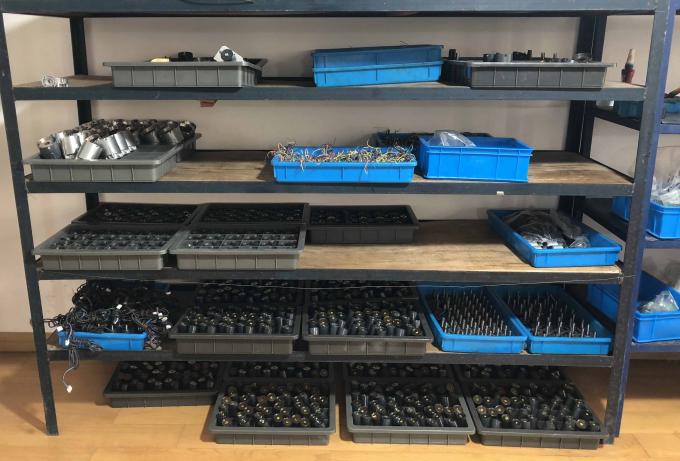

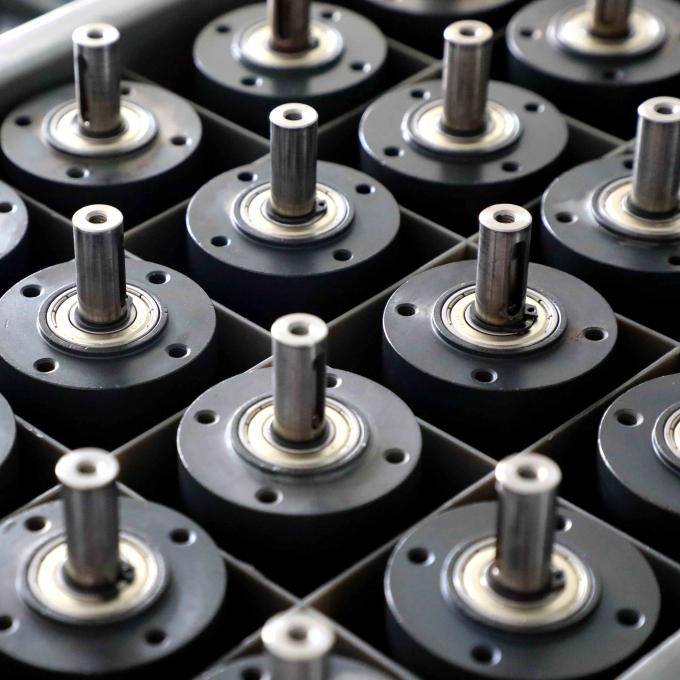

Gearbox | Material Storage | Split Riveting |

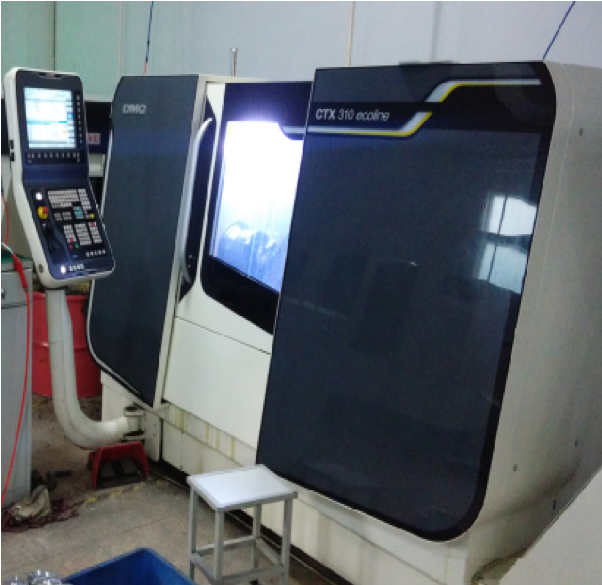

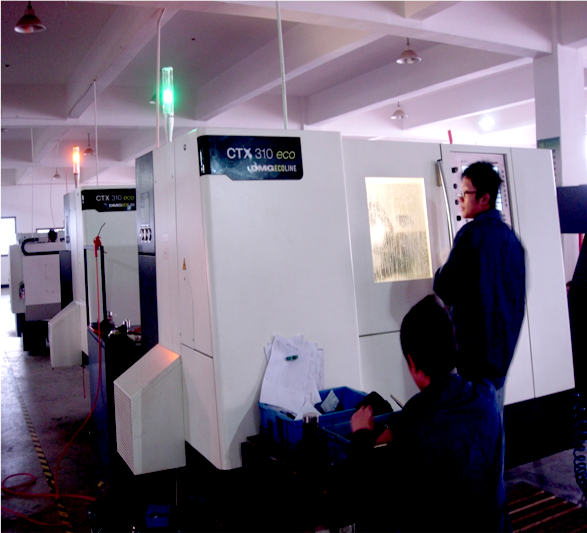

Production Equipment
CNC-1 | CNC-2 | Machining Center |

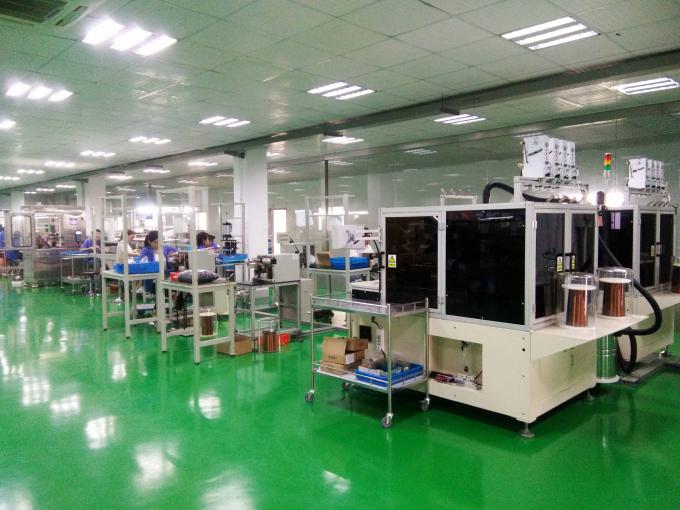

Large-scale Production

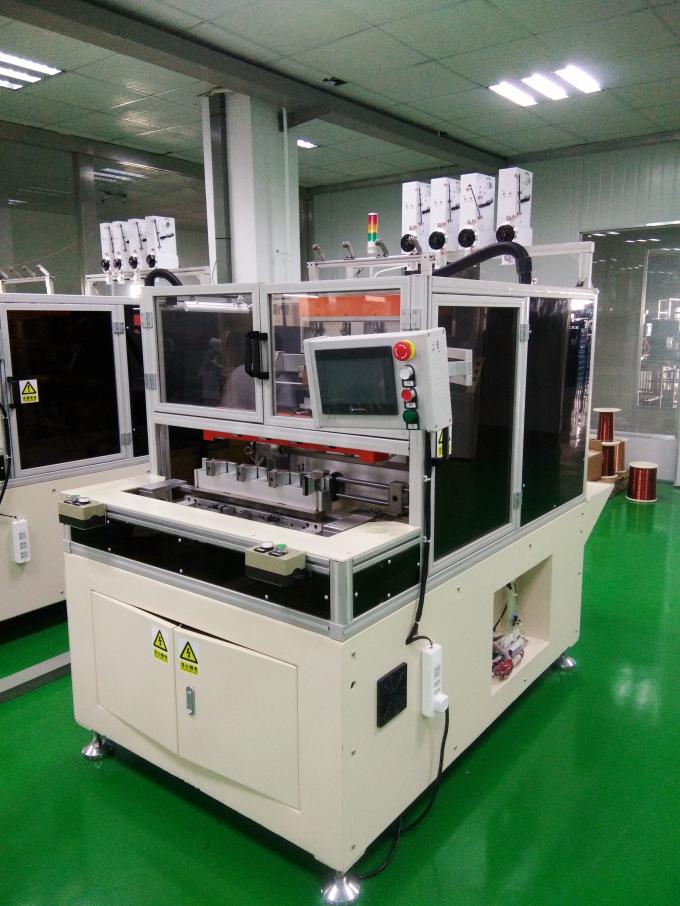

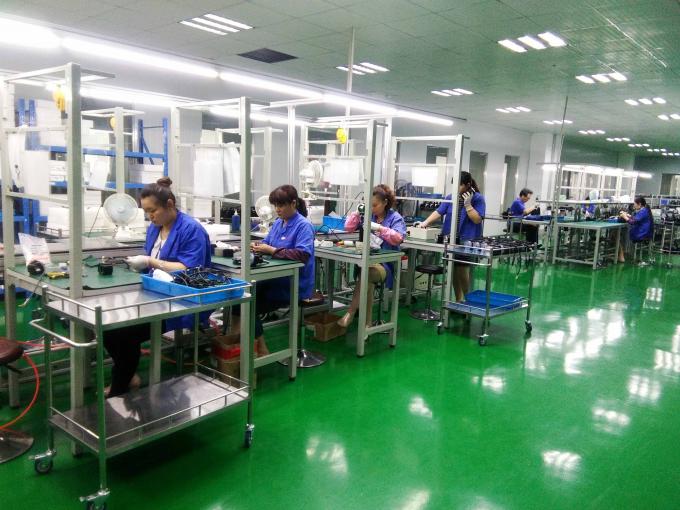

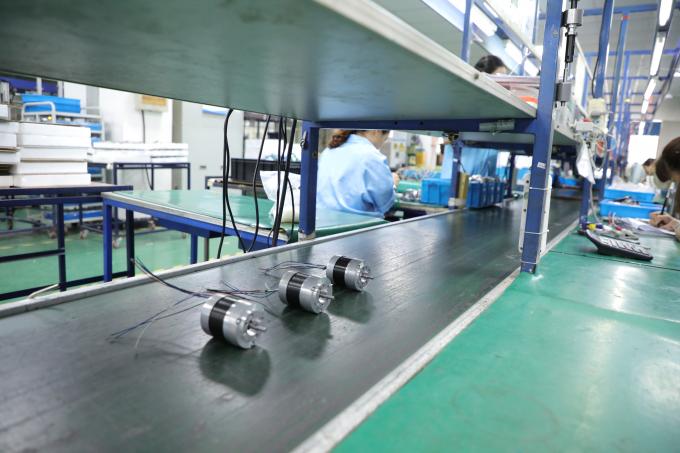

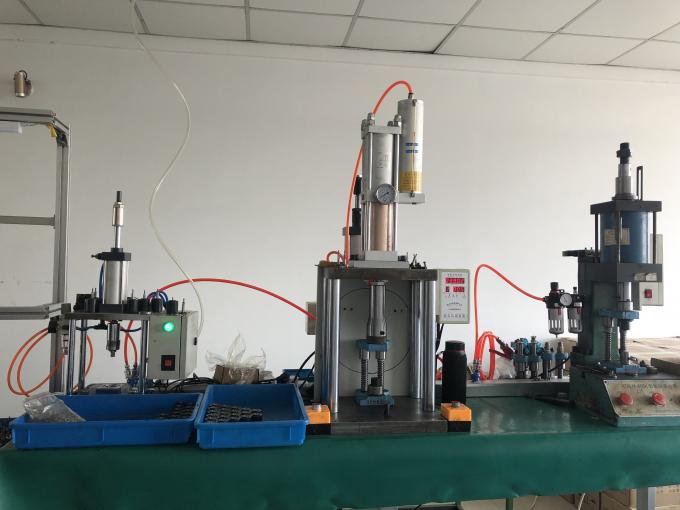

Servo Pipeline | Assembly Line | Automatic Assembly Line |

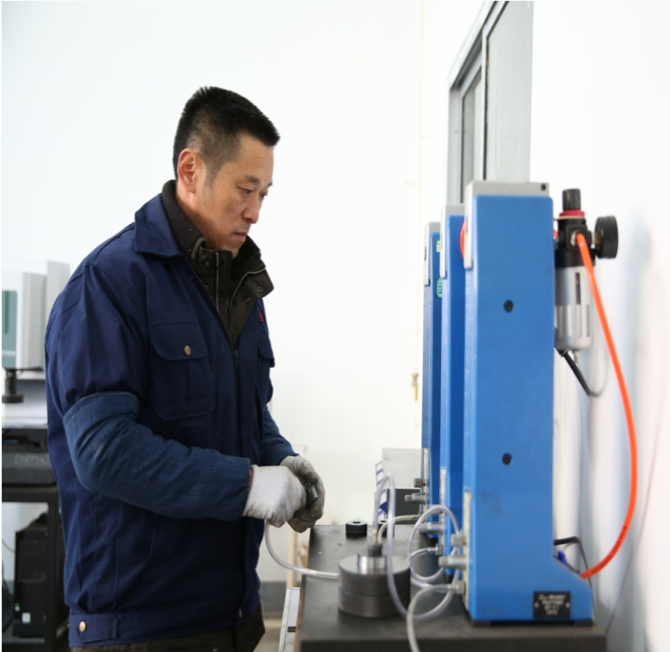

Strict Inspection

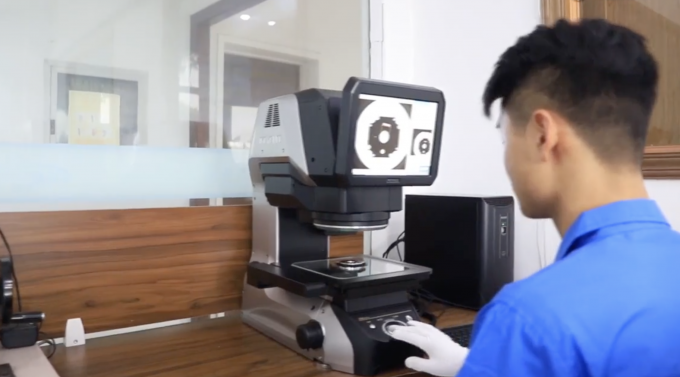

End Cover Bearing Inspection | Shaft Shape Check | Shape Inspection |

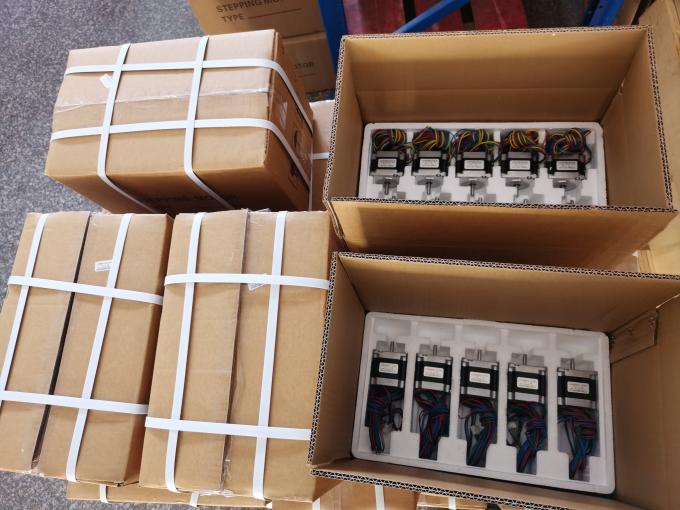

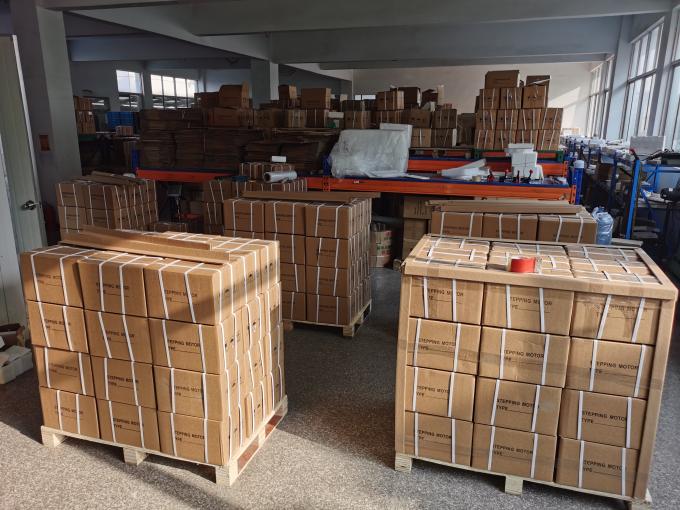

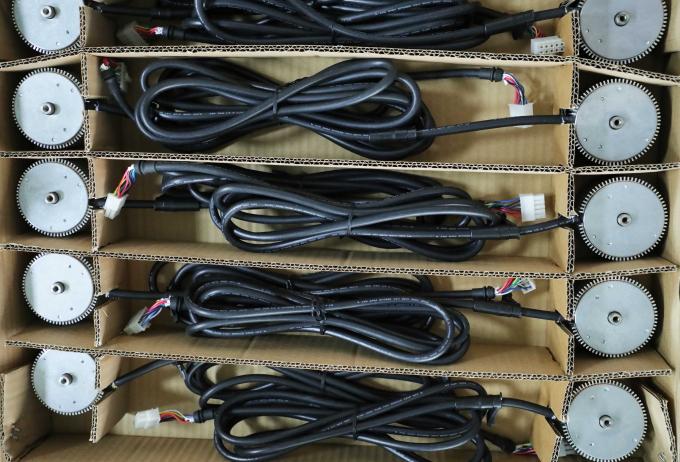

Bulk Shipment
