Nema 24 60mm Hybrid Stepper Motor 1.8 Step Angle 4 Or 6 Lead Wire 14.7V 4.2A
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 60HS |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepper Motor | Step Angle | 1.8 ° |
|---|---|---|---|
| Rated Voltage | 3.9V-14.7V | Current | 1.5A-4.2A |
| Number Of Leads | 4 Or 6 | Dielectric Strength | 500VAC 1 Minute |
| Step Accuracy | ±5% | Insulation Resistance | 100MΩ Min.500VC DC |
| MAX Radial Forcece | 75N (20mm From Front Flange) | MAX Axial Force | 15N |
| High Light | 60mm Hybrid Stepper Motor,Nema 24 Hybrid Stepper Motor,1.8 Degree Stepper Motor 4.2A | ||
Product Description
Nema 24 60mm Hybrid Stepper Motor 1.8 Step Angle 4 or 6 Lead Wire 14.7V 4.2A Factory Bulk Sale
A stepper motor, also known as step motor or stepping motor, is a brushless DC electric motor that divides a full rotation into a number of equal steps. The motor’s position can be commanded to move and hold at one of these steps without any position sensor for feedback.A hybrid stepper motor is a combination of the variable reluctance and permanent magnet type motors.
Stepper motors are DC motors that move in discrete steps. They have multiple coils that are organized in groups called “phases”. By energizing each phase in sequence, the motor will rotate, one step at a time.
Electrical Specification Of Hybrid Stepper Motor
| MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (KG.CM) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
| 60HS63-1506-01 | 1.8 | 6 | 14.7 | 1.5 | 9.8 | 10.6 | 14 | 63 | 1.0 |
| 60HS67-1804-003A | 1.8 | 4 | 4.68 | 1.8 | 2.6 | 7.8 | 16 | 67 | 1.1 |
| 60HS67-2204-001 | 1.8 | 4 | 3.96 | 2.2 | 1.8 | 5.0 | 16 | 67 | 1.1 |
| 60HS87-3504-001 | 1.8 | 4 | 4.0 | 3.5 | 1.15 | 4.5 | 27 | 87 | 1.4 |
| 60HS87-3008-003 | 1.8 | 8 | 3.9 | 3.0 | 1.3 | 3.2 | 21 | 87 | 1.4 |
| 60HS101-3008-001 | 1.8 | 8 | 6.0 | 3.0 | 2.0 | 4.0 | 25 | 101 | 1.6 |
| 60HS101-4204-002 | 1.8 | 4 | 4.2 | 4.2 | 1.0 | 4.0 | 33 | 101 | 1.6 |
You can download our 60HS Hybrid Stepper Motor product brochure:60HS.pdf

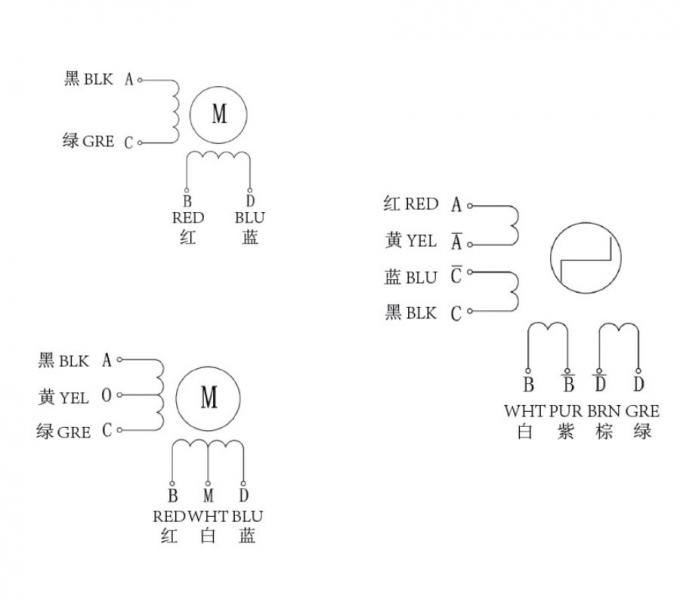

Wiring Diagram

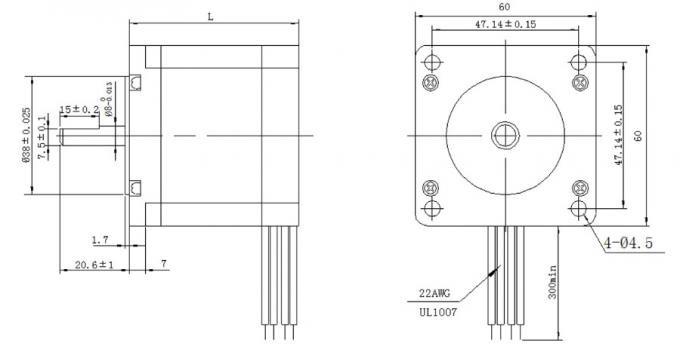

Mechanical Dimension Of Hybrid Stepper Motor
