Nema 34 85mm Hybrid Stepper Motor 1.2 Step Angle 3 Lead Wire 21V 7A
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 85BYGH350 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepper Motor | Step Angle | 1.2 ° |
|---|---|---|---|
| Rated Voltage | 3.1V-21V | Current | 1.75A-7A |
| No. Of Leads | 3 | Dielectric Strength | 500VAC 1 Minute |
| Step Accuracy | ±5% | Insulation Resistance | 100MΩ Min.500VC DC |
| MAX Radial Forcece | 220N (20mm From Front Flange) | MAX Axial Force | 60N |
| High Light | 85mm Hybrid Stepper Motor,3 Lead Wire Hybrid Stepper Motor,Nema 34 Stepper Motor 21V 7A | ||
Product Description

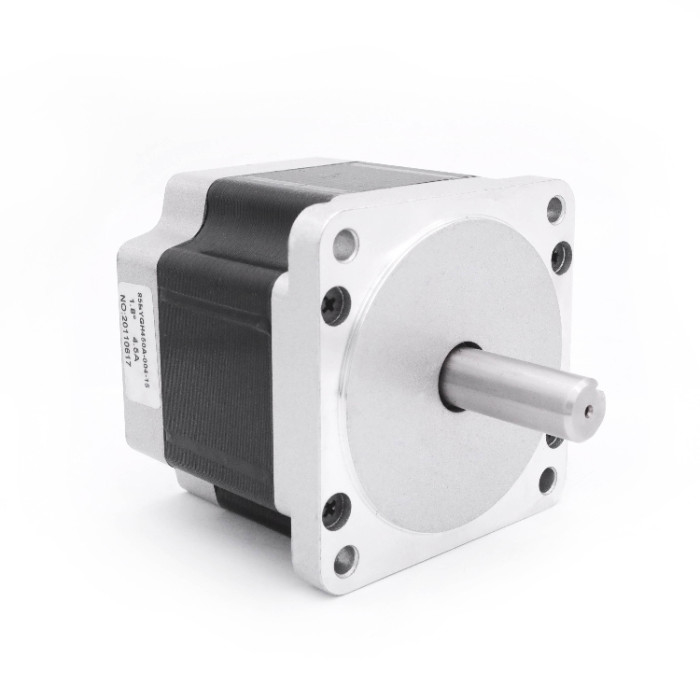

Nema 34 85mm Hybrid Stepper Motor High quality assurance 1.2 Step Angle 3 Lead Wire 21V 7A
The features of the hybrid stepper motor mainly include
Exact controlling of position
The motor includes an Electromagnetic Brake
Controlling is simple using pulse signals
At the stopped location, this motor holds itself
High torque can be generated through compact size
The advantages of Hybrid Stepper Motor are as follows:-
The torque of this motor is high
It gives detent torque including de-energized windings
The step length is less
The efficiency of this motor is high at less speed.
The stepping rate is low.
Electrical Specification Of Hybrid Stepper Motor
| MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (N.M) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
| 85BYGH350A-001 | 1.2 | 3 | 3.1 | 3.1 | 1.0 | 4.1 | 2.0 | 68 | 1.7 |
| 85BYGH350A-002 | 1.2 | 3 | 7.4 | 1.75 | 4.25 | 12.3 | 2.3 | 68 | 1.7 |
| 85BYGH350B-001-17 | 1.2 | 3 | 3.1 | 5.8 | 0.53 | 2.5 | 3.2 | 97 | 2.9 |
| 85BYGH350B-002-02 | 1.2 | 3 | 10.8 | 2.0 | 5.4 | 23.0 | 4.5 | 97 | 2.9 |
| 85BYGH350C-001-02 | 1.2 | 3 | 3.7 | 7.0 | 0.53 | 2.5 | 5.6 | 127 | 4.0 |
| 85BYGH350C-003 | 1.2 | 3 | 21.0 | 3.5 | 6.0 | 25.0 | 6.8 | 127 | 4.0 |
You can download our 85BYGH350 Hybrid Stepper Motor product brochure:85BYGH350.pdf
Wiring Diagram
Mechanical Dimension Of Hybrid Stepper Motor
Product Range Of TB-Motor
Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Assembly Line Of Stepper Motor
Inspection Equipment
Packing&Delivery
