Nema 34 Brushless DC Motor 11A 565W 4Pole 48V 310V 3Phase 1.8Nm 3000RPM 80mm
Place of Origin | China |
---|---|
Brand Name | TB-Motor |
Certification | CE ROHS ISO |
Model Number | 80BL |
Minimum Order Quantity | 50 |
Price | USD |
Packaging Details | Carton with Inner Foam Box, Pallet |
Delivery Time | 28-31 DAYS |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 5000 PCS/MONTH |
Leave a Message
Product Details
Product Name | Brushless DC Motor | No Of Poles | 4 Poles |
---|---|---|---|
No.of Phase | 3 Phase | Power | 565W |
Winding Type | Star | Rated Voltage | 48V-310V |
Max Axial Force | 45N | Hall Effect Angle | 120° Electrical Angle |
Insulation Class | B | MAX Radial Force | 115N (10mm From Front Flange) |
Dielectric Strength | 600VAC 1 Minute | Insulation Resistance | 100MΩ Min.500VC DC |
High Light | Nema 34 Brushless DC Motor 11A,4Pole Brushless DC Motor 48V,1.8Nm Bldc Motor 48 Volt |
Product Description
80mm Nema 34 Brushless DC Motor 11A 565W 4Pole 48V 310V 3Phase 1.8Nm 3000RPM
The hall effect angle of our 80BL series is 120°.And the IP level is IP40.The winding type is Star.
As an experienced brushless supplier, Hetai has fully understood the advantage Brushless DC motors (BLDC) that feature high efficiency and excellent controllability and are widely used in many applications. The Brushless DC motor has power-saving advantages relative to other motor types. The advantage of the brushless motor is that the low noise can be customized and the performance is stable.
Electrical Specification Of Brushless DC Motor
Model | Model | Model | ||
Specification | Unit | 80BL01A | 80BL02A | 80BL03A |
Number Of Phases | Phase | 3 | 3 | 3 |
Number Of Poles | Poles | 4 | 4 | 4 |
Rated Voltage | VDC | 48 | 48 | 310 |
Rated Speed | Rpm | 3000 | 3000 | 3000 |
Rated Current | A | 6.36 | 11.0 | 2.43 |
Rated Torque | N.m | 0.7 | 1.2 | 1.8 |
Rated Power | W | 220 | 376 | 565 |
Peak Torque | N.m | 2.1 | 3.6 | 5.4 |
Peak Current | Amps | 19.0 | 33.0 | 7.3 |
Torque Constant | N.m/A | 0.11 | 0.11 | 0.74 |
Back EMF constant | V/kRPM | 12 | 12 | 77.5 |
Body Length | mm | 105.0 | 132.5 | 160 |
Weight | Kg | 2.19 | 2.80 | 3.50 |
You can download our 80BL Brushless DC Motor product brochure:80BL.pdf
FUNCTION | COLOR | |
+5V | RED | UL1007 26AWG |
HALL A | YELLOW | |
HALLB | GREEN | |
HALLC | BLUE | |
GND | BLACK | |
PHASE A | YELLOW | UL1015 20AWG |
PHASE B | GREEN | |
PHASE C | BLUE |

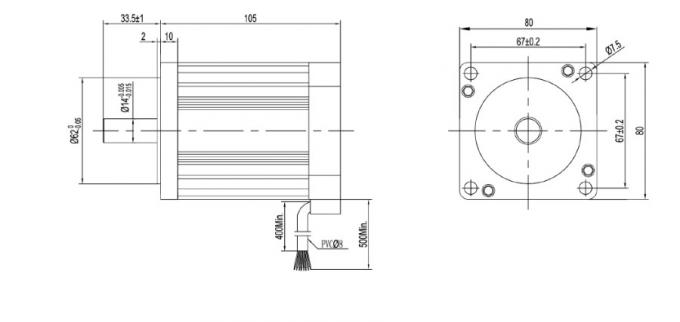

Mechanical Dimension Of Brushless DC Motor
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Product Range Of TB-Motor
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.
Automatic Assembly Line
Laser Welding Machine
TB-Motor is aiming to provide high-quality, comprehensive after-sales service. Strive for continuous improvement and excellence. If you have any questions, you will be on duty 24 hours a day, so you have no worries.
Looking forward to the future, we will work hard to create with a good attitude and serious attitude, meet the challenges of modern high-tech, and continue to expand our business areas to share the achievements of automation technology with more customers!
