Nema 34 Stable Performance Bldc Brushless DC Motor 86mm 550w

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	86BLF06C
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	28-31 DAYS
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000 PCS/MONTH

GET AN ESTIMATE NOW

Product Details

Product Name	Brushless DC Motor	No. Of Poles	8 Poles
No. Of Phase	3 Phase	Rated Voltage	48V
Rated Current	16.33A	Rated Speed	3000RPM
Rated Torque	1.8N.M	Rated Power	565W
Winding Type	Star	Insulation Class	B
High Light	Brushless DC Motor 86mm,Nema 34 Brushless DC Motor 550w,86mm Nema 34 Bldc Motor

Product Description

Nema 34 86mm 550w nema34 factory supply stable performance bldc motor brushless motor

As an experienced brushless supplier, Hetai has fully understood the advantage Brushless DC motors (BLDC) that feature high efficiency and excellent controllability and are widely used in many applications. The BLDC motor has power-saving advantages relative to other motor types. The advantage of the brushless motor is that the low noise can be customized and the performance is stable.
Electrical Specification Of Brushless DC Motor

Product Name:	Brushless Motor
Dielectric Strength:	500V AC 1minute
Ambient Temperature:	-20℃~50℃
Insulation resistance:	100MΩ Min.500V DC
Voltage(VDC):	48(VDC)
Power(W):	565
Rated Speed(RPM):	3000
Rated Torque(N.M):	1.8
Rated Current(A):	16.33

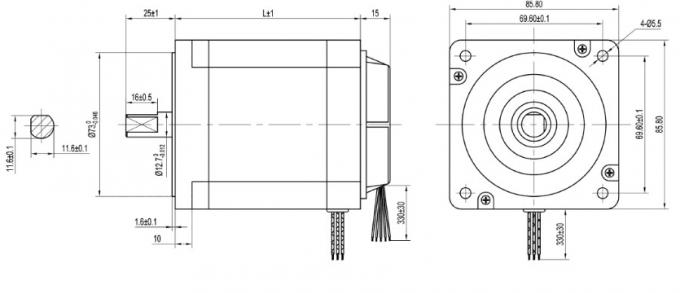

Mechanical Dimension Of Brushless DC Motor

Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Product Range Of TB-Motor

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.
