Nema 42 110BLF01 High Torque Brushless Dc Motor Bldc Motor

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	110BLF01
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	28-31 DAYS
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000 PCS/MONTH

GET AN ESTIMATE NOW

Product Details

Product Name	Brushless DC Motor	Number Of Poles	8 Poles
Number Of Phase	3 Phase	Rated Voltage	310V
Rated Torque	3.5N.M	Rated Speed	3000RPM
Power	110W	Rated Current	3.17A
Winding Type	Star	Insulation Class	B
High Light	3.5NM Torque Brushless Dc Motor,Nema42 Brushless Dc Motor,310V Bldc Motor

Product Description

Factory bulk sale nema 42 110BLF01 high torque brushless dc motor bldc motor

The advantages of brushless DC motors include long life, little or no maintenance, and high efficiency. The disadvantages are high initial cost, complex motor speed controllers, and other types of DC motors that do not require commutation, including unipolar motors and ball bearing motors. Portability on battery power, high cranking torque, bi-directional operation, designed for variable speed, excellent speed control and unmatched reliability.

Electrical Specification Of Brushless DC Motor

Product Name:	Brushless Motor
Dielectric Strength:	500V AC 1minute
Ambient Temperature:	-20℃~50℃
Insulation resistance:	100MΩ Min.500V DC
Hall effect angle:	120° electrical angle
Voltage(VDC):	310(VDC)
Power(W):	1100
Rated Speed(RPM):	3000
Rated torque(N.M):	3.5

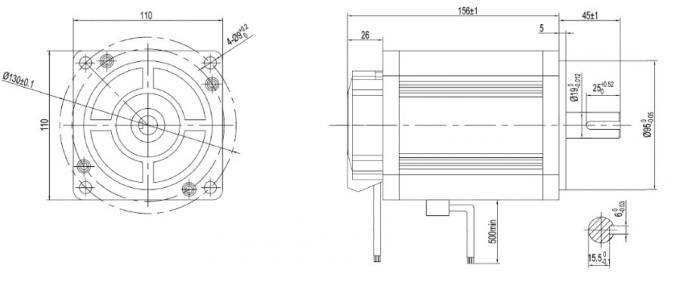

Mechanical Dimension Of Brushless DC Motor

Experienced Manufacturer

Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Product Range Of TB-Motor

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.
