Nema 42 110mm High Performance Hybrid Stepper Motor 1.8 Step Angle 4 Lead Wire 9V 8A
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 110BYGH |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepper Motor | Step Angle | 1.8 ° |
|---|---|---|---|
| Current | 5.5A-8A | Rated Voltage | 4.8V-9V |
| No. Of Leads | 4 | Step Accuracy | ±5% |
| Insulation Resistance | 100MΩ Min.500VC DC | Dielectric Strength | 500VAC 1 Minute |
| MAX Radial Forcece | 330N (20mm From Front Flange) | MAX Axial Force | 100N |
| High Light | 9V 8A Hybrid Stepper Motor,Nema42 Hybrid Stepper Motor 110mm,8A 1.8 Degree Stepper Motor | ||
Product Description
Nema 42 110mm High Performance Hybrid Stepper Motor 1.8 Step Angle 4 Lead Wire 9V 8A
Advantages:
1. The rotation angle of the motor is proportional to the input pulse.
2. The motor has full torque at a stand still(if the windings are energized)
3. Precise positioning and repeatability of movement since good stepper motors have an accuracy of 3 – 5% of a step and this error is noncumulative from one step to the next.
4. Excellent response to starting/stopping/reversing.
5. Very reliable since there are no contact brushes in the motor. Therefore the life of the motor is simply dependant on the life of the bearing.
6. The motors response to digital input pulses provides open-loop control, making the motor simpler and less costly to control.
7. It is possible to achieve very low-speed synchronous rotation with a load that is directly coupled to the shaft.
8. A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the input pulses.
Electrical Specification Of Hybrid Stepper Motor
| MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (N.M) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
| 110BYGH80-001AG | 1.8 | 4 | 9.0 | 6.0 | 1.5 | 14.0 | 8.5 | 80 | 5.0 |
| 110BYGH99-001-10 | 1.8 | 4 | 4.95 | 5.5 | 0.9 | 12.0 | 11.2 | 99 | 5.0 |
| 110BYGH150-001 | 1.8 | 4 | 5.44 | 6.8 | 0.8 | 12.0 | 21 | 150 | 8.4 |
| 110BYGH165-001-03 | 1.8 | 4 | 4.80 | 6.0 | 0.8 | 14.0 | 24 | 165 | 9.5 |
| 110BYGH201-001 | 1.8 | 4 | 5.36 | 8.0 | 0.76 | 16.0 | 30 | 201 | 12.0 |
You can download our 110BYGH Hybrid Stepper Motor product brochure:110BYGH.pdf
Wiring Diagram

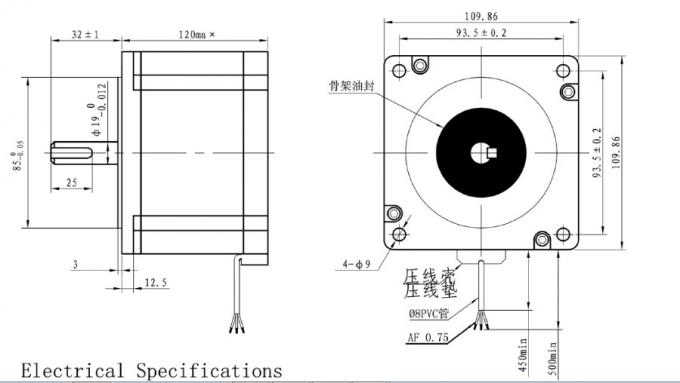

Mechanical Dimension Of Hybrid Stepper Motor
Product Range Of TB-Motor
Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Assembly Line Of Stepper Motor
Packing&Delivery
