Nema 42 Brushless DC Motor Low Noise 110mm 2040W 8Pole 310V 3Phase 6.5Nm 3000RPM
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 110BLF |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Brushless DC Motor | Number Of Poles | 8 Poles |
|---|---|---|---|
| Number Of Phase | 3 Phase | Power | 1100-2040W |
| Winding Type | Star | Rated Voltage | 310V |
| Max Axial Force | 100N | Insulation Class | B |
| MAX Radial Force | 330N (10mm From Front Flange) | Dielectric Strength | 600VAC 1 Minute |
| Insulation Resistance | 100MΩ Min.500VC DC | Hall Effect Angle | 120° Electrical Angle |
| High Light | 110mm Nema 42 Brushless DC Motor,3000RPM 310V Brushless DC Motor,3Phase 6.5Nm Bldc Brushless Motor | ||
Product Description
Nema 42 Brushless DC Motor Low Noise 110mm 8.77A 2040W 8Pole 310V 3Phase 6.5Nm 3000RPM
A Brushless DC motor, for the same mechanical work output, will usually be smaller than a brushed DC motor, and always smaller than an AC induction motor. The brushless dc motor is smaller because its body has less heat to dissipate. From that standpoint, BLDC motors use less raw material to build, and are better for the environment.
Brushless DC motors are used in pumps, power tools, conveyor belts,in robots and machines, practically wherever electrical energy is converted into motion. Many Electric motors for example are used in motor vehicles and provide more safety, intelligence and comfort.In many applications, brushless DC motors can offer decisive advantages in terms of power density, which saves weight and reduces fuel consumption and pollutant emissions.
Electrical Specification Of Brushless DC Motor
| MODEL | NO.OF POLES | NO.OF PHASE | RATED VOLTAGE (VDC) | RATED TORQUE (N.M) | RATED SPEED (RPM) | RATED CURRENT (AMPS) | OUTPUT POWER (WATTS) | PEAK TORQUE (N.M) | PEAK CURRENT (AMPS) | TORQUE CONSTANT (N.M/AMPS) | ANTI – EMF CONSTANT (V/KRPM) | MOTOR HEIGHT (MM) | WEIGHT (KG) |
| 110BLF01 | 8 | 3 | 310 | 3.5 | 3000 | 4.72 | 1100 | 10.5 | 14.0 | 0.74 | 77.5 | 156.0 | 5.08 |
| 110BLF02 | 8 | 3 | 310 | 4.5 | 3000 | 6.10 | 1413 | 13.5 | 18.3 | 0.74 | 77.5 | 177.0 | 6.06 |
| 110BLF03 | 8 | 3 | 310 | 6.5 | 3000 | 8.77 | 2040 | 19.5 | 26.3 | 0.74 | 77.5 | 216.0 | 7.88 |
You can download our 110BLF Brushless DC Motor product brochure:110BLF.pdf
| FUNCTION | COLOR | |
| +5V | RED | UL1007 26AWG |
| HALL A | YELLOW | |
| HALLB | GREEN | |
| HALLC | BLUE | |
| GND | BLACK | |
| PHASE A | YELLOW | UL1332 16AWG |
| PHASE B | GREEN | |
| PHASE C | BLUE |

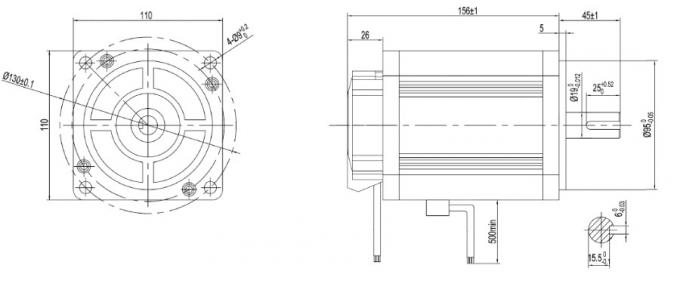

Mechanical Dimension Of Brushless DC Motor
