1.5 Kw Nema 42 Brushless Dc Motor Permanent Magnet 2300rpm 230v 6.5nm For Shredder
Place of Origin | China |
---|---|
Brand Name | TB-Motor |
Certification | CE ROHS ISO |
Model Number | 110BLF03A |
Minimum Order Quantity | 50 |
Price | USD |
Packaging Details | Carton with Inner Foam Box, Pallet |
Delivery Time | 25 DAYS |
Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
Product Name | Brushless DC Motor | Rated Power | 1500W |
---|---|---|---|
Winding Type | Star | Ambient Temperature | -20℃~+50℃ |
Hall Effect Angle | 120° Electrical Angle | Insulation Class | B |
Insulation Resistance | 100MΩ Min.500VC DC | Dielectric Strength | 1500VAC 1 Minute |
Max Radial Force | 330N (10mm From Front Flange) | Max Axial Force | 100N |
High Light | 1500w Brushless Dc Motor 2300rpm 6.5nm,nema 42 brushless motor 2300rpm 6.5nm,nema 42 bldc motor 2300rpm 6.5nm |
Product Description
NEMA 42 powerful 1500w Low Noise IP54 industrial brushless dc motor for Shredder
Resistance ————————————-1.47OHMS
Insulation —————————————Class B
Withstand voltage —————————-3000VAC, 20mA,1S
IP level —————————————- IP 54
Ambient Temperature Range ————- -20°C~ +50°C
Storage Temperature Range ————- -30°C~ +60°C
Insulation Resistance ———————- 100M Ω MIN. 500V DC
Dielectric Strength ————————- 1500V AC 1min
Max. radial force ————————— 330N (10mm from front flange)
Max. axial force —————————- 100N
Electrical Specification
Specification | Unit | 110BLF03A |
Number Of Phases | Phase | 3 |
Number Of Poles | Poles | 8 |
Nominal Voltage | VDC | 230 |
Rated Speed | Rpm | 2300 |
No-load Speed | Rpm | 3500 |
No-load Current | A | 2 |
Rated Torque | N.m | 6.5 |
Rated Power | W | 1500 |
Peak Torque | N.m | 19.5 |
Torque Constant | N.m/A | 0.887 |
Back EMF constant | V/kRPM | 92.5 |
Body Length | mm | 216.0 |
Weight | Kg | 7.88 |
*Products can be customized by special request.
Wiring Diagram
FUNCTION | COLOR | ||
+5V | RED | UL1007 26AWG | |
HALL A | YELLOW | ||
HALLB | GREEN | ||
HALLC | BLUE | ||
GND | BLACK | ||
PHASE A | YELLOW | UL1332 16AWG | |
PHASE B | GREEN | ||
PHASE C | BLUE |

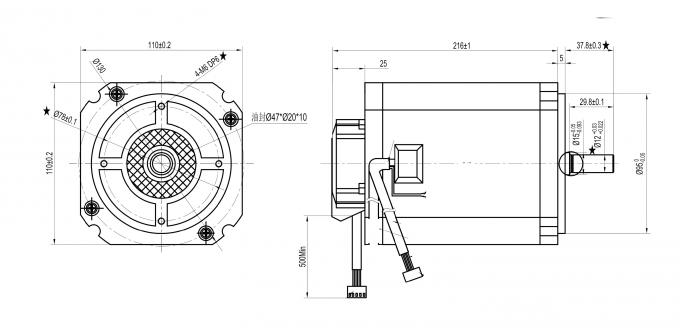

Mechanical Dimension
Product Range Of TB-Motor
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.
