NEMA16 39BYGX200A High Torque Stepper Motor 39mm 14.4V 0.4A

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	39BYGX200A
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	28-31 DAYS
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000 PCS/MONTH

GET AN ESTIMATE NOW

Product Details

Product Name	Hybrid Stepper Motor	Step Angle	1.8 °
Lead Wire	4	Rated Voltage	14.4V
Current	0.4A	Resistance	36 Ω
Inductance	33mH	Holding Torque	1.7 Kg.cm
Motor Height	25 Mm	Motor Weight	0.14 Kgs
High Light	High Torque Stepper Motor 39mm,High Torque Stepper Motor 14.4V,NEMA16 Stepper Motor 0.4A

Product Description

NEMA16 39mm factory direct sale 39BYGX200A 14.4V 0.4A wholesale high quality high torque stepper motor

Advantages of stepper motors
1. Since there is no brush, the reliability is high, so the life of the motor only depends on the life of the bearing;
2. The response of the motor is only determined by the digital input pulse, so open-loop control can be used, which makes the structure of the motor relatively simple and the cost is controlled;
3. Only by connecting the load directly to the shaft of the motor can also rotate synchronously at very low speed.
4. Since the speed is proportional to the pulse frequency, it has a relatively wide speed range.

Electrical Specification Of Hybrid Stepper Motor

Product Name	Hybrid Stepper Motor
Step Accuracy	± 5%
Dielectric Strength	500V AC 1minute
Ambient Temperature	-20℃~50℃
Insulation resistance	100MΩ Min.500V DC
Step Angle	1.8°
Lead wire	4
Voltage (V)	14.4
Current (A/Phase)	0.4
Holding Torque (Kg.cm)	1.7 Kg.cm

NEMA16 39BYGX200A High Torque Stepper Motor 39mm 14.4V 0.4A 0

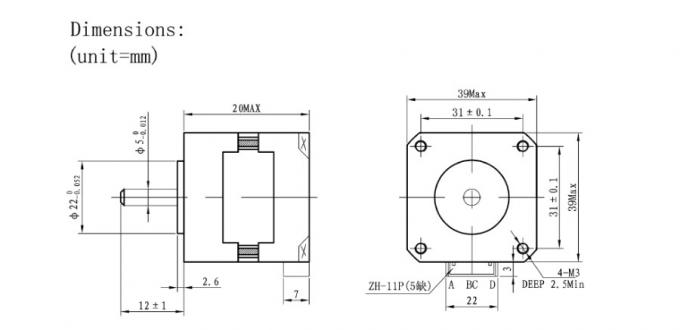

Mechanical Dimension Of Hybrid Stepper Motor

Product Range Of TB-Motor

Our main products are Stepper Motor, Planetary Gearbox & Gearbox Motor, Brushless DC Motor, Servo Motor.

Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
