NEMA17 42BYGH208-52A High Torque Stepper Motor 12V 0.4A 42mm

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	42BYGH208-52A
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	28-31 DAYS
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000 PCS/MONTH

GET AN ESTIMATE NOW

Product Details

Product Name	Hybrid Stepper Motor	Step Angle	1.8 °
Lead Wire	4	Rated Voltage	12V
Current	0.4A	Resistance	30 Ω
Inductance	42mH	Holding Torque	2.5 Kg.cm
Motor Height	34 Mm	Motor Weight	0.20 Kgs
High Light	NEMA17 High Torque Stepper Motor,42mm High Torque Stepper Motor12V 0.4A Hybrid Stepper Motor

Product Description

NEMA17 42mm hot sale 42BYGH208-52A 12V 0.4A wholesale high quality high torque stepper motor

Stepper motor is an open-loop control motor that converts electrical pulse signals into angular displacement or linear displacement. It is the main executive element in modern digital program control systems and is widely used. . In the case of non-overload, the speed and stop position of the motor only depend on the frequency and number of pulses of the pulse signal, and are not affected by the load change. When the stepper driver receives a pulse signal, it drives the stepper motor to press The set direction is rotated by a fixed angle, called “step angle”, and its rotation is performed step by step at a fixed angle. The angular displacement can be controlled by controlling the number of pulses, so as to achieve the purpose of accurate positioning; at the same time, the speed and acceleration of the motor rotation can be controlled by controlling the pulse frequency, so as to achieve the purpose of speed regulation.

Electrical Specification Of Hybrid Stepper Motor

Product Name	Hybrid Stepper Motor
Step Accuracy	± 5%
Dielectric Strength	500V AC 1minute
Ambient Temperature	-20℃~50℃
Insulation resistance	100MΩ Min.500V DC
Step Angle	1.8°
Lead wire	4
Voltage (V)	12
Current (A/Phase)	0.4
Holding Torque (Kg.cm)	2.5 Kg.cm

NEMA17 42BYGH208-52A High Torque Stepper Motor 12V 0.4A 42mm 0

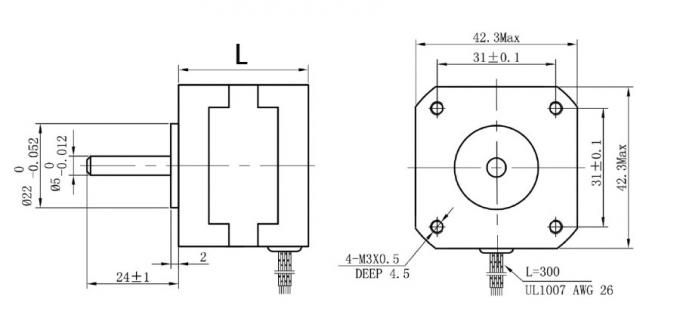

Mechanical Dimension Of Hybrid Stepper Motor

Product Range Of TB-Motor

Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
