Nema17 Tr8x8 300mm Linear Stepper Motor With Screw Shaft 42BYGH 6 Leads 3.2 Kgcm
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 42BYGHL636-01 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Linear Step Motor | Temperature Rise | 80 ℃ Max |
|---|---|---|---|
| Insulation Resistance | 100MΩ Min.500VC DC | Inductance | 7 MH |
| Max Axial Force | 10N | Dielectric Strength | 500VAC 1 Minute |
| Max Radial Force | 28N (20mm From Front Flange) | Ambient Temperature | -20℃~+50℃ |
| IP Level | IP40 | Step Accuracy | ± 5% |
| High Light | Nema17 Tr8x8 300mm Linear Stepper Motor,nema 17 stepper motor 42bygh,Linear Stepper Motor Nema 17 | ||
Product Description
42BYGHL636-01 NEMA 17 Linear step motor 6 leads 3.2 Kg.cm 40mm length
42BYGHL636-01 Tr 8*8(P2) 4 heads with screw nut
Tr outer diameter * lead (pitch) + thread heads
Its IP level is IP 40, the working temperature is -20℃~+50℃ and the temperature rise is 80 ℃ Max.
| Product Name: | Linear Step Motor | Temperature Rise: | 80 ℃ Max |
|---|---|---|---|
| Insulation Resistance: | 100MΩ Min.500VC DC | Inductance: | 7 MH |
| Max Axial Force: | 10N | Dielectric Strength: | 500VAC 1 Minute |
| Max Radial Force: | 28N (20mm From Front Flange) | Ambient Temperature: | -20℃~+50℃ |
| IP Level: | IP40 | Step Accuracy: | ± 5% |
Electrical Specification:
Model Number | 42BYGHL636-01 |
Step Accuracy | ± 5% |
Step Angle | 1.8° |
Lead Wire | 6 |
Voltage (V) | 6 |
Current (A/Phase) | 0.8 |
| Holding Torque (Kg.cm) | 3.2 |
| Resistance (Ω/phase) | 7.5 |
| Inductance (mH/phase) | 7 |
| Motor length (MM) | 40 |
| Motor Weight(Kg) | 0.3 |
| Insulation Class | B |
*Products can be customized by special request.

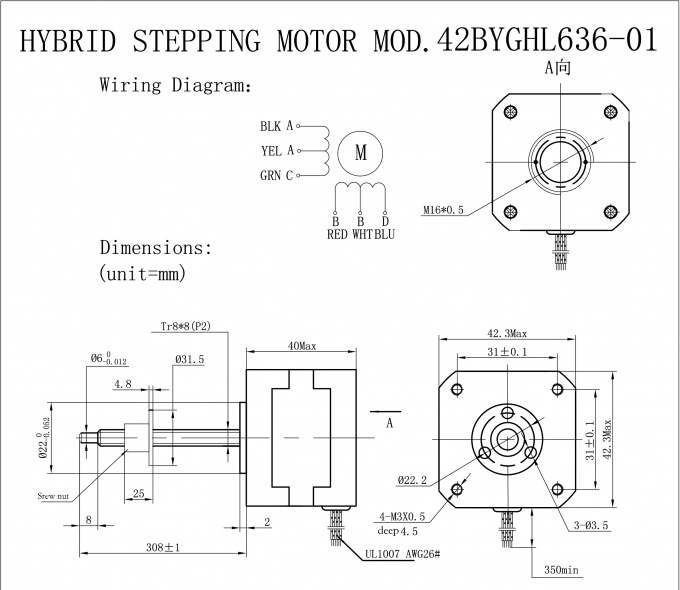

Mechanical Dimension
Specification of Other Models
| MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (KG.CM) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 57BYGHL013-15 | 1.8 | 4 | 2.7 | 1.5 | 1.8 | 4.0 | 4.0 | 41 | 0.45 |
| 57BYGHL216-10 | 1.8 | 4 | 3.3 | 1.7 | 1.95 | 6.0 | 10.0 | 51 | 0.65 |
| 57BYGHL401-03 | 1.8 | 4 | 6.0 | 0.6 | 10.0 | 32.0 | 9.0 | 56 | 0.70 |
| 57BYGHL602-07 | 1.8 | 4 | 10.4 | 0.8 | 13.0 | 42.0 | 19.8 | 78 | 1.00 |
| 57BYGHL815-01 | 1.8 | 4 | 7.36 | 1.6 | 4.6 | 16.0 | 20.0 | 84 | 1.13 |
*Products can be customized by special request.
