Nema23 2 Phase Hybrid Stepper Motor 57mm 2.7V
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 57BYGH435-71B |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepper Motor | Step Angle | 1.8 ° |
|---|---|---|---|
| Rated Voltage | 2.7V | Current | 3A |
| Phase | 2 | Dielectric Strength | 500VAC 1 Minute |
| Resistance/Phase | 12ohms | Holding Torque | 1.3Kg.cm |
| Inductance | 2.5mH | Certification | CE ROHS ISO |
| High Light | 2Phase Hybrid Stepper Motor,57mm 2.7V Hybrid Stepper Motor,3A Nema 23 Stepper Motor | ||
Product Description
TB-Motor hot sale new product 57mm nema23 stepper motor high quality stepping motor hybrid stepper motor
Advantages of step motor:
1. The angle of the motor rotation is proportional to the pulse number;
2. When the motor is stopped, it has the biggest torque (when the winding is exciting);
3. Because the accuracy of each step is three to five percent, and the one -step error will not be accumulated to the next step, there is a good position accuracy and repeatability of exercise;
4. Excellent start -up and response;
5. Because there is no brush and high reliability, the life of the motor depends only on the life of the bearings;
6. The response of the motor is determined only by the digital input pulse, so it can be used to control the loop control, which allows the structure of the motor to be simpler and controlled;
7. Just connect the load directly to the rotation of the motor can also be rotated simultaneously at low speed;
8. Because the speed is proportional to the pulse frequency, there is a wider speed range.
Electrical Specification Of Hybrid Stepper Motor
Product Name | |
Step Accuracy | ± 5% |
Dielectric Strength | 500V AC 1minute |
Ambient Temperature | -20℃~50℃ |
Insulation resistance | 100MΩ Min.500V DC |
Step Angle | 1.8° |
Lead wire | 4 |
Voltage (V) | 2.7 |
Current (A/Phase) | 3 |
Holding Torque (N.m) | 1.3 |

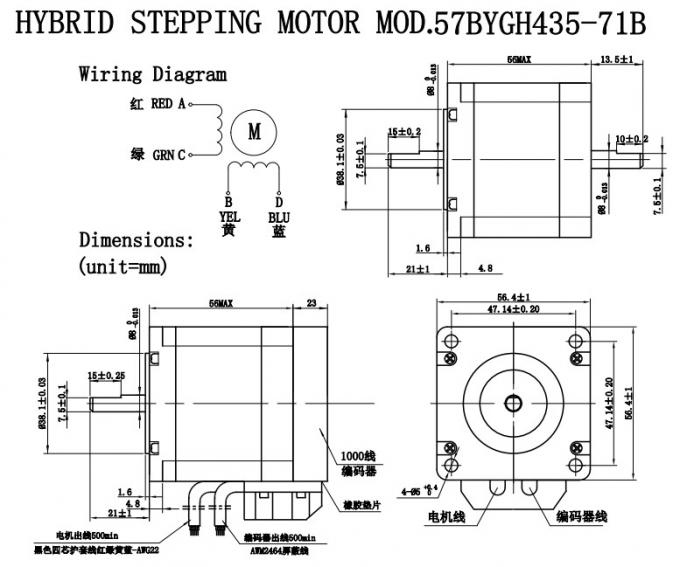

Mechanical Dimension Of Hybrid Stepper Motor
Product Range Of TB-Motor
Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

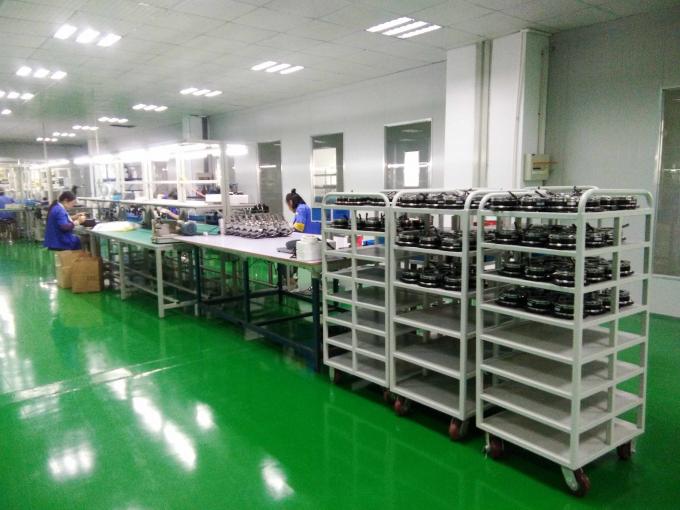

Factory Scale
CNC Center
Inspection Equipment
Packing&Delivery
