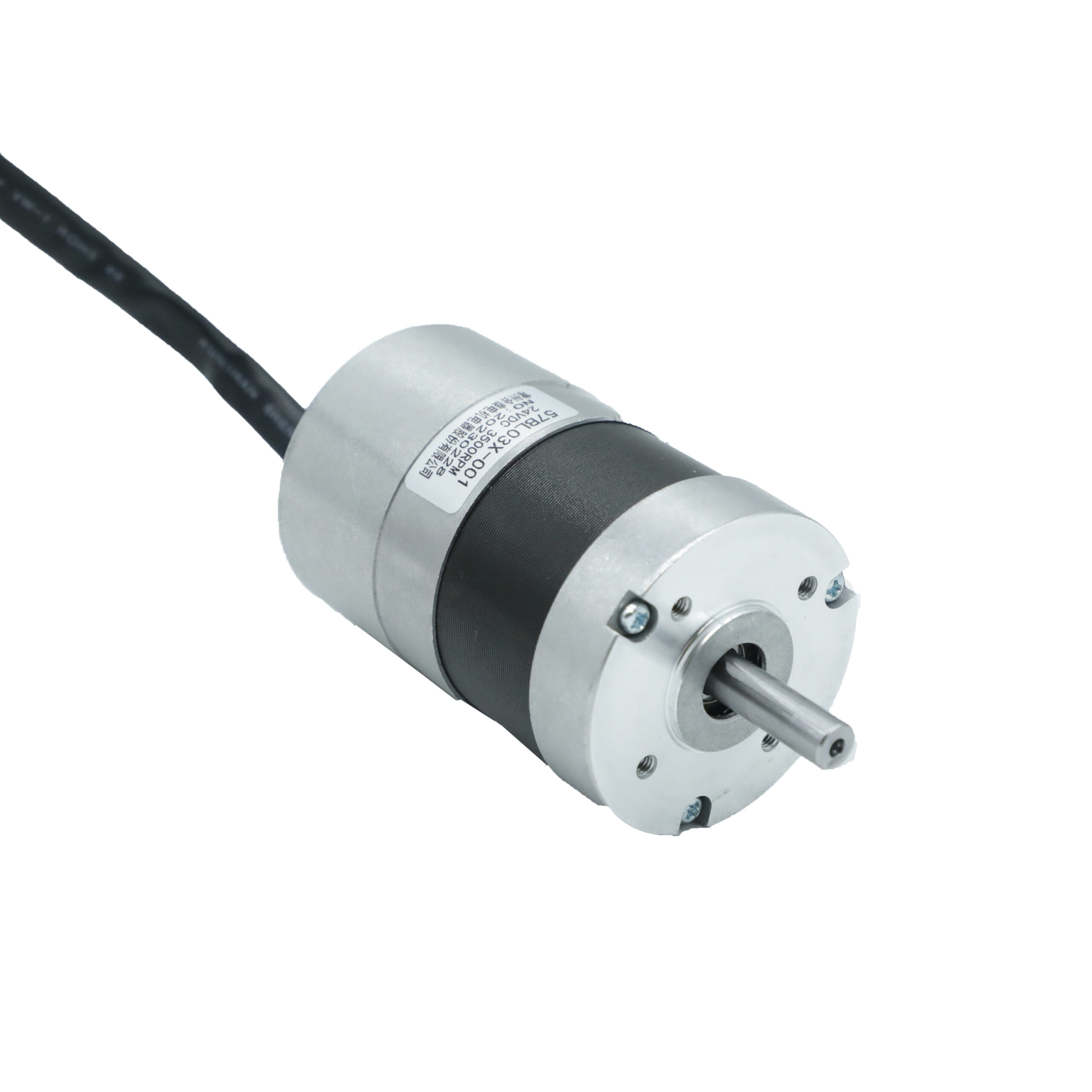

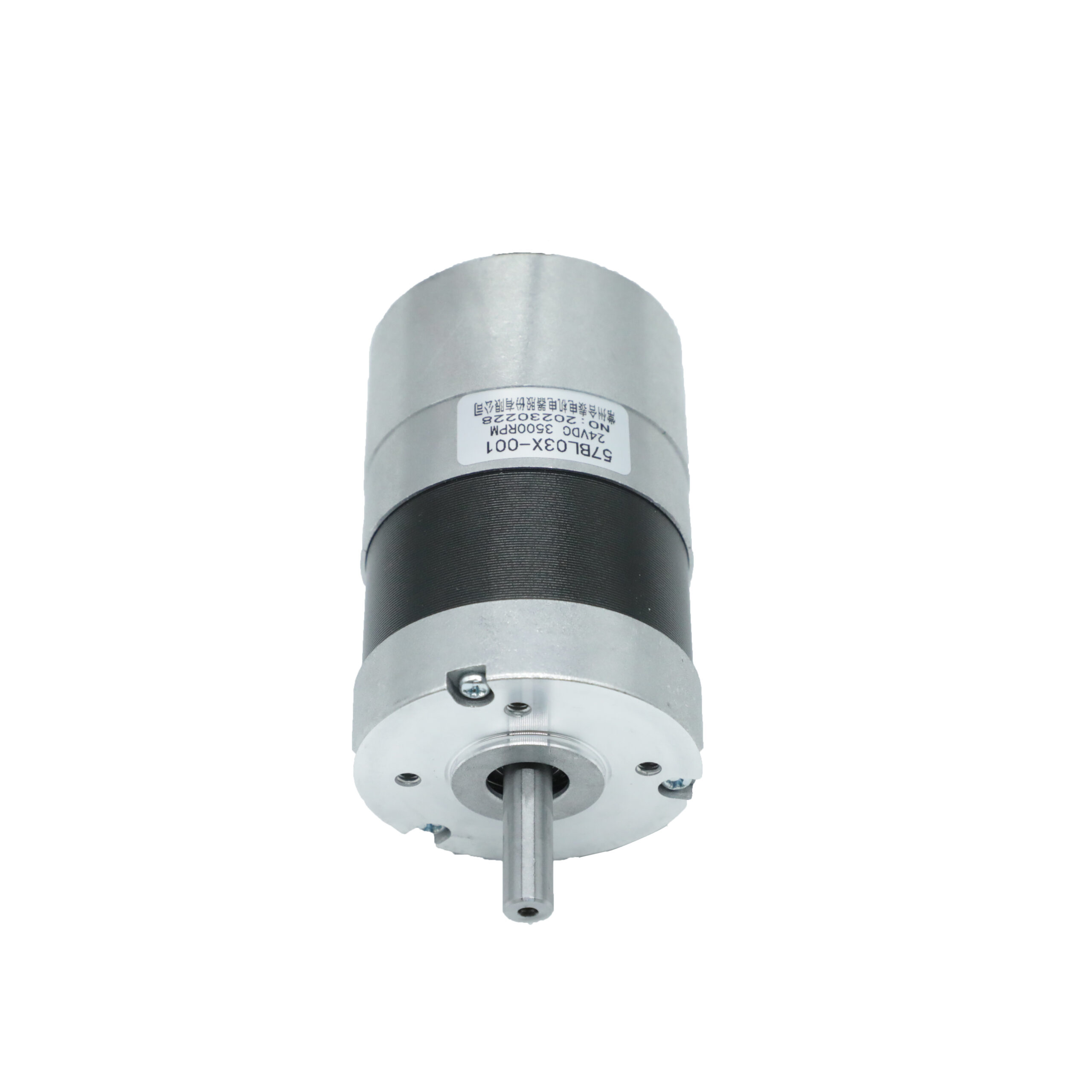

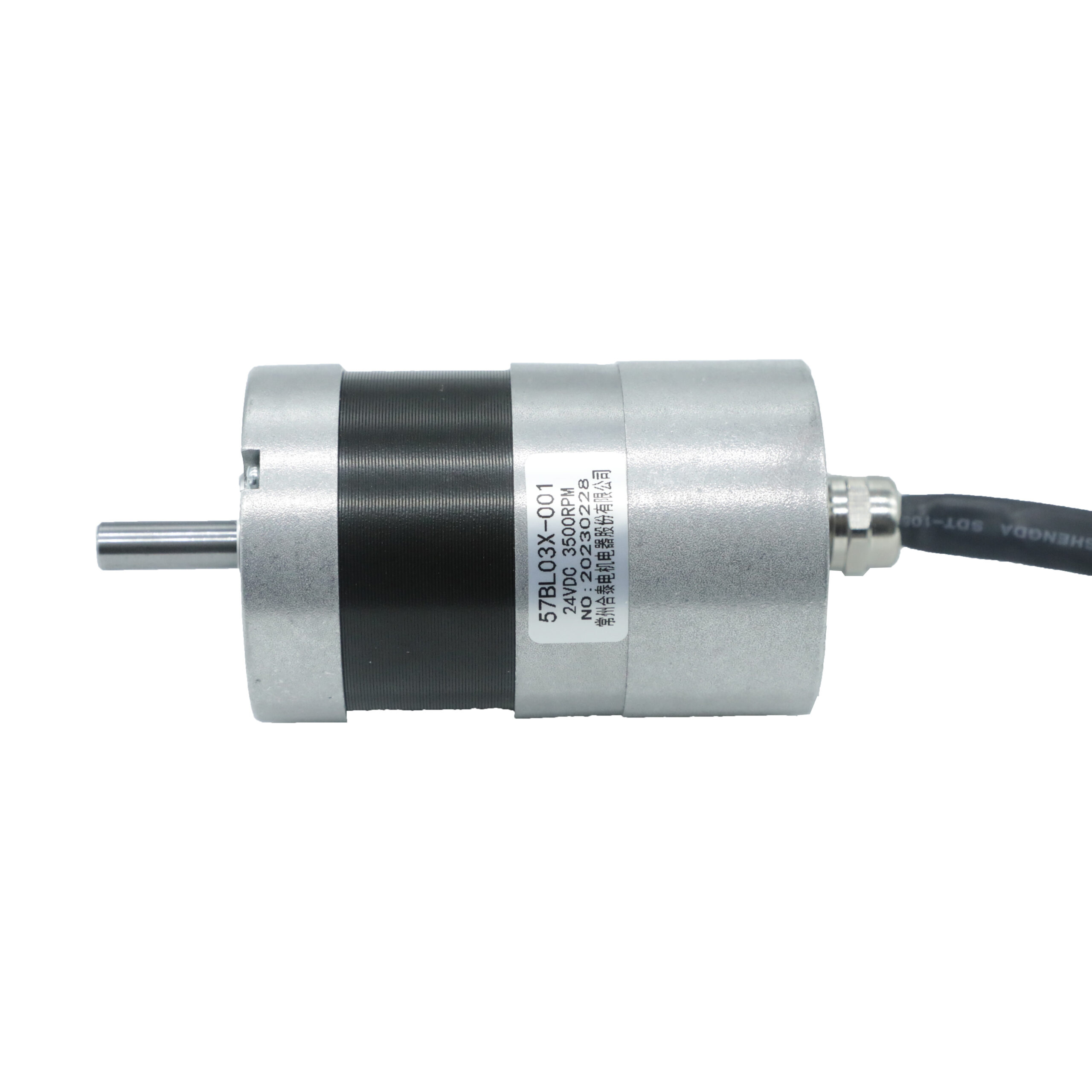

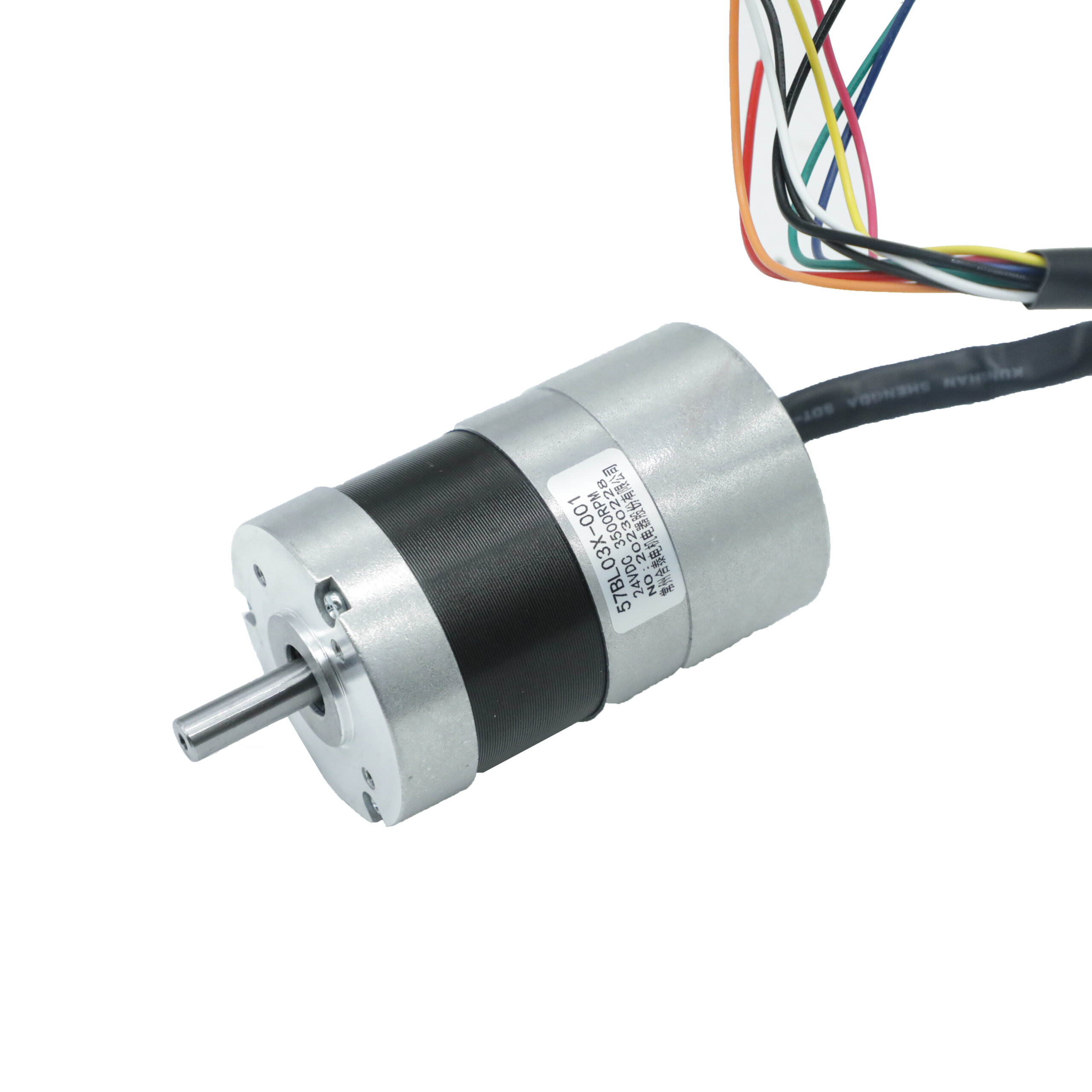

Nema23 Brushless Dc Motor 0.18N.M 24V 3500RPM 57BL03X-001 With Integrated Driver
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 57BL03X-001 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Brushless DC Motor | No Of Poles | 4 Poles |
|---|---|---|---|
| No.of Phase | 3 Phase | Rated Voltage | 24V |
| Rated Speed | 3500 Rpm | Rated Power | 66W |
| Resisitance | 2.6 OHMS | Rated Torque | 0.18 N.m |
| No Load Current | 1 A | Insulation Class | B |
| High Light | Brushless Dc Motor 0.18Nm,57BL03X-001 Brushless Dc Motor,Integrated Driver Nema23 DC Motor | ||
Product Description
Nema23 Brushless Dc Motor 0.18N.m 24V 3500RPM 57BL03X-001 with integrated driver
Motor brakes are usually divided into power-off brakes and power-on brakes (electromagnetic power-off brakes or non-excitation action brakes). In short, the difference between the two is mainly whether the motor brake works when the power is on or off, and the choice of the motor brake is mainly determined according to the customer’s use requirements.
The working principle of the motor energized brake: After the motor is energized, the magnetic coil inside the brake works, and the electromagnetic force attracts the brake pads. At this time, the brake pads release the brake disc, and the motor drive shaft drives the brake disc to run normally or start. When the current of the electromagnetic brake is cut off, the brake pads are separated from the brake disc, and the brake disc, the brake pads and the flange are run-in, and the running transmission shaft can stop quickly at this time.
The working principle of the power-off brake is: its structure is that the coil spring presses the brake pads, and the friction force of the brake pads is used to generate braking torque. When the brake disc is energized, the armature pressing the brake pad will compress the coil spring and be attracted by the excitation core, the brake will be released and the motor will run normally. If the excitation current is cut off, the pressure of the coil spring will cause the armature to press the brake pad. Under the action of the spring force, friction will be generated between the brake disc, the base and the armature, and then the transmission shaft will be braked through the gear sleeve. will move.
Specification of motor
Product Name: | Brushless Motor |
Dielectric Strength: | 500V AC 1minute |
Ambient Temperature: | -20℃~50℃ |
Insulation resistance: | 100MΩ Min.500V DC |
Voltage(VDC): | 24(VDC) |
Power(W): | 66 |
Rated Speed(RPM): | 3500 |
Rated Torque(N.M): | 0.18 |
Rated Current(A): | 1 |

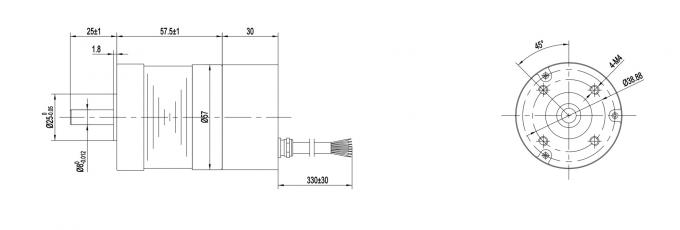

Mechanical Dimension Of Brushless DC Motor
Product Range Of TB-Motor
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.
Production Process
CNC Center
Packing&Delivery
Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition.
