Nema23 High Quality Integrated Stepper Motor 4 Wires 57mm

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	57BYGH
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	28-31 DAYS
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000 PCS/MONTH

GET AN ESTIMATE NOW

Product Details

Product Name	Integrated Stepper Motor	Step Angle	1.8 °
Hoiding Torque	15 Kg.cm	Resistance	0.5 Ω/phase
Induction	1.8 MH/Phase	Step Accuracy	± 5%
Temperature Rise	80 ℃ Max	Ambient Temperature	-20℃~+50℃
Insulation Resistance	100MΩ Min.500 VDC	Dielectric Strength	500VAC 1 Minute
MAX Radial Force	75N (10mm From Front Flange)	MAX Axial Force	15N
High Light	Nema23 Integrated Stepper Motor,57mm 4 Wires Integrated Stepper Motor,1.8Deg Nema23 Stepper Motor

Product Description

Factory Bulk Sale 57mm Nema23 High Quality Integrated Stepper Motor 4 Wires

The ADVANTAGE of Integrated Stepper Motor:

The motor 57BYGH was consist of a nema17 stepper motor and a driver, which is a kind of Integrated Pulse open-loop stepper motor.

The advantages of the integrated step motors are user-friendly, space-saving, high torque at low speeds, and Low vibration, low noise, smooth operation.

Electrical characteristics

Explanation	IO57
	Minimum Value	Typical Value	Maximal Value	Unit
Continuous output current	1.0	–	5.6	A
Power Supply Voltage (DC)	15	24/36	50	Vdc
Control signal input current	6	10	16	mA
Control signal input current	–	5	–	Vdc
Minimum time width of pulse high level	1.5	–	–	US
Overvoltage point	52			Vdc
Step frequency	0	–	200	KHz
Insulation Resistance	100			MΩ

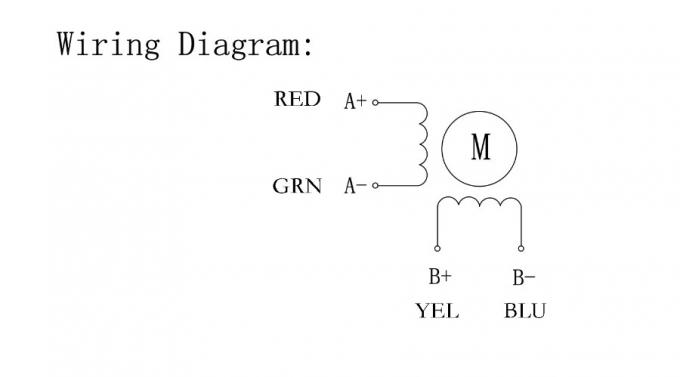

Wiring Diagram

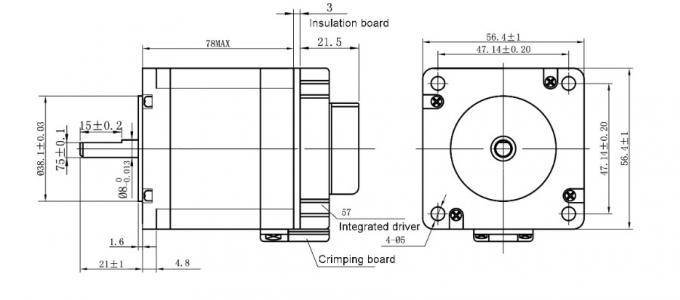

Mechanical Dimension Of Integrated Stepper Motor

Product Range Of TB-Motor

Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Assembly Line Of Stepper Motor
