Nema23 Hybrid Stepper Motor 6 Lead Wire 3.3V 3.0A 16kg.Cm

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	57BYGH801-01
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	28-31 DAYS
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000 PCS/MONTH

GET AN ESTIMATE NOW

Product Details

Product Name	Hybrid Stepper Motor	Step Angle	1.8 °
Lead Wire	6	Holding Torque	16 Kg.cm
Rated Voltage	3.3V	Rated Current	3.0A
Inductance	2.5mH	Resistance	1.1Ω
Motor Height	84 Mm	Motor Weight	1.13 Kg
High Light	16kg.Cm Hybrid Stepper Motor,3.3V 3.0A Hybrid Stepper Motor,84mm Nema 23 Stepper Motor

Product Description

Nema23 hybrid stepper motor 6 lead wire 3.3V 3.0A 16kg.cm factory direct sale high quality stepper motor

Application areas of stepper motors
①Not only the electrode must be driven to run, but the driving signal must be a pulse signal. When there is no pulse, the stepper motor will stop. If a proper pulse signal is added, the speed of rotation will be proportional to the frequency of the pulse at a certain angle (called the step angle).

②The stepping angle of the Tamron version of the stepping motor is 7.5 degrees, and one circle is 360 degrees, which requires 48 pulses to complete.

③The stepper motor has the superior characteristics of instant start and rapid stop.

④Change the sequence of pulses, you can easily change the direction of rotation.

Therefore, at present, printers, plotters, robots and other equipment are powered by stepper motors.

Electrical Specification Of Hybrid Stepper Motor

Product Name	Hybrid Stepper Motor
Step Accuracy	± 5%
Dielectric Strength	500V AC 1minute
Ambient Temperature	-20℃~50℃
Insulation resistance	100MΩ Min.500V DC
Step Angle	1.8°
Lead wire	6
Voltage (V)	3.3
Current (A/Phase)	3.0
Holding Torque (Kg.cm)	16 Kg.cm

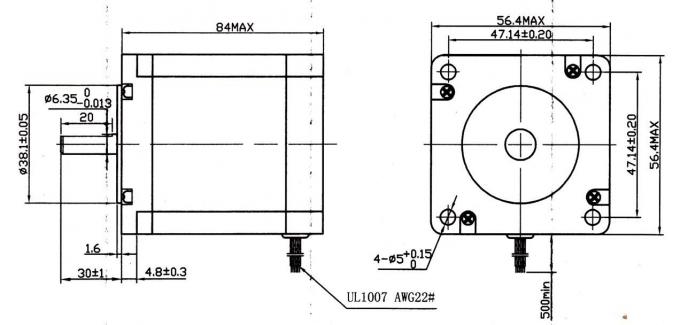

Mechanical Dimension Of Hybrid Stepper Motor

Experienced Manufacturer
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
