Nema24 Low Noise Hybrid Stepping Motor 60BYGH502-03A

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	60BYGH502-03A
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	28-31 DAYS
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000 PCS/MONTH

GET AN ESTIMATE NOW

Product Details

Product Name	Hybrid Stepper Motor	Step Angle	1.8 °
Lead Wire	4	Rated Voltage	5.32V
Rated Current	1.4A	Resistance	3.8Ω
Inductance	10mH	Holding Torque	12.5 Kg.cm
Motor Height	64 Mm	Motor Weight	1.00 Kg
High Light	Low Noise Hybrid Stepping Motor,Nema24 Hybrid Stepping Motor,ROHS Nema24 Stepper Motor

Product Description

Hetai nema24 60BYGH502-03A cheap price low noise hybrid stepper motor stepping motor for bulk sale

At the beginning of the 20th century, stepper motors were widely used in automatic telephone exchanges. As Western capitalist powers scrambled for colonies, stepper motors found widespread use in stand-alone systems such as ships and aircraft that lacked AC power. The invention of the transistor in the late 1950s was also gradually applied to stepping motors, making digital control easier. After the 1980s, due to the appearance of cheap microcomputers with a multi-functional attitude, the control methods of stepper motors became more flexible and diverse.

Electrical Specification Of Hybrid Stepper Motor

Product Name	Hybrid Stepper Motor
Step Accuracy	± 5%
Dielectric Strength	500V AC 1minute
Ambient Temperature	-20℃~50℃
Insulation resistance	100MΩ Min.500VDC
Step Angle	1.8°
Lead wire	4
Voltage (V)	5.32
Current (A/Phase)	1.4
Holding Torque (Kg.cm)	12.5 Kg.cm

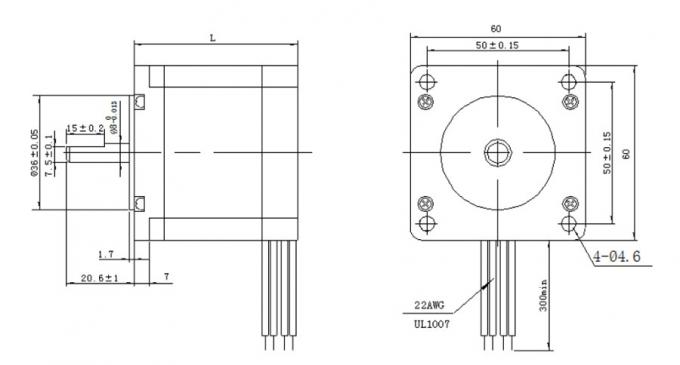

Mechanical Dimension Of Hybrid Stepper Motor

Experienced Manufacturer

Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Product Range Of TB-Motor

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.

Different reduction gearboxs
