NEMA42 110mm 1.2 ° Step Angle 3 Lead Wire 20V 6.9A 20N.M 22mH Hybrid Stepper Motor

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	110BYGH350D-001
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	28-31 DAYS
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000 PCS/MONTH

GET AN ESTIMATE NOW

Product Details

Product Name	Hybrid Stepper Motor	Step Angle	1.2 °
Lead Wire	3	Rated Voltage	20.0V
Rated Resistance	2.9Ω	Rated Current	6.9A
Inductance	22.0 MH	Holding Torque	20 N.M
Motor Height	216 Mm	Motor Weight	11.7 Kg
High Light	22mH Hybrid Stepper Motor,NEMA42 Hybrid Stepper Motor,110mm 3 Lead Wire Stepper Moto

Product Description

NEMA42 110mm 1.2 ° step angle 3 lead wire 20V 6.9A 20N.M 22mH hybrid stepper motor

Hybrid stepper motors are divided into two-phase, three-phase and five-phase: the two-phase step angle is generally 1.8 degrees and the five-phase step angle is generally 0.72 degrees. The increase of the step angle decreases and the precision improves. This kind of stepper motor is the most widely used. The hybrid stepper motor combines the advantages of both reactive and permanent magnet stepper motors: the number of pole pairs is equal to the number of rotor teeth, which can be changed in a wide range according to needs; the winding inductance varies with
Small changes in rotor position are easy to achieve optimal operation control; the axial magnetization magnetic circuit uses new permanent magnet materials with high magnetic energy product, which is conducive to the improvement of motor performance; the rotor magnetic steel provides excitation; there is no obvious in the entire operating area oscillation.

Electrical Specification Of Hybrid Stepper Motor

Product Name	Hybrid Stepper Motor
Step Accuracy	± 5%
Dielectric Strength	500V AC 1minute
Ambient Temperature	-20℃~50℃
Insulation resistance	100MΩ Min.500VDC
Step Angle	1.2°
Lead wire	3
Voltage (V)	20.0
Current (A/Phase)	6.9
Holding Torque (N.M)	20

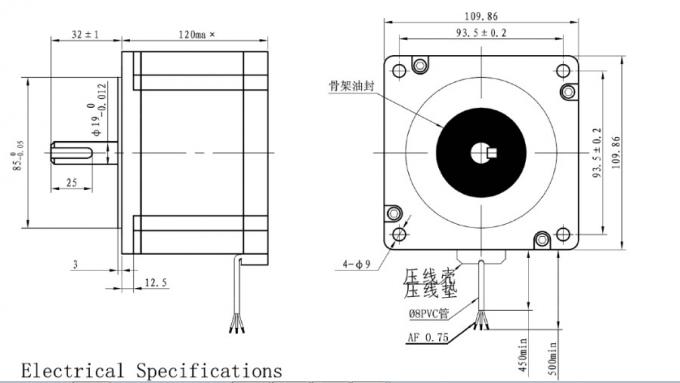

Mechanical Dimension Of Hybrid Stepper Motor

Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Product Range Of TB-Motor

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.
