Outer Diameter 22 mm 24V 84:1 Micro DC Brush Motor Gearbox Space Saving
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 22PG2032-XXX-84K |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000pcs/month |
Leave a Message
Product Details
| Product Name | Dc Brush Gear Motor | Model | 180&270 |
|---|---|---|---|
| Gearbox Housing Material | Powdery Metallurgy | Rated Voltage | 24 V |
| Motor Speed | 5000 RPM | Rated Speed (rpm) | 60 RPM |
| Reduction Ratio | 84:1 | Max Radial Load | ≤35N (10mm From Front Flange) |
| Shaft Axial Load | ≤15N | Continuous Current | ≤0.5A |
| High Light | 24V Micro DC Brush Motor Gearbox,84:1 DC Brush Motor Gearbox,22MM DC Brush Gear Motor | ||
Product Description
Outer Diameter 22 mm 24V 84:1 Micro DC Brush Motor Gearbox Space Saving
Hetai always put customer needs in the first place. Not only supplying quality product, we believe to help customer make better product is the most important mission.
In BLDC motor, stator and rotor fluxes maintain constant angle between them similar to dc motor. Whereas BLDC motor has rotating fluxes and dc motor has stationery fluxes. That’s why BLDC motor is called a DC motorDC motors take electrical power through direct current, and convert this energy into mechanical rotation. DC motors use magnetic fields that occur from the electrical currents generated, which powers the movement of a rotor fixed within the output shaft.
Electrical Specification
Model | 22 MM Brush gear motor |
Rated Voltage (V) | 24 |
Gearbox Housing Material | Powdery Metallurgy |
Rated Speed (RPM) | 60 |
Motor Speed(RPM) | 5000 |
Reduction Ratio | 1:84 |
Motor SIze(MM) | 22*22*54 |
*Products can be customized by special request.

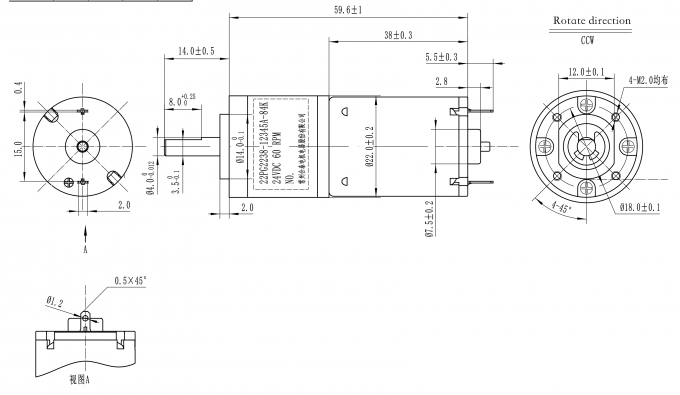

Mechanical Dimension
22MM GEARBOX PART Electrical Specification:
| Housing material | Bearing at output | Radial load(10mm from flange)N | Shaft axial load(N) | Shaft press-fit force max(N) | Radial play of shaft(mm) | Thrust play of shaft(mm) | Backlash at no-load (°) |
| Powder metallurgy | Porous bearing | ≤35 | ≤15 | ≤80 | ≤0.08 | ≤0.4 | ≤1.5 |
| Reduction ratio | Rated tolerance torque (Nm) | Max momentary tolerance torque (Nm) | Efficiency% | Length (mm) | Weight(g) | Number of gear trains |
| 1/4 | 0.1 | 0.3 | 81% | 13.9 | 29 | 1 |
| 1/4.75 | ||||||
| 1/16 | 0.4 | 1.2 | 72% | 32.4 | 52 | 2 |
| 1/19 | ||||||
| 1/22 | ||||||
| 1/26 | ||||||
| 1/76 | 0.8 | 2.4 | 65% | 43.9 | 73 | 3 |
| 1/88 | ||||||
| 1/104 | ||||||
| 1/121 | ||||||
| 1/144 |

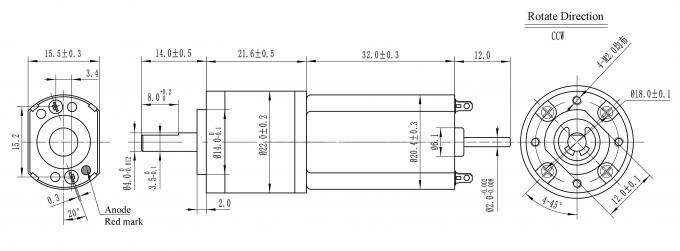

Mechanical Dimension
Application:
*Wheel drives
*Track drives
*Conveyors
*Slew drives
*Hoist drives
*Mixing
*Winch drives
*Pumps
*Coil tubing injectors
*Auger & drilling drives
*Cutter head drives
Gearbox Production
 |  |  |

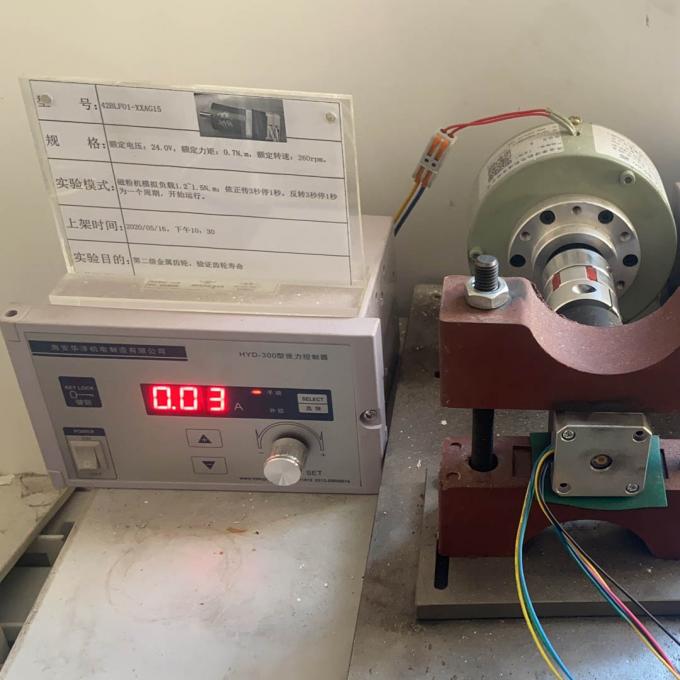

| Gearbox Assmenbly | Mass Produstion | Gearbox Motor Aging Test |

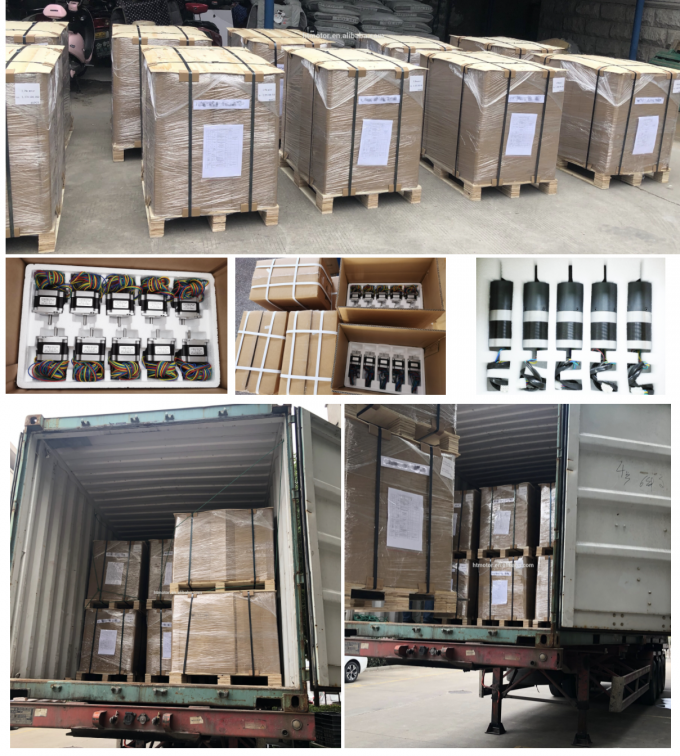

Packing&Delivery
