Permanent Magnet Bldc Motor NEMA 17 24vdc 25w

Place of OriginChina
Brand NameTB-Motor
CertificationCE ROHS ISO
Model Number42BLY02-001
Minimum Order Quantity50
PriceUSD
Packaging DetailsCarton with Inner Foam Box, Pallet
Delivery Time25 DAYS
Payment TermsL/C, D/P, T/T, Western Union, MoneyGram
Supply Ability10000 PCS/MONTH
GET AN ESTIMATE NOW

Leave a Message

Product Details



Product NameBrushless DC MotorHall Effect Angle120° Electrical Angle
Insulation ClassBWinding TypeStar
Dielectric Strength600VAC 1 MinuteAmbient Temperature-20℃~+50℃
Insulation Resistance100MΩ Min.500VC DCIP LevelIP40
Max Radial Force15N (10mm From Front Flange)Max Axial Force10N
High Light
nema 17 24vdc,permanent magnet dc motor 24v,Bldc motor 24v 25w

Product Description



42BLY02-001 NEMA 17 customizable high quality small high speed micro brushless dc motor

-Resistance: 3.5OHMS

-No-load speed: 5100 RPM

-Dielectric Strength: 600VAC 1 minute

-IP level: IP40

Without brushes, brushless motors wear much less quickly than brushed DC motors, they operate with far less audible and electrical noise, and they are capable of much higher speeds.

Electrical Specification:

Model
SpecificationUnit42BLY02-001
Number Of PhasesPhase3
Number Of PolesPoles4
Rated VoltageVDC24
Rated SpeedRpm3000±300
Rated CurrentA0.45
Rated TorqueN.m0.08
Rated PowerW25
Peak TorqueN.m0.24
Torque ConstantN.m/A0.045
Back EMF constantV/kRPM4.7
Body Lengthmm60
WeightKg0.38



*Products can be customized by special request.
*Products can match gearbox 36,42 mm



Wiring Diagram

      ELECTRICAL CONNECTION TABLE
FUNCTIONCOLOR
+5VREDUL1007 26AWG
HALL AYELLOW
HALLBGREEN
HALLCBLUE
GNDBLACK
PHASE AYELLOWUL3265 22AWG
PHASE BGREEN
PHASE CBLUE

Mechanical Dimension

Permanent Magnet Bldc Motor NEMA 17 24vdc 25w 0

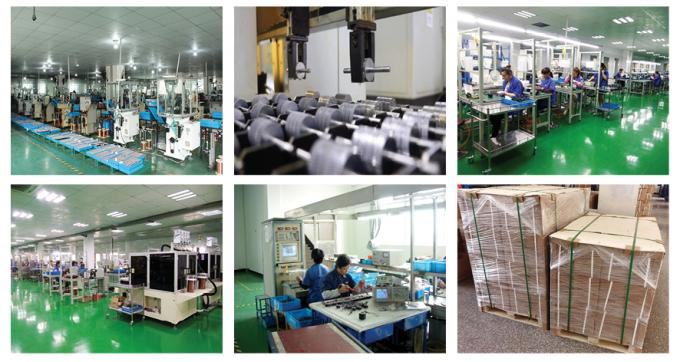

Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Permanent Magnet Bldc Motor NEMA 17 24vdc 25w 1

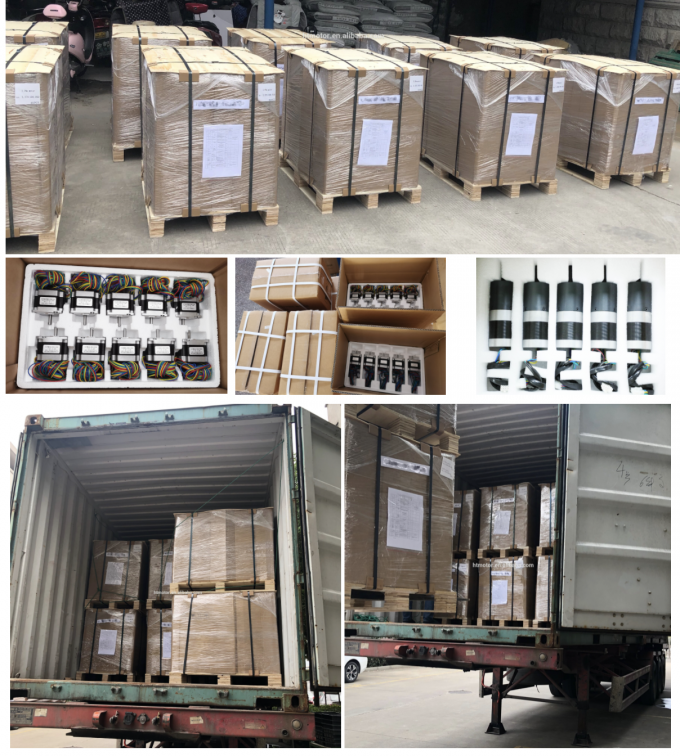

Packing & delivery
