PG28A-PM-HT Powder Metallurgy Helix Teeth Planetary Reducer Gearbox Anti Seismic
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | PG28A-PM-HT |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000pcs/month |
Leave a Message
Product Details
| Product Name | Planetary Gearbox | Material | Powder Metallurgy |
|---|---|---|---|
| Type Of Teeth | Helix Teeth | Mechanical Dimensions | 28mm |
| Reduction Ratio | 14/30/64/107 | Gearbox Length | 29.8/40.0 |
| Number Of Gear Trains | 1 | Momentary Tolerance Torque （Nm） | 1.5/5 |
| Efficiency（%） | 72/65 | ||
| High Light | Anti Seismic Planetary Reducer Gearbox, Helix Teeth Planetary Gearbox, ROHS Planetary Reducer Gearbox | ||
Product Description
PG28A-PM-HT 28mm diameter Powder metallurgy Helix Teeth Planetary gearbox
1. Give full play to the advantages of stability, security, and reliability
The star reducer can give full play to the advantages of stability, safety, and reliability, especially to meet the requirements of various complex working environments, and can also reduce the speed, increase the torque, and reduce the load. Furthermore, there are no special maintenance requirements to ensure an automated operating process.
2. Strong anti-seismic effect
The planetary reducer has a precise transmission function during work, especially has a strong anti-seismic function, and has an extremely long service life during work. Because we don’t need special maintenance, we can reduce the cost of use and avoid unexpected failures during work.
In short, the planetary reducer can play the performance of these important advantages in operation and meet the requirements of various working environments.

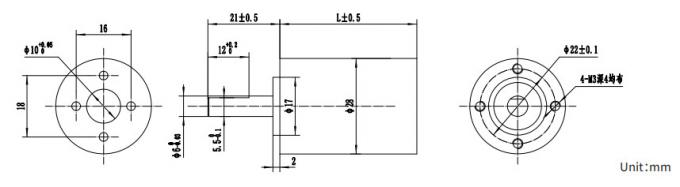

Mechanical Dimension
Gearbox Specification:
| Reduction Ratio | Exact Reduction Ratio | Rated Tolerance Torque (Nm) | Momentary Tolerance Torque (Nm) | Efficiency(%) | Length (mm) | Weight (g) | Number of gear trains |
| 1/14 | 1/14 | 0.5 | 1.5 | 72% | 29.8 | 92 | 1 |
| 1/30 | 1/30 | ||||||
| 1/64 | 1/64 | 1.8 | 5 | 65% | 40.0 | 105 | 1 |
| 1/107 | 1/107 |
Different reduction ratios, torque, weight, and length.
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicated to providing professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly lines, Automatic cylindrical grinders, and CNC machining centers as well.
Market Range Of TB-Motor
Product Range Of TB-Motor
Production Process
Based on all these advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors, and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… Hetai also sends its products to the USA, Europe, Southeast Asia and all-around China
Different reduction gearboxes
Engineering plastic gearbox: low cost and low noise
Powder metallurgy gearbox:long life and low noise
Zinc alloy gearbox: low cost
Right Angle Gearbox
L type gearbox
Worm Gearbox
High-quality Raw Materials
Gearbox Assembled
Gearbox Material Placement
