PG36S-PM-ST Powder Metallurgy 36mm Dia Planetary Reducer Gearbox Match 42mm Motor
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | PG36S-PM-ST |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000pcs/month |
Leave a Message
Product Details
| Product Name | Planetary Gearbox | Material | Powder Metallurgy |
|---|---|---|---|
| Structure | Split | Type Of Teeth | Straight Teeth |
| Mechanical Dimensions | 36mm | Gearbox Ratio | 3.7/5.18/13.76/19.22/26.83/51/71.3/100/139 |
| Gearbox Length(mm) | 28/35.5/43 | Number Of Gear Trains | 1/2/3 |
| Rated Tolerance Torque（Nm） | 2/3/4 | Momentary Tolerance Torque （Nm） | 4/5/6 |
| Efficiency | 81%/72%/65% | ||
| High Light | 36mm Planetary Reducer Gearbox, Metallurgy Split Planetary Reducer Gearbox,42mm Motor Planetary Speed Reducer | ||
Product Description
PG36S-PM-ST Powder Metallurgy 36mm dia Planetary Reducer Gearbox match 42mm motor
The planetary reducer gearbox is a power transmission mechanism that uses the speed converter of the gear to reduce the number of revolutions of the motor to the desired number of revolutions and obtain a larger torque mechanism. The gear with a small number of teeth on the transmission shaft of the planetary reducer meshes with the large gear on the output shaft to achieve the purpose of deceleration. Ordinary reducers also have several pairs of gears meshing with the same principle to achieve the ideal deceleration effect. The ratio of the number of teeth of the large and small gears is the transmission ratio.

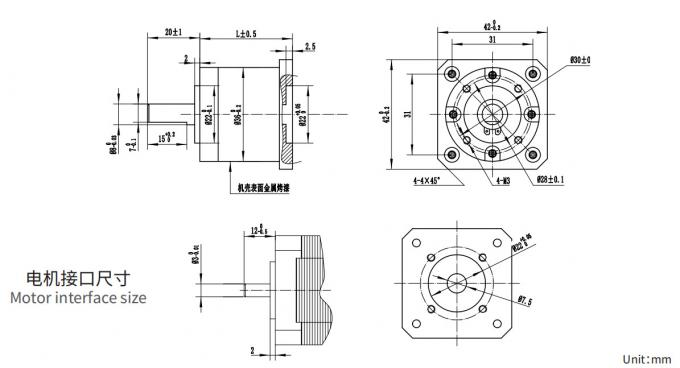

Mechanical Dimension
Gearbox Specification:
| Reduction Ratio | Exact Reduction Ratio | Rated Tolerance Torque (Nm) | Momentary Tolerance Torque (Nm) | Efficiency(%) | Length (mm) | Weight (g) | Number of gear trains |
| 1/3.7 | 1/3.71 | 2 | 4 | 81% | 28 | / | 1 |
| 1/5.18 | 1/5.18 | ||||||
| 1/13.76 | 1/13.76 | 3 | 5 | 72% | 35.5 | / | 2 |
| 1/19.22 | 1/19.22 | ||||||
| 1/26.83 | 1/26.83 | ||||||
| 1/51 | 1/51.03 | ||||||
| 1/71.3 | 1/71.3 | 4 | 6 | 65% | 43 | / | 3 |
| 1/100 | 1/99.55 | ||||||
| 1/139 | 1/139 |
Different reduction ratio, torque, weight and length.
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Product Range Of TB-Motor
Production Process
Different reduction gearboxs
Engineering plastic gearbox: low cost and low noise
Powder metallurgy gearbox:long life and low noise
Zinc alloy gearbox: low cost
Right Angle Gearbox
L type gearbox
Worm Gearbox
High-quality Raw Materials
Gearbox Assembled
Gearbox Material Placement
