PG42A-PM-HT Powder Metallurgy Helix Teeth Planetary Reducer Gearbox 42mm Dia
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | PG42A-PM-HT |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000pcs/month |
Leave a Message
Product Details
| Product Name | Planetary Gearbox | Structure | All-in-one |
|---|---|---|---|
| Material | Powder Metallurgy | Gearbox Ratio | 4/6/15/18/25/36/54/65/90/112/155/216 |
| Type Of Teeth | Helix Teeth | Mechanical Dimensions | 42mm |
| Gearbox Length(mm) | 32.5/46.3/60.1 | Number Of Gear Trains | 1/2/3 |
| Momentary Tolerance Torque （Nm） | 3.0/12/25/30 | Efficiency | 81%/72%/65% |
| High Light | 42mm Dia Planetary Reducer,25nm Planetary Reducer Gearbox,Helix Teeth Planetary Gearbox Reducer | ||
Product Description
PG42A-PM-HT Powder Metallurgy 42mm dia Helix Teeth Planetary Reducer Gearbox
The planetary reducer gearbox is a power transmission mechanism that uses the speed converter of the gear to reduce the number of revolutions of the motor to the desired number of revolutions and obtain a larger torque mechanism. The gear with a small number of teeth on the transmission shaft of the planetary reducer meshes with the large gear on the output shaft to achieve the purpose of deceleration. Ordinary reducers also have several pairs of gears meshing with the same principle to achieve the ideal deceleration effect. The ratio of the number of teeth of the large and small gears is the transmission ratio.

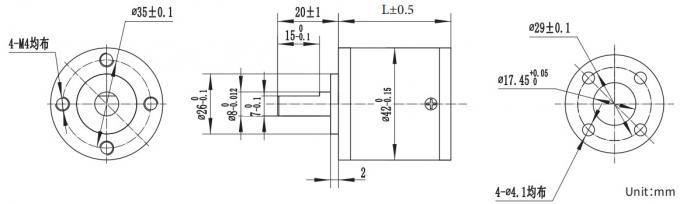

Mechanical Dimension
Gearbox Specification:
| Reduction Ratio | Exact Reduction Ratio | Rated Tolerance Torque (Nm) | Momentary Tolerance Torque (Nm) | Efficiency(%) | Length (mm) | Weight (g) | Number of gear trains |
| 1/4 | 1/4.33 | 1.0 | 3.0 | 81% | 32.5 | 170 | 1 |
| 1/6 | 1/6 | ||||||
| 1/15 | 1/15.24 | 4.0 | 12 | 72% | 46.3 | 207 | 2 |
| 1/18 | 1/18.75 | ||||||
| 1/25 | 1/25.98 | ||||||
| 1/36 | 1/36 | ||||||
| 1/54 | 1/53.04 | 8.0 | 25 | 65% | 60.1 | 267 | 3 |
| 1/65 | 1/65.62 | ||||||
| 1/90 | 1/90.93 | ||||||
| 1/112 | 1/112.49 | ||||||
| 1/155 | 1/155.88 | ||||||
| 1/216 | 1/216 | 10.0 | 30 | 65% | 60.1 | 267 | 3 |
Different reduction ratio, torque, weight and length.
