PG56A-PM-HT Powder Metallurgy Planetary Reducer Gearbox Adapt To Nema23 Motor

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	PG56A-PM-HT
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	28-31
Payment Terms	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000pcs/month

GET AN ESTIMATE NOW

Product Details

Product Name	Planetary Gearbox	Material	Powder Metallurgy
Structure	All-in-one	Type Of Teeth	Helix Teeth
Reduction Ratio	4/6/15/18/26/47/66	Rated Tolerance Torque（N.m）	2/8/16
Momentary Tolerance Torque （Nm）	6/25/50	Efficiency	81%/72%/72%
Gearbox Length(mm)	41.3/59.6/59.6	Number Of Gear Trains	1/2/3
High Light	Powder Metallurgy Planetary Reducer Gearbox,Nema23 Motor Planetary Reducer Gearbox,Helix Teeth Nema23 Gear Reducer

Product Description

PG56A-PM-HT Powder Metallurgy Planetary Reducer Gearbox adapt to nema23 motor

Advantages of Planetary Gearboxes
1. Planetary reducer ensures flexible and reliable power transmission system
2. Planetary gearbox with multiple speed ratios and long service life
3. The planetary gearbox is small in size and light in weight
4. Unique high power density design of planetary gearbox

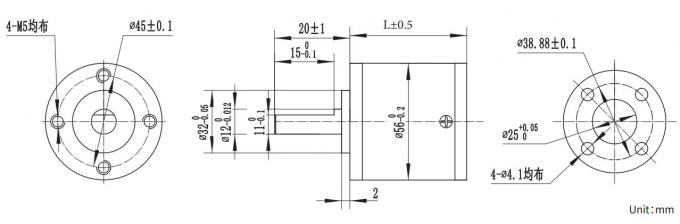

Mechanical Dimension

Gearbox Specification:

Reduction Ratio	Exact Reduction Ratio	Rated Tolerance Torque (Nm)	Momentary Tolerance Torque (Nm)	Efficiency(%)	Length (mm)	Weight (g)	Number of gear trains
1/4	1/4.33	2.0	6.0	81%	41.3	491	1
1/6	1/6
1/15	1/15.17	8.0	25	72%	59.6	700	2
1/18	1/18.77
1/26	1/25.98	16.0	50	72%	59.6	700	2
1/47	1/47.63
1/66	1/66

Different reduction ratio, torque, weight and length.

Experienced Manufacturer

Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Product Range Of TB-Motor

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.

Different reduction gearboxs
