PG65A-ZA-HT 65mm Dia Long Lifespan Helix Teeth Zinc Alloy Planetary Reducer Gearbox

Place of OriginChina
Brand NameTB-Motor
CertificationCE ROHS ISO
Model NumberPG65A-ZA-HT
Minimum Order Quantity50
PriceUSD
Packaging DetailsCarton with Inner Foam Box, Pallet
Delivery Time28-31
Payment TermsL/C, D/P, T/T, Western Union, MoneyGram
Supply Ability5000pcs/month
GET AN ESTIMATE NOW

Leave a Message

Product Details



Product NamePlanetary GearboxStructureAll-in-one
MaterialZinc AlloyType Of TeethHelix Teeth
Reduction Ratio1:6Rated Tolerance Torque(N.m)3.0
Momentary Tolerance Torque (Nm)8.0Gearbox Length(mm)79.5
Number Of Gear Trains1Efficiency81%
High Light
Zinc Alloy Planetary Reducer Gearbox,65mm Planetary Reducer Gearbox,Planetary Nema23 Reduction Gearbox



Product Description



PG65A-ZA-HT 65mm dia long lifespan Helix Teeth Zinc Alloy Planetary Reducer Gearbox

​​Planetary reducer is a high-end planetary rotation principle, the design concept is very advanced, and the structure is extremely novel. The precision is very high and it is widely used in various industries. High-speed ratio and high-efficiency single-stage transmission of planetary reducer.
The main transmission structure of the planetary gear reducer is: planetary gear, sun gear, and outer ring gear. Due to the structure of the planetary reducer, the minimum single-stage reduction is 3, and the maximum generally does not exceed 10. The number of stages of the reducer generally does not exceed 3. Compared with other reducers, the planetary reducer has high rigidity, high precision, high transmission efficiency, and high Torque, volume ratio, life-long maintenance-free and other characteristics. Because of these characteristics, most planetary reducers are installed on stepper motors and servo motors to reduce speed and increase torque. Match inertia.

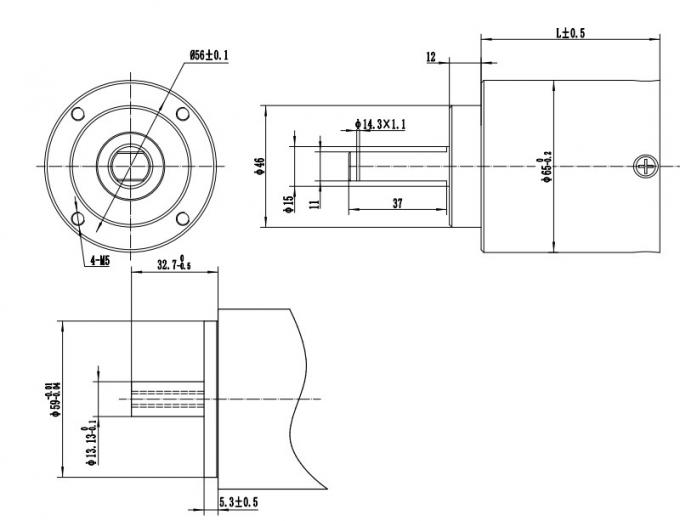

Mechanical Dimension

PG65A-ZA-HT 65mm Dia Long Lifespan Helix Teeth Zinc Alloy Planetary Reducer Gearbox 0



Gearbox Specification:

Reduction RatioExact Reduction
Ratio
Rated Tolerance Torque
(Nm)
Momentary Tolerance Torque
(Nm)
Efficiency(%)Length
(mm)
Weight
(g)
Number of
gear trains
1/61/6.433.08.081%79.55001

Different reduction ratio, torque, weight and length.



Experienced Manufacturer
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.


Product Range Of TB-Motor
pl105459856 remark

Production Process
PG65A-ZA-HT 65mm Dia Long Lifespan Helix Teeth Zinc Alloy Planetary Reducer Gearbox 3
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China



Engineering plastic gearbox: low cost and low noise

PG65A-ZA-HT 65mm Dia Long Lifespan Helix Teeth Zinc Alloy Planetary Reducer Gearbox 4



Right angle gearbox

PG65A-ZA-HT 65mm Dia Long Lifespan Helix Teeth Zinc Alloy Planetary Reducer Gearbox 5PG65A-ZA-HT 65mm Dia Long Lifespan Helix Teeth Zinc Alloy Planetary Reducer Gearbox 6



L type gearbox

PG65A-ZA-HT 65mm Dia Long Lifespan Helix Teeth Zinc Alloy Planetary Reducer Gearbox 7PG65A-ZA-HT 65mm Dia Long Lifespan Helix Teeth Zinc Alloy Planetary Reducer Gearbox 8



High-quality Raw Materials

PG65A-ZA-HT 65mm Dia Long Lifespan Helix Teeth Zinc Alloy Planetary Reducer Gearbox 9

Gearbox Material Placement

PG65A-ZA-HT 65mm Dia Long Lifespan Helix Teeth Zinc Alloy Planetary Reducer Gearbox 10



Gearbox Assembled

PG65A-ZA-HT 65mm Dia Long Lifespan Helix Teeth Zinc Alloy Planetary Reducer Gearbox 11
