Through Type Lead Screw Stepper Motor NEMA 23 3 Phase 57BYGH 6 Wires 1.8 Degree
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 57BYGHL603-01T |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Linear Step Motor | Step Accuracy | ± 5% |
|---|---|---|---|
| Temperature Rise | 80 ℃ Max | Insulation Resistance | 100MΩ Min.500VC DC |
| Ambient Temperature | -20℃~+50℃ | Dielectric Strength | 500VAC 1 Minute |
| Max Radial Force | 75N (20mm From Front Flange) | Max Axial Force | 15N |
| Resistance | 9.5Ω | Inductance | 15 MH |
| High Light | through type lead screw motor NEMA 23,Nema 23 Lead Screw,miniature stepper motor lead screw | ||
Product Description
57BYGHL603-01T NEMA23 6 wires 1.8-degree through type 3 phase linear stepper motor
57BYGHL603-01T: Through type Linear actuator
Lead Wire: 6 leads
Voltage:9.5 V
IP level: IP40
Dielectric Strength: 500VAC 1 minute
Insulation Resistance: 100MΩ Min.500VC DC
Screw info:
Tr outer diameter * lead (pitch) + thread heads
57BYGHL603-01T Tr 8*8(P2) 4 heads Through type
Electrical Specification:
Model Number | 57BYGHL603-01T |
Step Accuracy | ± 5% |
Step Angle | 1.8° |
Lead Wire | 6 |
Voltage (V) | 9.5 |
Current (A/Phase) | 1 |
Holding Torque (kg.cm) | 16 |
| Resistance (Ω/phase) | 9.5 |
| Inductance (mH/phase) | 15 |
| Motor length (MM) | 78 |
| Motor Weight(Kg) | 1 |
| Insulation Class | B |
*Products can be customized by special request.

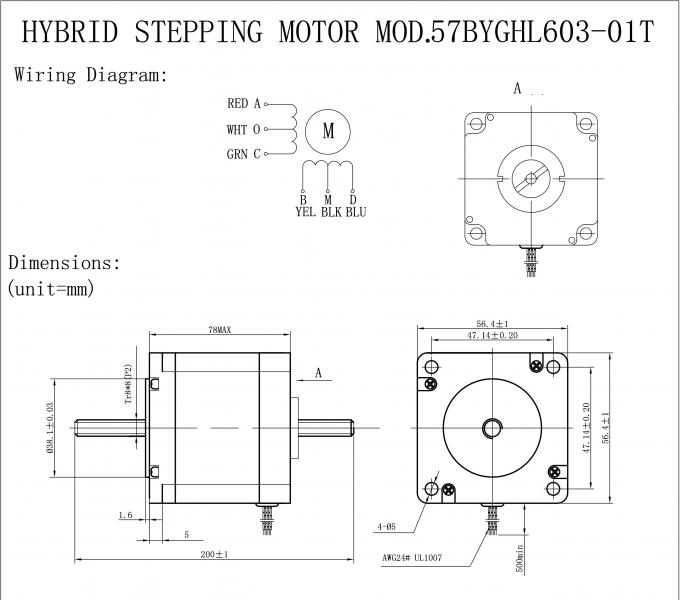

Mechanical Dimension
Specification of Other Models:
| MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (KG.CM) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 57BYGHL013-15 | 1.8 | 4 | 2.7 | 1.5 | 1.8 | 4.0 | 4.0 | 41 | 0.45 |
| 57BYGHL216-10 | 1.8 | 4 | 3.3 | 1.7 | 1.95 | 6.0 | 10.0 | 51 | 0.65 |
| 57BYGHL401-03 | 1.8 | 4 | 6.0 | 0.6 | 10.0 | 32.0 | 9.0 | 56 | 0.70 |
| 57BYGHL602-07 | 1.8 | 4 | 10.4 | 0.8 | 13.0 | 42.0 | 19.8 | 78 | 1.00 |
| 57BYGHL815-01 | 1.8 | 4 | 7.36 | 1.6 | 4.6 | 16.0 | 20.0 | 84 | 1.13 |
*Products can be customized by special request.
