Waterproof 3kw Servo Motor 1500 Rpm 14.5NM 310V 10 A F Class Oil Seal
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | ES130 3KW |
| Minimum Order Quantity | 5 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000pcs/month |
Leave a Message
Product Details
| Product Name | Servo Motor | Commutation | Brushless |
|---|---|---|---|
| Insulation Class | F | Rated Power | 3000W |
| Protection Level | IP65 | Structure | Key Shaft, Oil Seal, No Brake |
| Work Temperature | 0℃~+55℃ | Preserve Temperature | 20℃～80℃ |
| Work Or Preserve | 90%RH（No Condensation) Above Sea Level 1000m | Vibration | 5.88/S 2.10-60Hz |
| High Light | Servo Motor 3kw,Waterproof Servo Motor 1500Rpm,1500 rpm servo motor Waterproof | ||
Product Description
ES130 3KW Smooth running 14.5N.m High accuracy oil seal 1500 rpm high volt 310V F class
TB-Motor is an experienced motor manufacturer since 1999. The specialization, scale of production has ensured to manufacture of five million motors every year.
We produce AC, DC servo motor from 40mm~130mm, power from 50W~4KW. Matching with different encoder, brake and so on.
| Model | Weight | Shaft type | Shaft diameter | Feedback device |
| ES130-3kw | 15kg | Key shaft | φ22 | Multi-turn absolute encoder 17 bit |
Electrical Specification:
| Product Name: | Servo Motor |
| Rated Power (W) | 3000 |
| Rated Speed (RPM) | 1500 |
| Voltage(VDC) | 310 |
| Rated Current(A) | 10 |
| Rated Torque (N.m) | 14.5 |
| Peak Torque(N.m) | 40Nm max |
| Back EMF Constant(V/Krpm) | 89 |

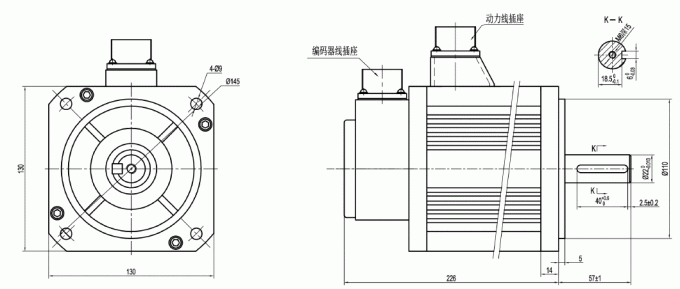

| Type | 130 | ||||
| Power | 1KW | 1.5KW | 2KW | 4KW | |
| Encoder | |||||
| L (mm) | A | ||||
| B | |||||
| L | 143.5 | 157 | 171 | 226 | |
| N | |||||
| Type | 130 | ||||
| Power | 1KW | 1.5KW | 2KW | 4KW | |
| Encoder | |||||
| Weight
| A | ||||
| B | |||||
| L | 5 | 6.09 | 7.2 | 11.4 | |
| N | |||||
A servo motor is composed of:
An electric motor: That is in charge of generating the motion through its shaft.
A control system: This system allows for control over the motor’s motion by sending electric pulses.
A drive system: It is formed by gears which may increase or decrease the speed and torque.
A potentiometer: It is connected to the central shaft, and informs at all times the angle in which the motor’s shaft is positioned.

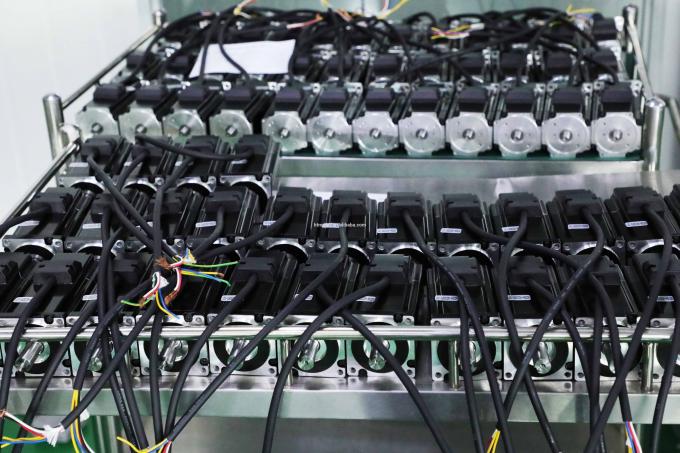

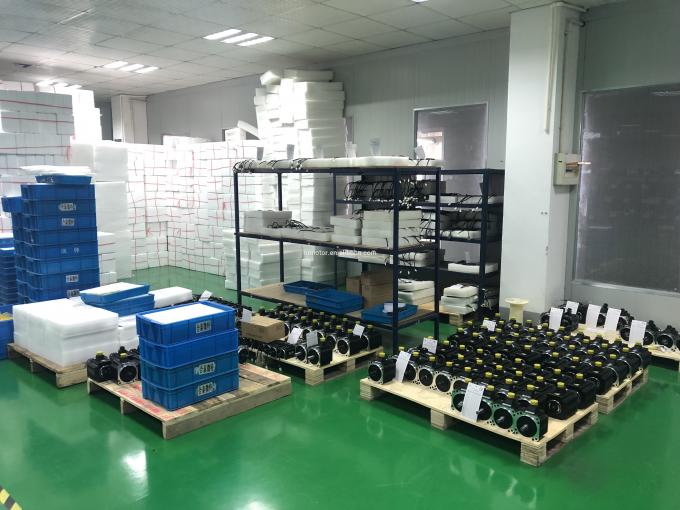

Servo workshop
Based on all these advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors, and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to the USA, Europe, Southeast Asia, and all-around China.
